Quickserver Setup; Mounting; Figure 1: Din Rail - SMC Sierra Monitor FS-QS-1010 Quickserver Start-Up Manual

4

QUICKSERVER SETUP

4.1

Mounting

The following mounting options are available:
•
Product comes with tabs for wall or surface mount. These can be snapped off if not required.
•
DIN rail mounting bracket - included in the accessory kit or ordered separately (part # FS-8915-
35-QS).
WARNING: Install only as instructed, failure to follow the installation guidelines or using screws
without the DIN rail mounting bracket could result in permanent damage to the product. If the
FieldServer is removed from the DIN rail, use the original screws to reattach. Only screws
supplied by SMC should be used in the holes found on the back of the unit when attaching the
optional DIN Rail bracket. USE OF ANY OTHER SCREWS MAY DAMAGE THE UNIT.

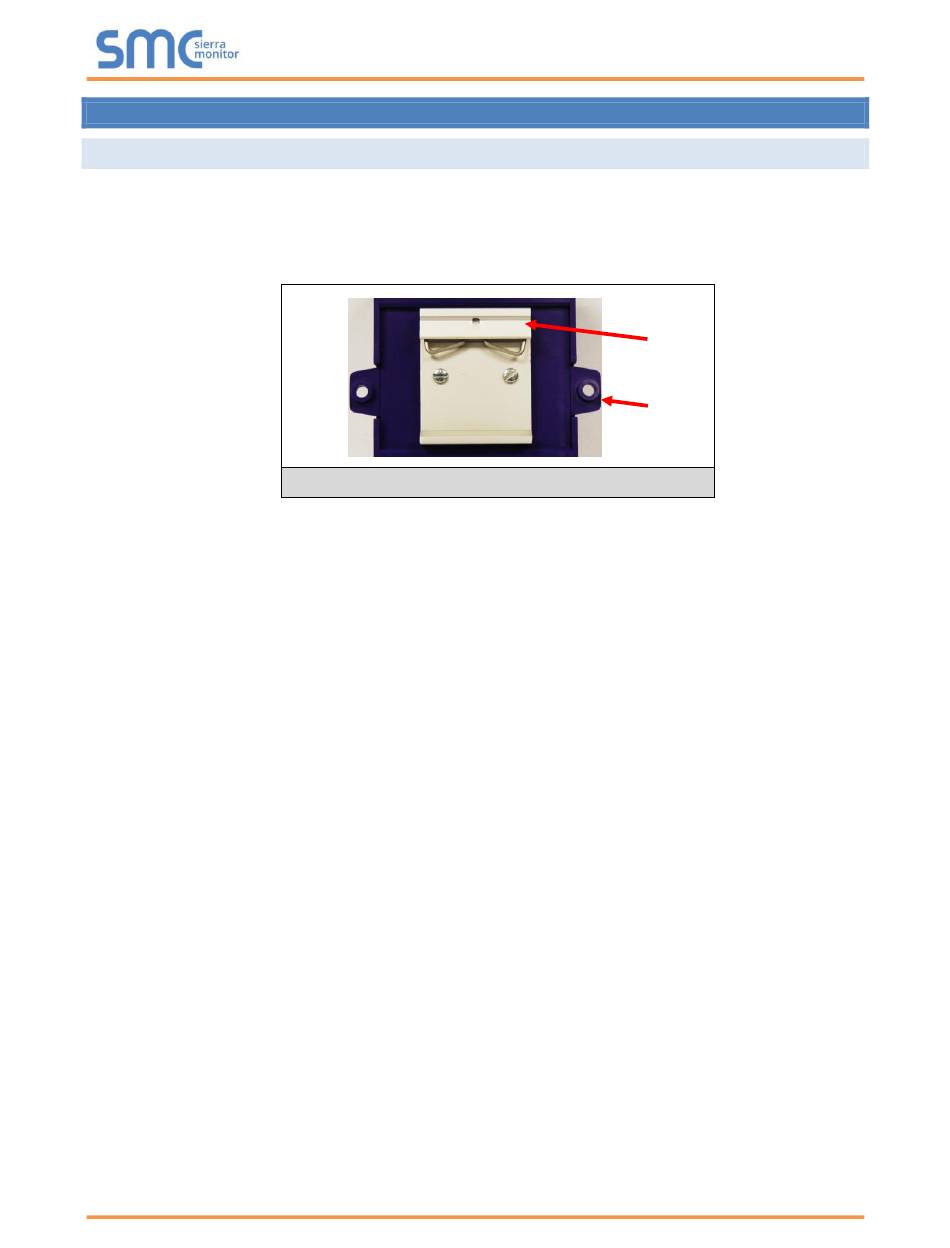

Figure 1: DIN Rail

Page 8 of 60
QuickServer Start-Up Guide
Din Rail
Tab
