QuickServer Start-Up Guide

Appendix A.2. KNX Connection R2 Port

NOTE: The following only applies to models: FS-QS-1240 and FS-QS-1241.
The KNX QuickServer is used to transfer data to and from devices using KNX protocol. The KNX driver
enables data access from KNX networks to other FieldServer protocols. Most KNX data-point types are
supported, allowing communication to almost any kind of KNX device in an installation, such as
temperature sensors, shutters, light switches, actuators, alarms, etc. This allows BMS systems to access
a KNX network using direct read and write or with KNX configured groups. This setup does not require
the use of ETS4 to configure the QuickServer KNX gateway. The KNX protocol is a connectionless
protocol and therefore supports multiple clients and multiple servers. The QuickServer is intended to act
as a Passive Client on the KNX bus and makes information available to other protocols.
KNX+ KNX- No Connection

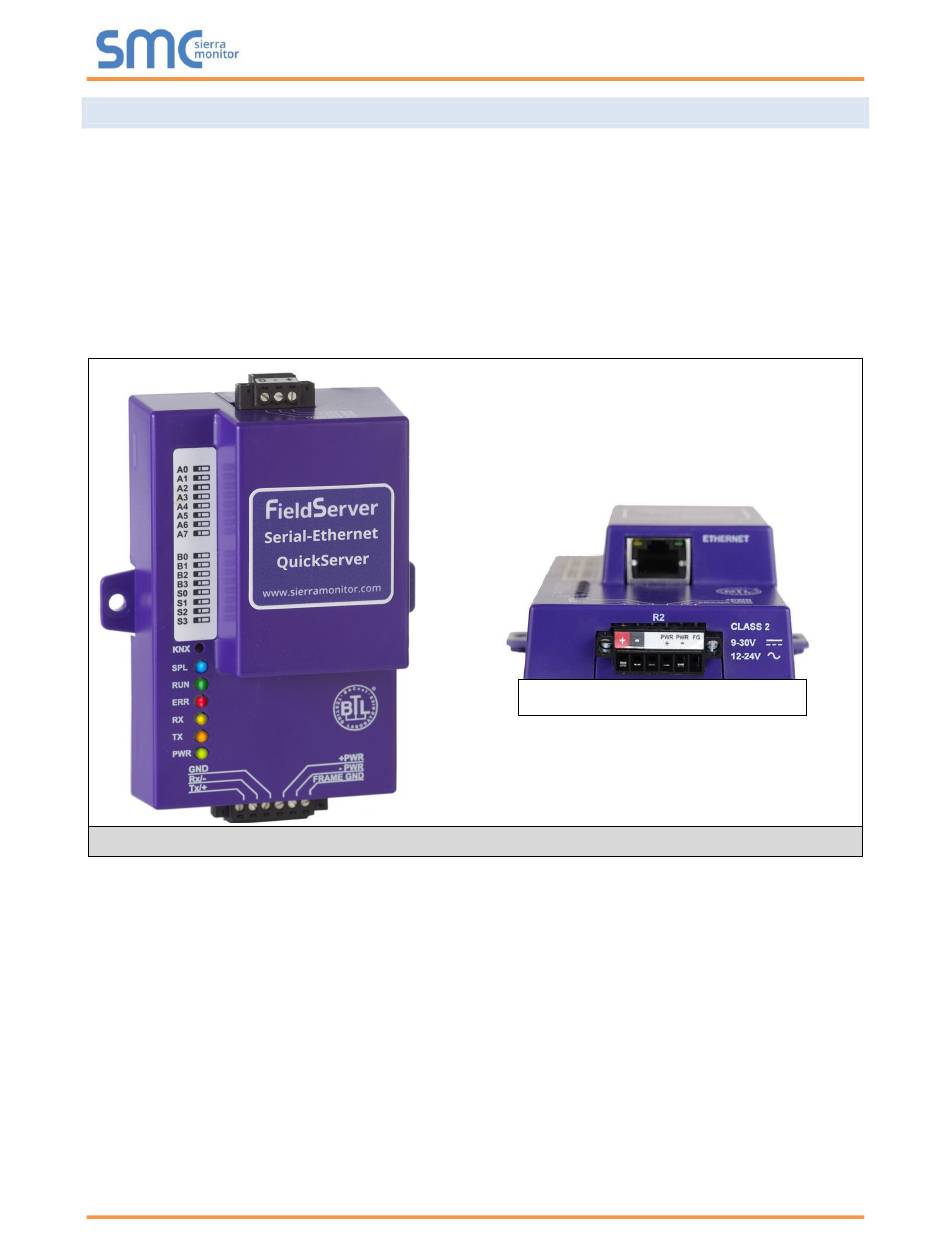

Figure 25: KNX Unit

The KNX Connector consist of a KNX + and KNX- terminal. Each terminal corresponds to the red KNX+
and gray KNX- bus connections on a KNX bus.
The following Baud Rates are supported on the R2 Port:
4800, 9600, 19200, 38400, 57600, 115200
Page 31 of 60
