OPERATION
6.1
Power Up the Device
Apply power to the device. Ensure that the power supply used complies with the specifications provided.
Ensure that the cable is grounded using the "Frame GND" terminal. The QuickServer is factory set for 9-
30V DC or 12-24V AC.
6.2
Connect the PC to the QuickServer Over the Ethernet Port
•
Connect an Ethernet cable between the PC and QuickServer or connect the QuickServer and the
PC to the switch using a straight CAT5 cable.
•
The Default IP Address of the QuickServer is 192.168.2.101, Subnet Mask is 255.255.255.0.
PWR+
PWR-

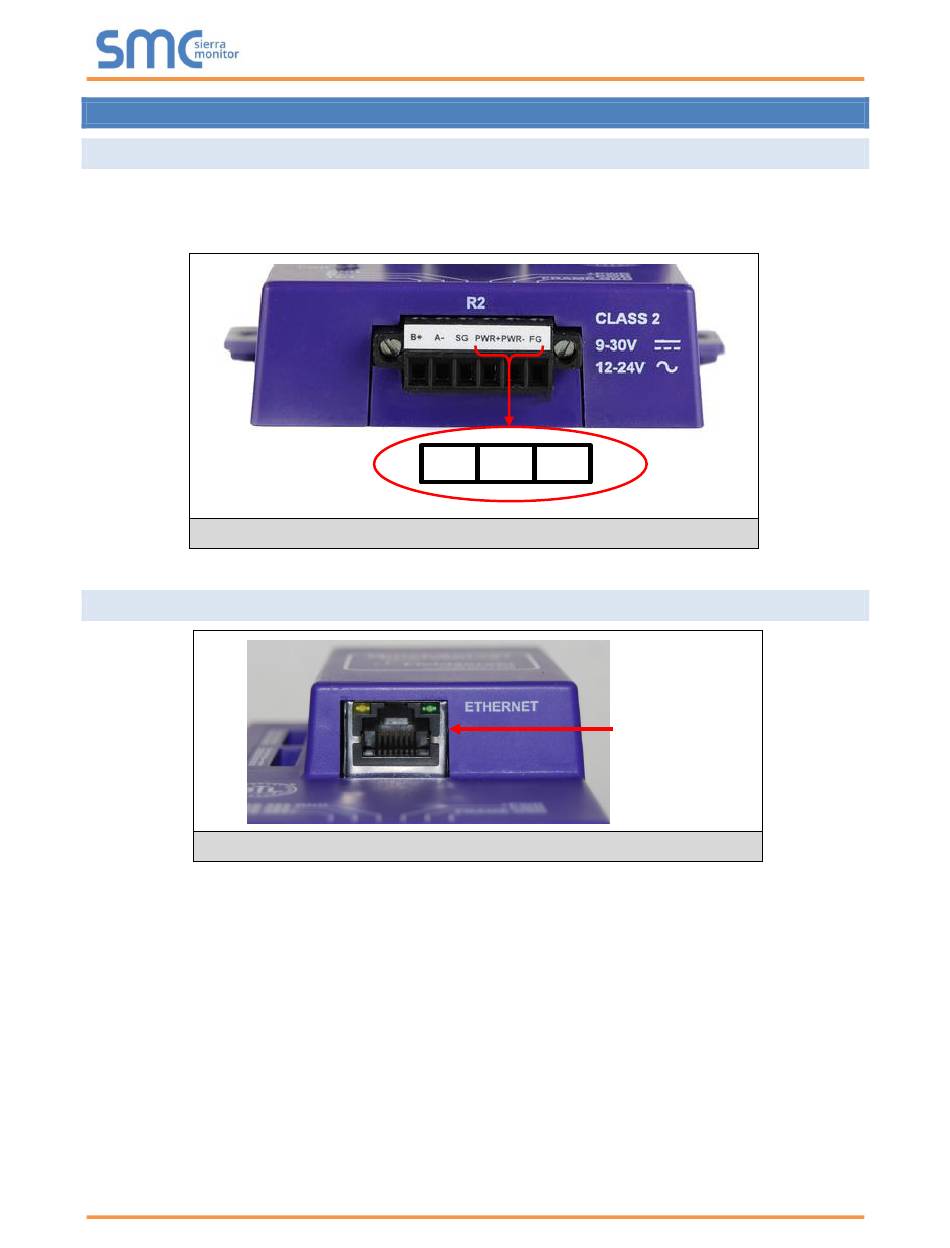

Figure 15: Connecting Power
Figure 16: Ethernet Port
Page 20 of 60
QuickServer Start-Up Guide
FG
