5.2 QuickServer LonW orks (FS-QS-1XX1-XXXX)
Connect the QuickServer to the LonWorks terminal using a twisted pair non-shielded cable.
To commission the QuickServer LonWorks port, insert a small screwdriver in the commissioning hole on
the face of the QuickServer's enclosure to access the Service Pin. See the instructions on the
QuickServer as to which way to toggle the screwdriver during commissioning.
5.3

QuickServer KNX (FS-QS-124X-XXXX)

Connect the QuickServer to the KNX bus using the standard KNX twisted pair cable.
To commission the QuickServer as a KNX device in ETS Software, insert a small pin into the KNX
commissioning hole on the face of the QuickServer to access the button.
LonWorks Terminal

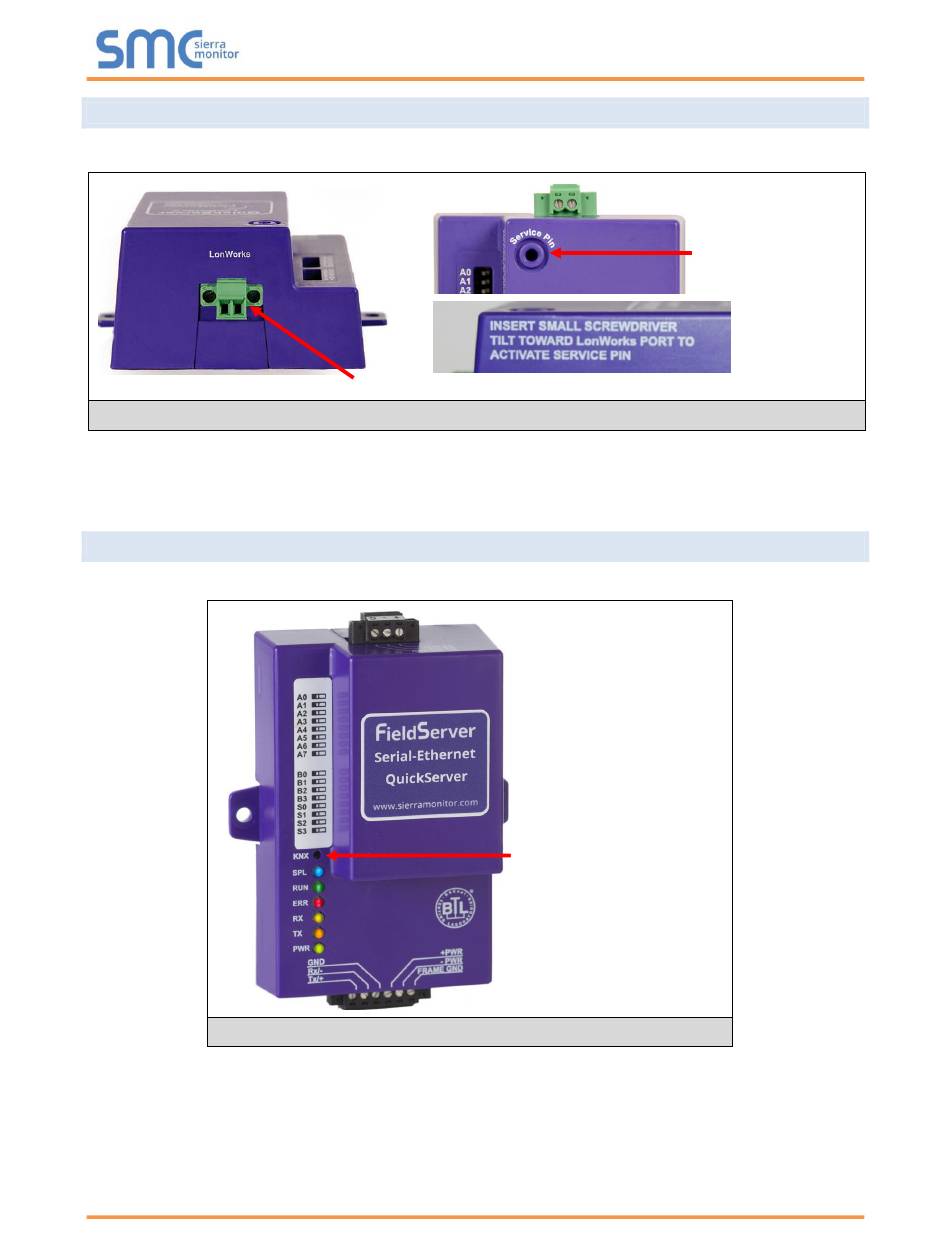

Figure 12: LonWorks Commissioning and Port

Figure 13: KNX Commissioning

Page 18 of 60
QuickServer Start-Up Guide
LonWorks Service Pin
KNX Programming Button
