6.4

Set IP Address of the QuickServer

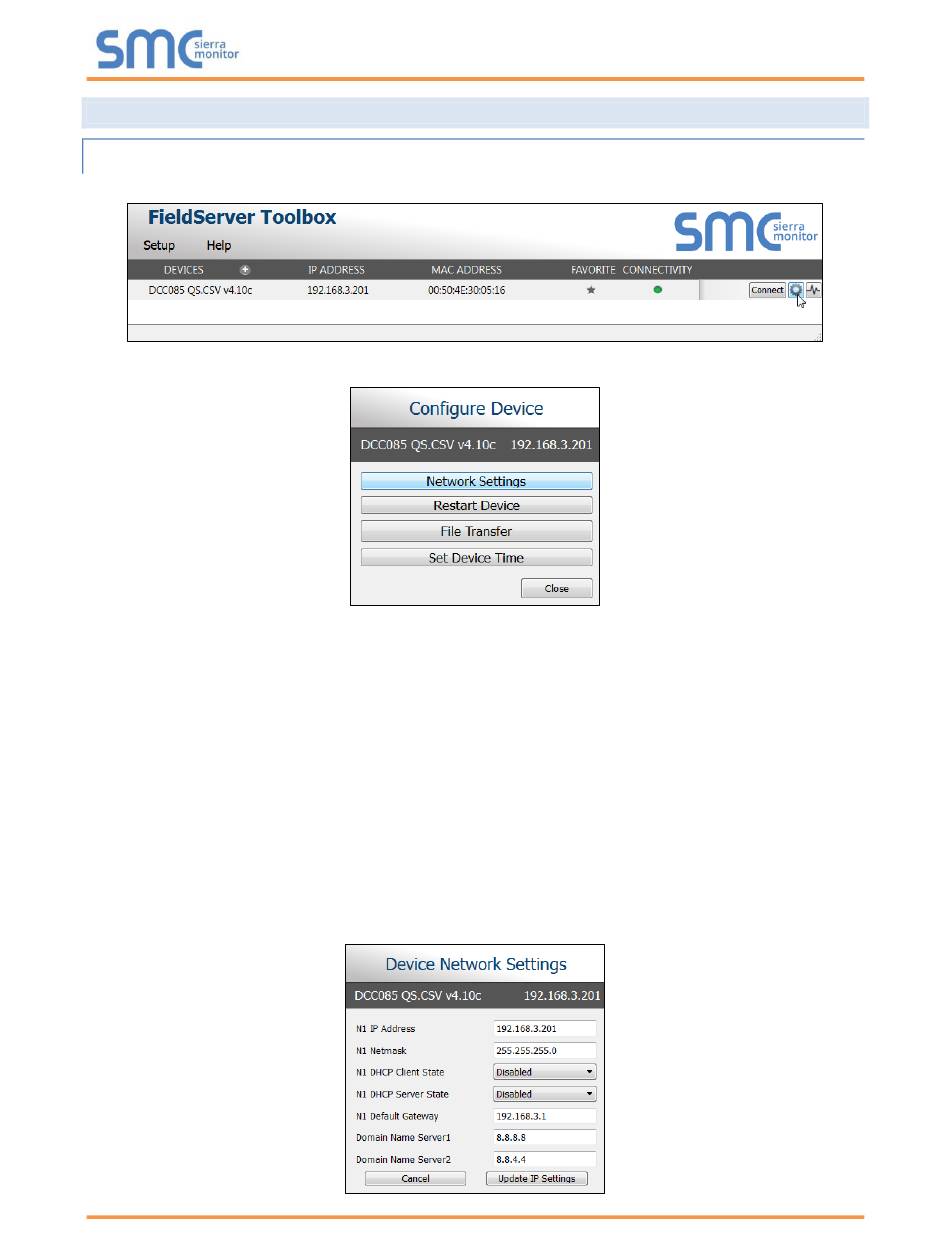

6.4.1 Using the FS Toolbox Application to Set the IP Address

•
From the FS Toolbox main page, click on the setup icon (gear icon).
•
Select Network Settings.
•
Modify the IP Address (N1 IP Address field) of the QuickServer Ethernet port.
o
The following fields may also be changed as needed: Netmask (N1 Netmask field), DHCP
Client State (N1 DHCP Client State field), IP Gateway (Default Gateway field) and DNS 1 & 2
(Domain Name Server fields)
NOTE: If the QuickServer is connected to a router, the IP Gateway of the QuickServer should be
set to the IP Address of that router.
NOTE: Do not change the DHCP Server State (N1 DHCP Server State field).
NOTE: If DNS settings are unknown, set DNS1 to "8.8.8.8" and DNS2 to "8.8.4.4".
•
Click "Update IP Settings", then click on the "Change and Restart" to restart the Gateway and
activate the new IP Address.
NOTE: If the FS-GUI was open in a browser, the browser will need to be pointed to the new IP
Address of the QuickServer before the FS-GUI will be accessible again.
