QuickServer Start-Up Guide

4.3.2 M-Bus Port: Master/Slave Jumper

NOTE: The following only applies to models: FS-QS-1A50, FS-QS-1A51, FS-QS-1B51, FS-QS-1B51,
FS-QS-1C51 and FS-QS-1C51.
The Master/Slave jumper is used to set the M-Bus hardware as a Master or Slave device (indicated by
the labels on the board).

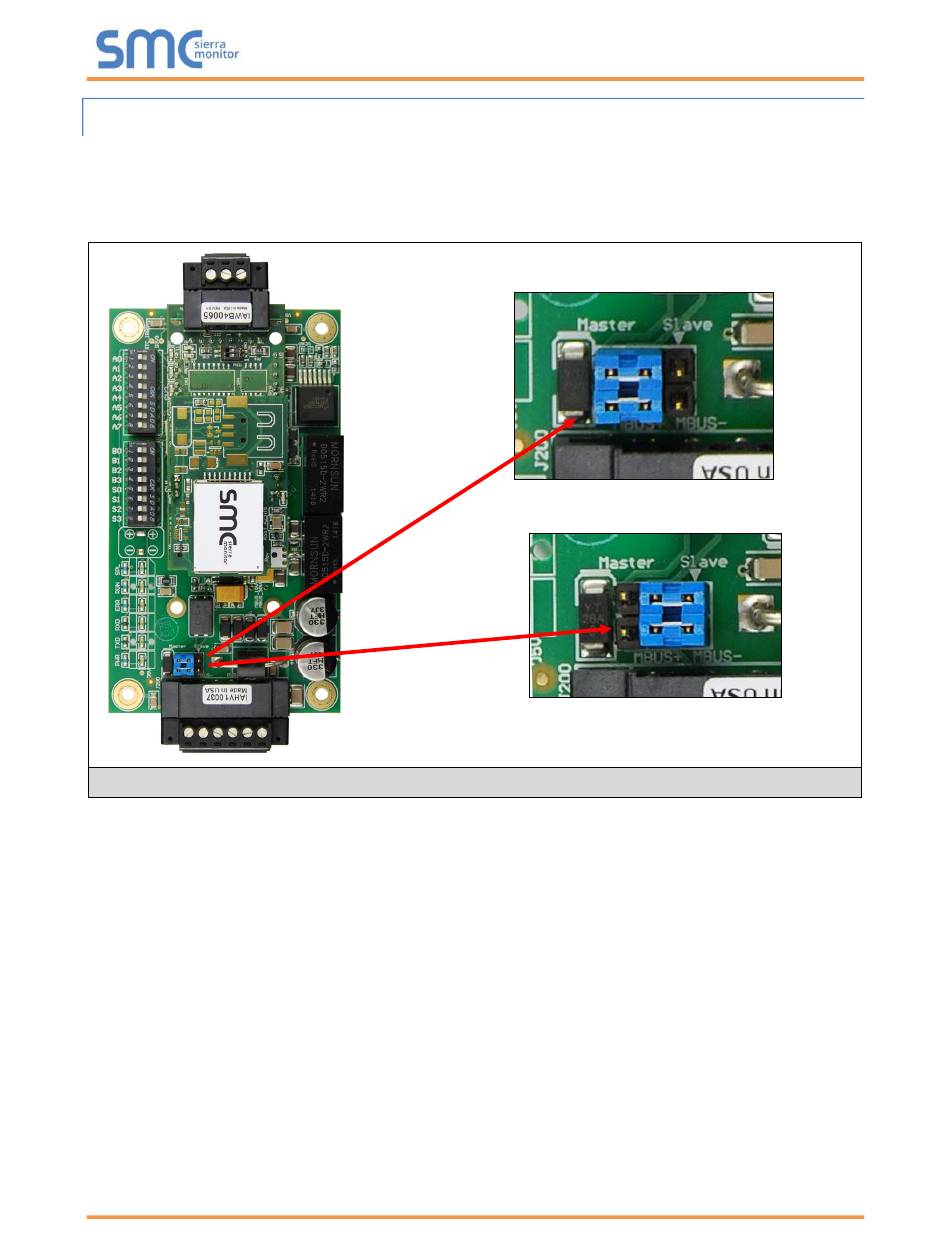

Figure 8: Setting Master/Slave Jumper

Page 15 of 60
