MW32
NCPR Simulator
Instruction
Manual
Contents
●
●
Right Arm Installation
Injection of the Simulated Blood
●
Umbilical Catheterization
CPR
●
Do not mark on the model and other components
with pen or leave any printed materials contacted on
surface. Ink marks on the model cannot be removed.
Simulated Blood making
NG/OG Tube Feeling
P.9
P.1
P.1
P.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCPR Simulator and is the answer not in the manual?

Questions and answers

Related Manuals for Kyoto Kagaku NCPR Simulator

Summary of Contents for Kyoto Kagaku NCPR Simulator

  • Page 1: Table Of Contents

    Do not mark on the model and other components with pen or leave any printed materials contacted on surface. Ink marks on the model cannot be removed. MW32 NCPR Simulator Instruction Manual Contents Introduction ● Manufacturer’s Note DOs and DON’Ts Before you start ●...

  • Page 3: Introduction

    Manufacturer’s Note / Introduction DOs and DON’Ts Manufacturer’s Note Features Provides training in regards to the routine procedure for umbilical catheterization for both the operator and assistant. Omphalotomy/ Catheter insertion/ Ligation with clip or string/ Placement The simulator is designed for training in neonatal care. Do not use for improper purpose. Please read the instruction carefully before use.

  • Page 4: Before You Start Set Includes/Con Guration

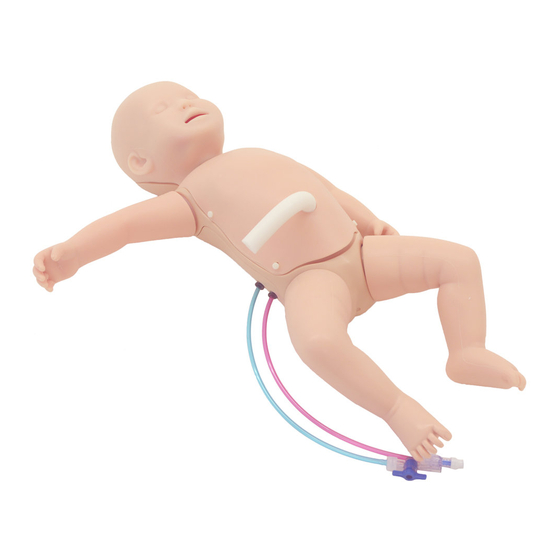

    Set includes Before You Start Con guration Set Includes Before your first use, ensure that you have all components listed below. Ｃ Ａ Ｄ Neonatal model Simulated blood (swab type) Lubricant Syringe Plastic jar Instruction manual Con guration Oral Cavity Ribs/Lung Bronchi Umbilical Cord/...
  • Page 5 Before Training Preparation Right Arm Installation 1. Screw the right arm to the shoulder. 2. Remove the body skin. (The skin is fixed by six braces) 3. Remove the lung and rib and remove the umbilical part. ３...

  • Page 6: Preparation

    Before Training Preparation ２ Simulated Blood making 1. Pour 1000mL of water into the plastic beaker. Put the simulated blood (swab type) into the beaker and stir the water sufficiently to prepare the simulated blood. Caution Take care not to drop simuleted blood on clothes as simuleted blood stains can be very di cult to remove.

  • Page 7: Injection Of The Stomach Fluid (Water)

    Before Training Preparation Umbilical blood preparation ３ 2. Put the umbilical part in the body, and the lung and rib on it. Cover the model with the body skin. Put the umbilical cord through the body skin hole first, and put the body skin on the body to fix by six braces.

  • Page 8: Training

    Training Positioning keeping/ Training Assessment of Anterior Fontanel/ Umbilical Catheterization １ Training Positioning keeping/ Assessment of Anterior Fontanel Training for the position keeping and changing Palpating to assess the anterior fontanel Umbilical Catheterization Provides training for routine procedure of umbilical catheterization for both operator and assistant.

  • Page 9: Airway Suction

    NG/OG Tube Feeling Training Airway Suction/CPR NG/OG Tube Feeding Training for the catheter insertion through the nasogastric and orogastric tubes ● The catheter placement by dressing Air sounds can be heard with a stethoscope. ● Recommended catheter size; 5Fr. *Spray the attached lubricant to the catheter, nasal and oral cavity of model before practice.

  • Page 10: Airway Management

    Training Airway Management Airway Management ６ Training for the procedure of intubation with laryngoscope ● Bag-Valve-Mask ventilation Training for the assessment of intubation to the esophagus or one-lung or two-lung intubation ● Preparing for Intubation Spray the lubricant into the oral cavity and device before intubation practice. Recommended device size Tube：2.0～3.0 mm Blade：0...

  • Page 11: After Training

    Drainage of umbilical blood and After Training stomach uid / replacing skin mask １ Drainage of Umbilical blood and Stomach uid 1 . Remove the umbilical part and put out the 2. Connect the empty syringe to the connector umbilical bottle to drain the simulated blood. under infra-axillary of the left side to draw the After that clean up the bottle and dry it up.
  • Page 12 Do not mark on the model and other components with pen or leave any printed materials Caution contacted on surface. Ink marks on the model cannot be removed. For inquiries and service, please contact your distributor or KYOTO KAGAKU CO., LTD. code name...
