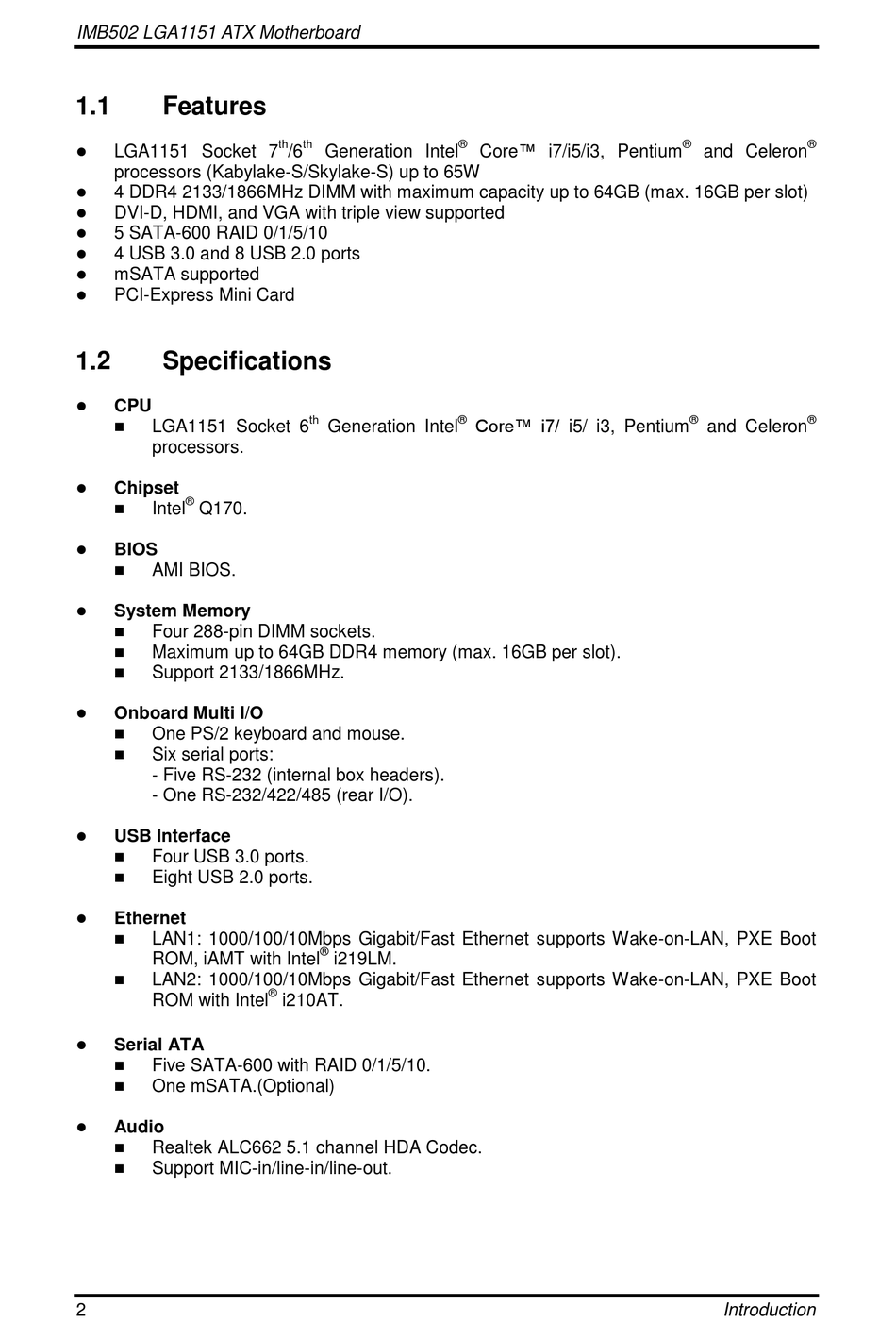

IMB502 LGA1151 ATX Motherboard
1.1

Features

 LGA1151 Socket 7
processors (Kabylake-S/Skylake-S) up to 65W
 4 DDR4 2133/1866MHz DIMM with maximum capacity up to 64GB (max. 16GB per slot)
 DVI-D, HDMI, and VGA with triple view supported
 5 SATA-600 RAID 0/1/5/10

4 USB 3.0 and 8 USB 2.0 ports
 mSATA supported
 PCI-Express Mini Card
1.2

Specifications

 CPU
 LGA1151 Socket 6
processors.

Chipset
®
 Intel Q170.
 BIOS
 AMI BIOS.
 System Memory
 Four 288-pin DIMM sockets.
 Maximum up to 64GB DDR4 memory (max. 16GB per slot).
 Support 2133/1866MHz.
 Onboard Multi I/O
 One PS/2 keyboard and mouse.

Six serial ports:
- Five RS-232 (internal box headers).
- One RS-232/422/485 (rear I/O).
 USB Interface
 Four USB 3.0 ports.
 Eight USB 2.0 ports.
 Ethernet
 LAN1: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM, iAMT with Intel
 LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM with Intel

Serial ATA
 Five SATA-600 with RAID 0/1/5/10.
 One mSATA.(Optional)
 Audio
 Realtek ALC662 5.1 channel HDA Codec.
 Support MIC-in/line-in/line-out.
