IMB502 LGA1151 ATX Motherboard



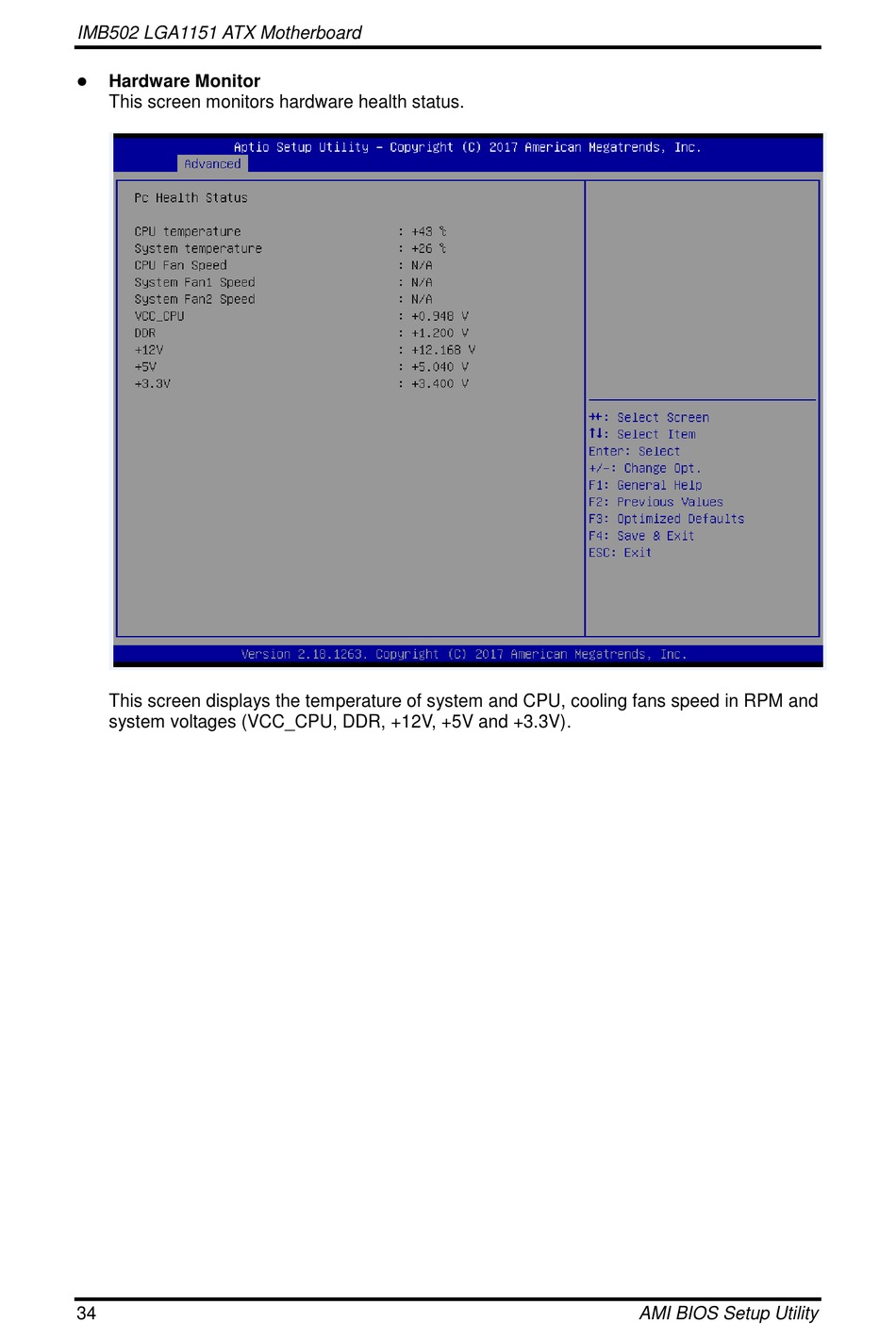

Hardware Monitor

This screen monitors hardware health status.

This screen displays the temperature of system and CPU, cooling fans speed in RPM and

system voltages (VCC_CPU, DDR, +12V, +5V and +3.3V).

AMI BIOS Setup Utility
