Functional Details

Internal components

These USB-DIO96H components are shown in Figure 3-1.
! Two (2) USB connectors
! Two (2) external power connectors
! USB LED
!
PWR LED
! 12 pull-up/pull-down resistors
! Four (4) screw terminal banks (Port 1 through Port 4)
USB IN
USB
OUT
Pull-up/down
SIP resistors
PWR LED
USB LED

USB OUT connector

The connector is a downstream hub output port intended for use with other MCC USB Series
USB OUT
products only. The USB hub is self-powered, and can provide 100 mA maximum current at 5 V. The USB out
connector is labeled
USB OUT
When connecting to another MCC USB Series product, connect the
to the connector on the next device in the chain. Refer to
USB IN
USB-DIO96H on page 3-5 for information on how to connect multiple MCC USB Series products

USB IN connector

Connect the connector to the USB port on your computer (or USB hub connected to your computer)
USB IN
using the supplied USB cable. The USB in connector is labeled
When connecting to another MCC USB Series product, connect the
the connector on the next device in the chain. Refer to
USB OUT
USB-DIO96H on page 3-5 for more information on how to connect multiple MCC USB Series products.
POWER IN
POWER
OUT
Port 1 Port 2

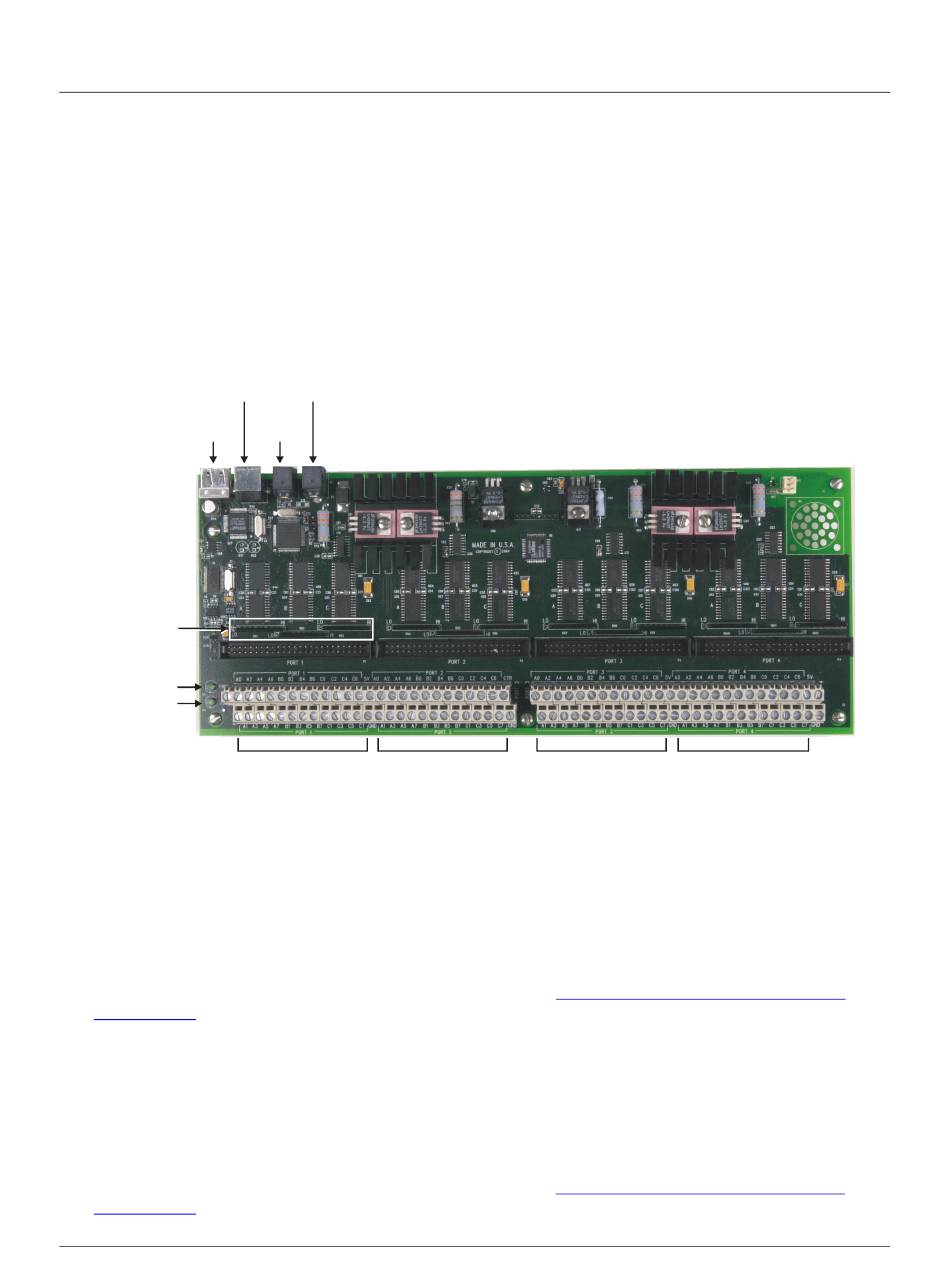

Figure 3-1. USB-DIO96H components
