Measurement Computing USB-3106 User Manual

Usb-based analog output

Advertisement

Quick Links

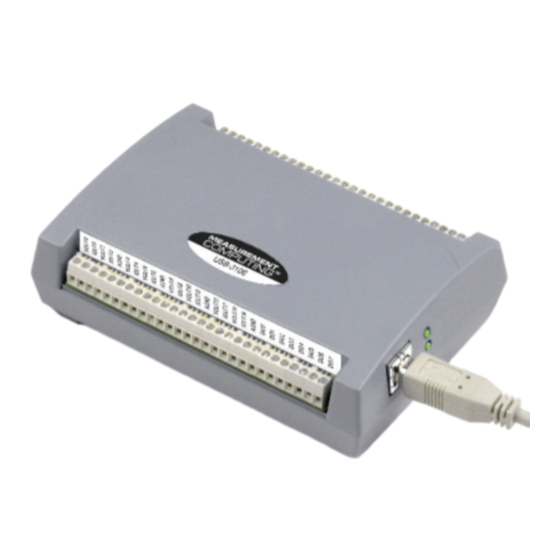

USB-3106
USB-based Analog Output
November 2017. Rev 5
© Measurement Computing Corporation
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-3106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Measurement Computing USB-3106

  • Page 1 USB-3106 USB-based Analog Output User's Guide November 2017. Rev 5 © Measurement Computing Corporation...
  • Page 2 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2017 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
  • Page 3: Table Of Contents

    What you will learn from this user's guide ......................5 Conventions in this user's guide ......................... 5 Where to find more information ......................... 5 Chapter 1 Introducing the USB-3106 ........................6 Overview: USB-3106 features ..........................6 USB-3106 block diagram ........................... 7 Chapter 2 Installing the USB-3106 ........................
  • Page 4 USB-3106 User's Guide Mechanical ............................... 20 Screw terminal connector ..........................20 EU Declaration of Conformity ......................21 USB-3106...
  • Page 5: Preface

    Preface About this User's Guide What you will learn from this user's guide This user's guide describes the Measurement Computing USB-3106 data acquisition device and lists device specifications. Conventions in this user's guide For more information Text presented in a box signifies additional information and helpful hints related to the subject matter you are reading.
  • Page 6: Introducing The Usb-3106

    Overview: USB-3106 features This user's guide contains all of the information you need to connect the USB-3106 to your computer and to the signals you want to control. The USB-3106 is part of the Measurement Computing brand of USB-based data acquisition products.
  • Page 7: Usb-3106 Block Diagram

    USB-3106 User's Guide Introducing the USB-3106 USB-3106 block diagram USB-3106 functions are illustrated in the block diagram shown here. 4-channel Analog Voltage Quad Output Full-speed 16 channels (16-bit) USB 2.0 Compliant Interface 4 4 4 8 channels Analog Current Microcontroller...
  • Page 8: Installing The Usb-3106

    Installing the hardware To connect the USB-3106 to your system, connect the USB cable to an available USB port on the computer or to an external USB hub connected to the computer. Connect the other end of the USB cable to the USB connector on the device.
  • Page 9: Functional Details

    Status LED The Status LED indicates the communication status of the USB-3106. It flashes when data is being transferred, and is off when the USB-3106 is not communicating. This LED uses up to 10 mA of current and cannot be disabled.
  • Page 10: Screw Terminal Banks

    Screw terminal banks The USB-3106 has two rows of screw terminals—one row on the top edge of the housing, and one row on the bottom edge. Each row has 28 connections. Use 16 AWG to 30 AWG wire gauge when making screw terminal connections.
  • Page 11: Analog Voltage Output Terminals (Vout0 To Vout15)

    DIO5 54 DIO CTL DIO6 55 DGND DIO7 56 +5V Figure 5. USB-3106 signal pin out Analog voltage output terminals (VOUT0 to VOUT15) The screw terminal pins labeled are voltage output terminals (see Figure 5). The voltage VOUT0 VOUT15 output range for each channel is software-programmable for either bipolar or unipolar. The bipolar range is ±10 V, and the unipolar range is 0 to 10 V.
  • Page 12: Current Test Terminal (Itest)

    USB-3106 User's Guide Functional Details Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn+2 IOUTn+2 IOUTn+2 IOUTn+2 Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn+1 IOUTn+1 IOUTn+1 IOUTn+1 Floating Supply Floating Ext. IOUTn+1 Supply Floating Load IOUTn IOUTn IOUTn...
  • Page 13: Digital I/O Terminals (Dio0 To Dio7)

    USB-3106 User's Guide Functional Details Digital I/O terminals (DIO0 to DIO7) You can connect up to eight digital I/O lines to the screw terminals labeled (pins 21 through 28). DIO0 DIO7 You can configure each digital bit for either input or output.
  • Page 14: Counter Terminal (Ctr)

    Configure as an output (master mode) to send the internal D/A LOAD signal to the SYNCLD pin.  You can use the SYNCLD pin to synchronize with a second USB-3106 and simultaneously update the DAC outputs on each device. Refer to Synchronizing multiple units below.
  • Page 15: Specifications

    Note 2: The USB-3106 output voltage level defaults to 0V whenever the output voltage range is reconfigured. The USB-3106 output voltage level will also default to 0V: 1) Whenever the host PC is reset, shut down or suspended.
  • Page 16: Analog Current Output

    The maximum differential non-linearity specification applies to the entire 0 to 50 °C temperature range of the USB-3106. This specification also accounts for the maximum errors due to the software calibration algorithm (in Calibrated mode only) and the DAC8554 digital to analog converter non-linearities.
  • Page 17: Analog Output Calibration

    The maximum differential non-linearity specification applies to the entire 0 to 70 °C temperature range of the USB-3106. This specification also accounts for the maximum errors due to the software calibration algorithm (in Calibrated mode only) and the DAC8554 digital to analog converter non-linearities.
  • Page 18: Synchronous Dac Load

    USB-3106 User's Guide Specifications Synchronous DAC Load Table 8. SYNCLD I/O specifications Parameter Condition Specification Pin name SYNCLD (terminal block pin 49) Power on and reset state Input Pin type Bidirectional Termination Internal 100K ohms pull-down Software selectable direction Output Outputs internal D/A LOAD signal.
  • Page 19: Memory

    30 mA max Note 11: This is the total quiescent current requirement for the USB-3106 which includes up to 10 mA for the status LED. This does not include any potential loading of the digital I/O bits, +5 V user terminal, ITEST, or the VOUTx/IOUTx outputs.
  • Page 20: Environmental

    USB-3106 User's Guide Specifications Environmental Table 14. Environmental specifications Parameter Specification Operating temperature range 0 to 50 °C Storage temperature range –40 to 85 °C Humidity 0 to 90% non-condensing Mechanical Table 15. Mechanical specifications Parameter Specification Dimensions (L × W × H) 127 ×...
  • Page 21 October 10, 2017, Norton, Massachusetts USA Test Report Number: EMI4712.07/EMI5193.08 Measurement Computing Corporation declares under sole responsibility that the product USB-3106 is in conformity with the relevant Union Harmonization Legislation and complies with the essential requirements of the following applicable European Directives:...
  • Page 22 Measurement Computing Corporation NI Hungary Kft 10 Commerce Way H-4031 Debrecen, Hátar út 1/A, Hungary Norton, Massachusetts 02766 Phone: +36 (52) 515400 (508) 946-5100 Fax: +36 (52) 515414 Fax: (508) 946-9500 http://hungary.ni.com/debrecen E-mail: info@mccdaq.com www.mccdaq.com...
