N-Series
3D Printer
Quick Start Guide
* Please review this entire guide before operating the printer.
N1

Advertisement

loading
Need help?

Need help?

Do you have a question about the N1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raise3D N1

Summary of Contents for Raise3D N1

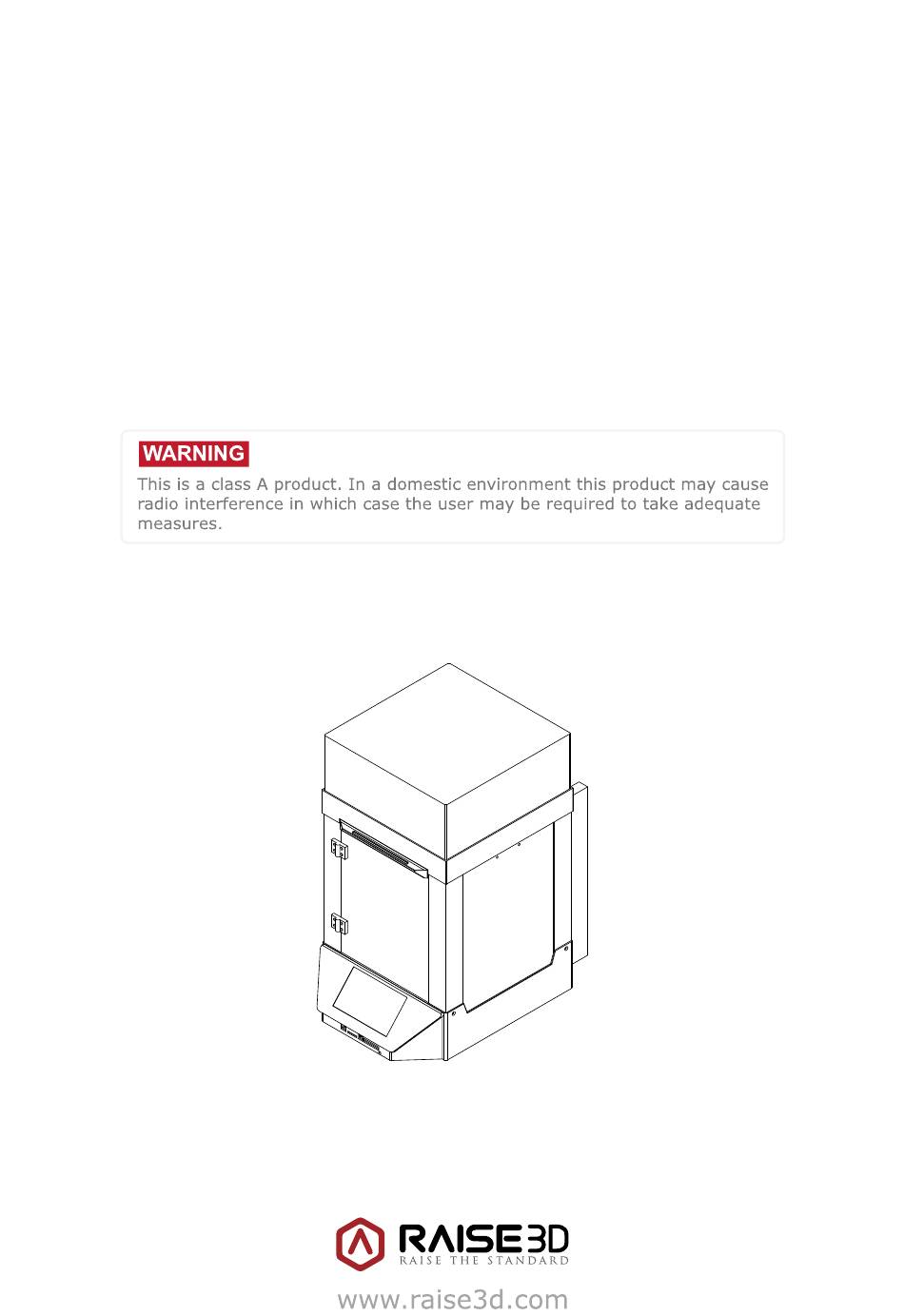

  • Page 1 N-Series 3D Printer Quick Start Guide * Please review this entire guide before operating the printer.

  • Page 2: List Of Parts

    / Quick Start Guide N-Series 3D Printer List of Parts Filament Feeder Fan(s) Nozzle(s) Print Bed Z-Stage Touch Screen Power Switch Power Inlet Z Ball Screws GPIO Ports USB Storage & SD Card Slot...

  • Page 3: Hardware Installation

    / Quick Start Guide N-Series 3D Printer Hardware Installation Remove! Remove! Take the power cable out from the left Recommend to unclip the Zipties as you foam box for later using. are able to reuse the ties later. Remove! (×24) Please remove the 24 clips holding the Untie the rope which fastens the accessory extruder assembly in place before power-...
  • Page 4 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) The printer will go through a start-up Plug in the power plug and turn the switch sequence. When the touch screen displays "Home", the printer is ready. Select the “Utilities” menu on the screen. When the Z axis return to original position, Press Z “Home”...
  • Page 5 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) List of Contents Glass with Filament Nozzle Tweezers Hex Wrenches Protective Foam (×1/×2)* Cleaning Kit Build Plate Clips Fan Cover Feeler Gage Filament Guide Filament Holder (×0/×2)* Tube Holder (×1/×2)* Spatula USB Storage Other Accessories...
  • Page 6 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Remove the glass build plate from the protective foam. Protective Foam Build Plate Remove! Cover Gently slide the glass plate. Make sure it snaps into the build plate clamps at the back.
  • Page 7 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Please follow the instructions of “Bed Leveling Steps” on the screen and use the feeler to adjust the build plate. Make sure the distance between the nozzle and the plate are all even at four corners. The best condition is that you can feel a little friction when you slide the feeler into the Feeler Gage...
  • Page 8 NOTE: This document is set based on the Raise3D PLA filament, which is delivered together with the printer. Therefore we advise that you use this PLA for testing. Feed the filament through the guide tube.
  • Page 9 / Quick Start Guide N-Series 3D Printer ideaMaker Installation The ideaMaker software is available on the USB storage www.raise3d.com included with your printer. Or go to www.raise3d.com Download ideaMaker download the ideaMaker software. WINDOWS Open the installer and choose the language. Set a path for installing ideaMaker then...
  • Page 10 / Quick Start Guide N-Series 3D Printer ideaMaker Installation (continued) Follow the instructions and click "Install". After the installation is finished, click "Next" to go to the next step. Click "Finish" and ideaMaker is installed.
  • Page 11 / Quick Start Guide N-Series 3D Printer ideaMaker Installation (continued) MAC OS X Open the Disk Image for the ideaMaker installed on the USB storage included with your printer or that you downloaded from www.raise3d.com.
  • Page 12 / Quick Start Guide N-Series 3D Printer ideaMaker Initial Settings The first time you open ideaMaker you will need to select your printer model from the drop-down list. Select the number of nozzles. Press "Next" to move on to the next step. Select the diameter of the filament.
  • Page 13 / Quick Start Guide N-Series 3D Printer Using ideaMaker Click the "+" button to import an .stl file or .obj file. You can download a file or use the test model included in the USB storage. Click the "Start" or “i” button to begin the slicing of the model. Confirm your printer model and material, then select the proper slicing template.
  • Page 14 / Quick Start Guide N-Series 3D Printer Using ideaMaker (continued) Click the “Save and Close” after selecting the type of Platform and the type of Support to return to the last menu. Click the “Slice” to start slicing. Save the sliced files (.gcode and .data) to your USB storage. NOTE: File names that do not conform to the Western Latin character set may not display properly.
  • Page 15 / Quick Start Guide N-Series 3D Printer Start First Print The USB storage included with the printer comes loaded with already sliced models. They are a good place to start for your first print. Insert the USB storage into the USB slot on the side of touchscreen.

  • Page 16: User Interface

    / Quick Start Guide N-Series 3D Printer User Interface · Status bar · Menu title, Settings Button · Extruder and Heat Bed temperature · Visual display of current model · Current model name, · Pause/Resume button total print time, current ·...
