N-Series
3D Printer
Quick Start Guide
* Please review this entire guide before operating the printer.
N1

Advertisement

loading
Need help?

Need help?

Do you have a question about the N-Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Raise3D N-Series

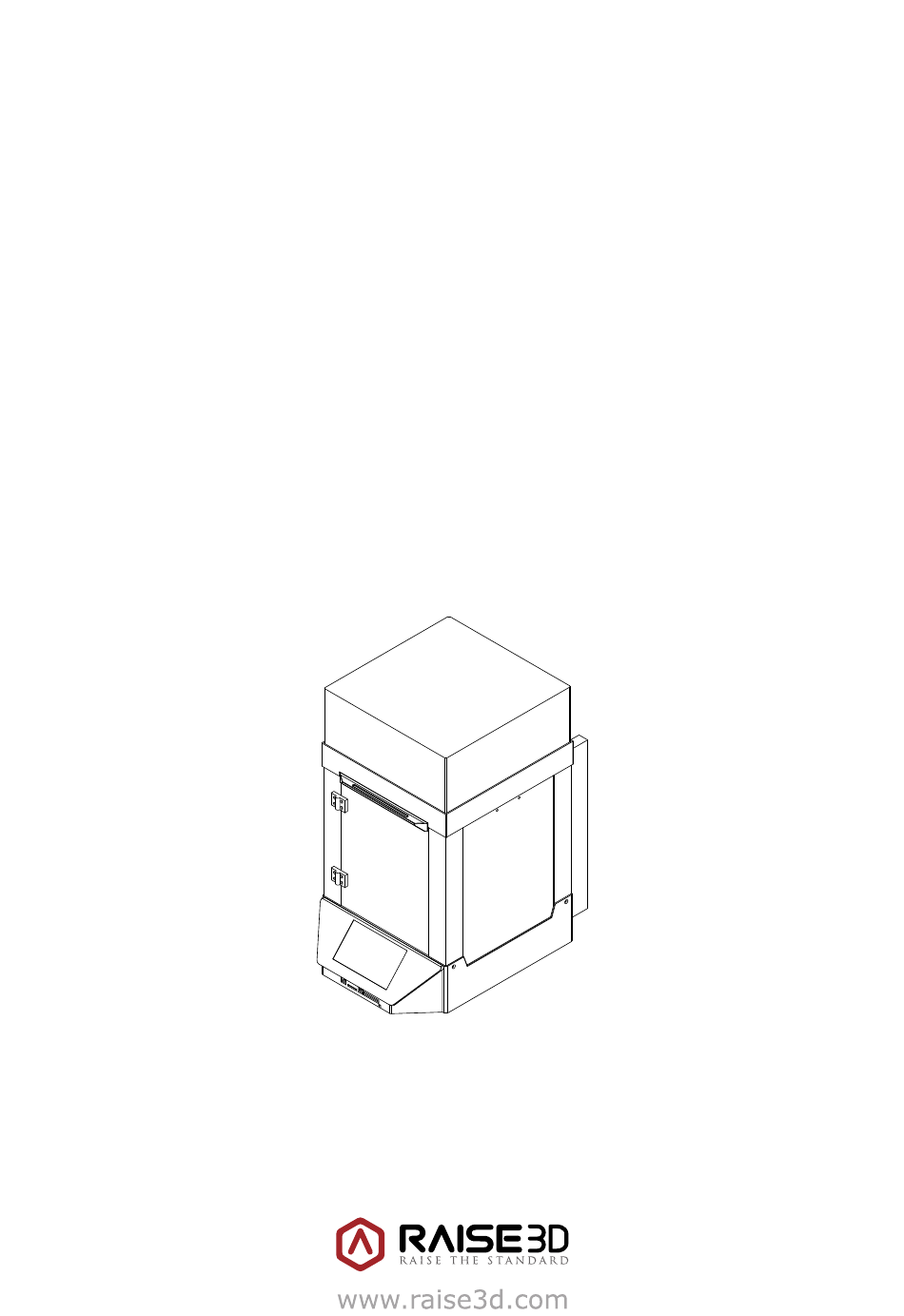

  • Page 1 N-Series 3D Printer Quick Start Guide * Please review this entire guide before operating the printer.
  • Page 2 / Quick Start Guide N-Series 3D Printer Unpacking Package Style: Wooden Case, Carton Case. 【Wooden Case】 Used for small quantity deliveries 【Carton Case】 Used for large quantity deliveries...
  • Page 3: List Of Parts

    / Quick Start Guide N-Series 3D Printer List of Parts Filament Feeder Fan(s) Nozzle(s) Print Bed Z-Stage Touch Screen Power Switch Power Inlet Z Ball Screws GPIO Ports USB Storage & SD Card Slot...
  • Page 4: Hardware Installation

    / Quick Start Guide N-Series 3D Printer Hardware Installation Remove! (×5) Remove! (×12) Please remove the 12 clips holding the Cut the 5 zip ties that are securing the extruder assembly in place before power- clips and the print head.
  • Page 5 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Lift the build plate gently with your hands and remove the packaging material under the build plate. List of Contents Glass with Filament Nozzle Cleaning Filament Holder Protective Foam (×2) Kit (×2)
  • Page 6 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Plug in the power plug. Install the filament holder in the mounting hole on the side of the printer and place a Mounting spool of filament on the holder. holes...
  • Page 7 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Push the top of the filament until it reaches the drive gear on the filament guide. Remove the glass build plate from the protective foam. Remove! Glass with Protective Foam Gently slide the glass plate on the build plate.
  • Page 8 / Quick Start Guide N-Series 3D Printer Hardware Installation (continued) Please use the build plate clips to secure the glass build plate to the heated build plate. Please use feeler gauge to calibrate, make sure the feeler gauge suit to distance between nozzle and the heated build plate.
  • Page 9 / Quick Start Guide N-Series 3D Printer Install ideaMaker The ideaMaker software is available on the USB storage www.raise3d.com included with your printer. Or go to www.raise3d.com Download ideaMaker download the ideaMaker software. Windows Versions Open the installer and choose the language. Set a path for installing ideaMaker then...
  • Page 10 / Quick Start Guide N-Series 3D Printer Install ideaMaker (continued) Follow the instructions and click "Install". After the installation has finished, click "Next" to move on the next step. Click "Finish" and ideaMaker is installed.
  • Page 11 / Quick Start Guide N-Series 3D Printer Install ideaMaker (continued) Mac Versions Open the Disk Image for the ideaMaker installed on the USB storage included with your printer or that you downloaded from www.raise3d.com.
  • Page 12 The first time you open ideaMaker you will need to select your printer model from the drop-down. Select the number of nozzles. Press "Continue" to move on to the next step. Select the diameter of the filament. Press "Done" to finish the initial settings. NOTE: The N-Series all use 1.75mm filament.
  • Page 13 / Quick Start Guide N-Series 3D Printer Use ideaMaker Click the "Add" button to import a .stl and .obj file. You can download a file or use the test model included in the USB storage. Click the "Slice" button to begin the slicing of the model.
  • Page 14 / Quick Start Guide N-Series 3D Printer Use ideaMaker (continued) Choose the type of Raft support you would like and click "OK". Save the sliced file to your USB storage. NOTE: File names that do not conform to the Western Latin character set may not display properly.
  • Page 15 / Quick Start Guide N-Series 3D Printer Start first print Turn the printer on with the power button on the back of the printer. The printer will go through a start-up sequence. When the touch screen displays "Home", the printer is ready.
  • Page 16 / Quick Start Guide N-Series 3D Printer Start first print (continued) The USB storage included with the printer comes loaded with already sliced models. They are a good place to start for your first print. Insert the USB storage into the USB slot on the side of the touchscreen.
  • Page 17: User Interface

    / Quick Start Guide N-Series 3D Printer User Interface · Status bar · Menu title, Settings Button · Extruder and Heated Bed Temperature · Visual display of current model · Current model name, · Pause/resume button total print time, current ·...
  • Page 18 Floor 4, Building B5, No.1600, North Guoquan Rd, Shanghai, China 200433 +86 21 65337855 1848 East Walnut Street, Pasadena, California, USA +1 888 963 9028 www.raise3d.com support@raise3d.com...
