  • Page 2 Our systems are made to withstand severe weather conditions and criminal situation of northern Eurasia. Pandora Elite is a premium-class telemetric service and security system, designed for B, C, J, M, S class cars (European classification). Elegant and advanced technical design and unique ergonomic interaction algorithms allow enhancing your car with fantastic set of intuitive and useful functions.
  • Page 3 Android. You can download Pandora Pro from AppStore or Pandora Online from Google Play and test them in demo mode. • Wide range of automatic engine start options: by weekdays, by engine or interior temperature,...

  • Page 4: Table Of Contents

    Settings of the sensors Shock sensor settings Motion sensor settings Tilt sensor settings Additional sensor settings Options of siren sound signals Hands Free mode settings Timer channels adjustment Switching on/off GPS/GLONASS receiver Switching on/off GSM modem Car service and security system Pandora Elite...
  • Page 5 Security zones triggered notifications Receiving voice information via phone Control over system via phone Changing core settings via phone Online information service pandora-on.com and mobile apps Additional information Control over system in case of emergency, entering individual PIN-code Switching off immobilizer and Antihijack...

  • Page 6: General Information

    General information Car service and security system Pandora Elite...

  • Page 7: System Features

    System features Main LCD remote • Dialog encryption of commands. • Arming and disarming security system using separate buttons. • Controls status of 15 independent security zones. • Vibrating alert. • 16 sound notifications. • Automatic LED lighting of the LCD. •...

  • Page 8: Car Security Zones

    • critically low on-board voltage • marker lights left on notification when arming**. * Volume sensor is not a part of Pandora Elite service-security system set configuration ** Availability of this function depends on car model Car service and security system Pandora Elite...

  • Page 9: System Set

    System set Base unit.................................1 RF module and cable..........................1 Main control remote with LCD......................1 Immobilizer tags............................2 Leather case for immobilizer tags......................1 Blocking radio relay............................1 Main cable..............................1 Supplementary cable..........................1 Cable with VALET button and three-colored light indicator............1 10. Relay automatic start module........................1 11.

  • Page 10: Control Remote

    Control remote Car service and security system Pandora Elite...

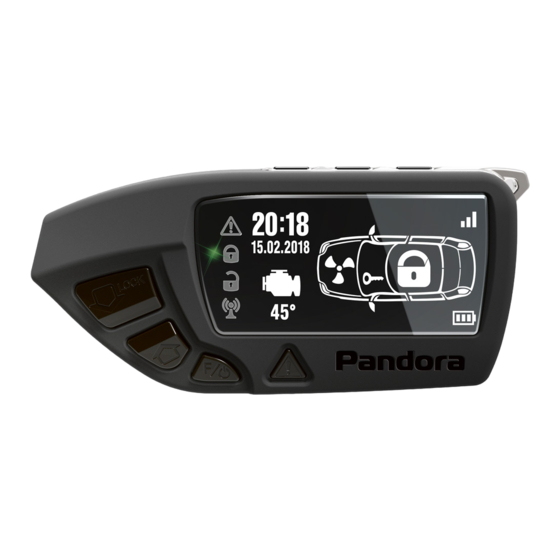

  • Page 11 Two-way remote is the main mean to control the system. For easily distinguishable notifications the remote uses 16 ringtones. Each ringtone matches particular event. Remote has flashing LED indicators for additional information. Brightness of displayed information can be adjusted automatically by built-in light sensor. Ambient light sensor Button 4 Button 6...

  • Page 12: Quick Access Functions Of The Main Control Remote

    6 (3 sec.) Force connection to the online service button 5 (1 sec.) Enter settings menu button 5 (3 sec.) Switch on engine preheater button 5 (2 sec.) Switch off engine preheater Car service and security system Pandora Elite...

  • Page 13: Led Indicator Signals

    LED indicator signals Red Alarm indicator • Flashes occasionally and sounds short signal once a minute until any button is pressed, after the end of any alarm notification. Green Lock indicator • Flashes occasonally if there is a connection and the system is armed. Red Unlock indicator •...
  • Page 14 Light signalization (using marker lights, turn signals). Front hood security zone. Motion sensor security zone Silent mode of the system. warning signals of the system disabled. all sound signals disabled. Ignition, ignition security zone. Car service and security system Pandora Elite...

  • Page 15: Arming Procedure

    Door security zone. Separate for each door. Supplementary sensor security zone. Warning level of the sensor. Alarm level of the sensor. Warning level zone monitoring disabled. Supplementary sensor monitoring disabled. Arming procedure short doors locking 1 ash press press and hold for system arming 1 ash...

  • Page 16: Unlocking The Trunk

    To do this, shortly press when the ignition is switched on: doors will be unlocked. Pressing of button will unlock the doors in the same way. * In some cars additional connection may be needed Car service and security system Pandora Elite...

  • Page 17: Car Search Function

    doors locking short press doors unlocking A mode of locking doors at the start of movement and unlocking them when the igniton is switched off is avaliable. In 5 seconds after ignition was switched on, doors will be locked, and unlocked when the ignition will be switched off (programmable).

  • Page 18: Panic Mode

    To recieve information about engine and interior temperature, on-board voltage and fuel level (de- pends on car model), press button 6 and hold it for 1 second. To exit this mode, shortly press F; other- wise it will be exited automatically in 10 seconds. Car service and security system Pandora Elite...

  • Page 19: Event History

    Event history HISTORY BACK 21:46 21:33 DISARM 21:15 20:55 DISARM To access event history into the system's memory, press and hold button 6 for 2 second. Nagivate several last events using button 6 (forward) and button 4 (back). Events are displayed by showing time when event happended and flashing corresponding indicators.
  • Page 20 In a few seconds the engine will be started, the remote will play 'Engine start' ringtone and show spinning engine operation icon Engine operation duration depends on system settings - either heating time or threshold temperature for engine stop. Car service and security system Pandora Elite...
  • Page 21 + 4 ashes 4 ashes press and hold for ‘engine start’ preparing to 3 sec. engine start ringtone start - Remote engine start using a phone. If the engine was started using remote or automatic start (via timer of clock) 123* phone menu command will extend its operation period by 10 minutes.

  • Page 22: System Settings

    1. AUTOSTART - automatic engine start settings 2. HEATER - engine preheater controls 3. SENSORS - settings of the sensors 4. TRACKING - switching on/off tracking (available for Pandora Professional) 5. SIREN - options of siren sound signals 6. HANDS FREE - Hands Free mode settings 7.

  • Page 23: Automatic Engine Start Settings

    Automatic engine start settings The system allows to set modes of automatic engine start and stop. Synchronized real-time clock in the remote and the base unit and other autonomous system settings allow to implement set of conditions of engine start and operation. AUTOSTART BACK BACK...
  • Page 24 SAVE STOP TEMP BACK Car service and security system Pandora Elite enabling engine stop by temperature disabling engine stop by temperature setting engine storp temperature SAVE...

  • Page 25: Engine Preheater Controls

    setting engine operation time (min) SAVE save settings WORK TIME BACK setting engine operation time (min) SAVE save settings PERIODICALLY BACK enabling periodic starts disabling periodic starts save settings SAVE PERIODICALLY BACK enabling periodic starts disabling periodic starts Full path to this settings menu: Main Menu>>1.AUTOSTART>> PERIODICALLY save settings SAVE STOP TEMP...

  • Page 26: Settings Of The Sensors

    To disable warning zone or disable shock sensor completely, select CONTROL option in the enabling shock sensor SHOCK menu using navigation buttons (4 and 6) and confirm it with button 5 short press. disabling shock sensor warning level NO WARNING disabling shock sensor SAVE save settings Car service and security system Pandora Elite...

  • Page 27: Motion Sensor Settings

    SENSORS > SHOCK BACK shock sensor control 1. CONTROL shock sensor sensitivity settings 2. SENSITIVITY SHOCK > CONTROL enabling shock sensor disabling shock sensor warning level NO WARNING disabling shock sensor SAVE save settings SHOCK > CONTROL Full path to this settings menu: Main Menu>>1.SENSORS>>1.SHOCK>> 1.CONTROL enabling shock sensor disabling shock sensor warning level NO WARNING...

  • Page 28: Tilt Sensor Settings

    SAVE save settings SENSORS > EXTENSION enabling additional sensor disabling additional sensor warning level NO WARNING Car service and security system Pandora Elite disabling additional sensor SAVE EXTENSION > SENSITIVITY adjustment bar for warning level save settings EXTENSION > SENSITIVITY...
  • Page 29 2. SENSITIVITY BACK sensor (this function is available only when using control over additional sensor 1. CONTROL microwave sensor Pandora VS) adjusting sensitivity of the additional 2. SENSITIVITY sensor (this function is available only when using microwave sensor Pandora VS) Full path to this settings menu: Main Menu>>1.SENSORS>>4.

  • Page 30: Options Of Siren Sound Signals

    The system allows switching on timer channels via the remote. Timer channels should be switching o selected channel programmed separately using a special piece of software - Pandora AlarmStudio. save settings SAVE AlarmStudio can be downloaded from the official company web-site pandorainfo.com...

  • Page 31: Switching On/Off Gps/Glonass Receiver

    HANDS FREE disabling HANDS FREE HANDS FREE when arming LOCK HANDS FREE when disarming UNLOCK full HANDS FREE (arming/disarming) LOCK/UNLOCK To remotely switch on one of the timer channels, select corresponding line (channel number) in the CHANNELS list menu using navigation buttons (4 and 6) and confirm it with button 5 short press: CHANNELS >...

  • Page 32: Maintenance/Valet Mode

    3. BACKLIGHT - LCD backlight brightness settings MAX BRIGHTNESS BACK of the LCD disabling radio channel control adjustment bar for the duration DURATION warning level of the LCD WARNING Car service and security system Pandora Elite alarm level save settings SAVE ALARM...
  • Page 33 GSM modem save settings SAVE 4. RFM LOST - radio channel control settings GSM MODEM 5. P-ON NOTIFY- adjusting notifications from pandora-on.com BACK switching on GSM modem 6. LANGUAGE - menu language settings (RUSSIAN/ENGLISH) switching o GSM modem 7.
  • Page 34 BACK ALARM enabling noti cations from pandora-on.com disabling noti cations from pandora-on.com To adjust notifications from pandora-on.com, select P-ON NOTIFY option in the SETTINGS save settings disabling noti cations from pandora-on.com SAVE menu using navigation buttons (4 and 6) and confirm it with button 5 short press:...
  • Page 35 SETTINGS > P ON NOTIFY disabling radio channel control Full path to this settings menu: Main Menu>>11.SETTINGS>>5.P-ON NOTIFY BACK warning level WARNING enabling noti cations from pandora-on.com alarm level Menu language settings disabling noti cations from pandora-on.com ALARM save settings...

  • Page 36: Checking The Number Of Recorded Remotes

    LCD remote works on accumulator battery that should be charged from time to time via micro-USB cable. Period of operation without recharging depends on conditions and operation rate. On average, one full charge should last 20-30 days. Micro-USB port for charging and software updates Car service and security system Pandora Elite...

  • Page 37: Owner's Personal Safety, Immobilizer And Sos Button

    Owner’s personal safety, immobilizer and SOS button User manual...

  • Page 38: Immobilizer Mode

    This system is shipped with 2 immobilizer radio tags. To increase security, 1 to 3 radio relays can be installed on the car. Immobilizer functions can be switched on and off via a phone or using Pandora AlarmStudio on a computer.

  • Page 39: Emergency Immobilizer And Antihijack Shutdown

    Emergency immobilizer and Antihijack shutdown To disable immobilizer and Antihijack in case of emergency, enter programming level 15 (see 'Control over system in case of emergency, entering PIN-code'). LED indicator will be lit green. Enter the first digit of PIN-code using VALET button (press the button a number of times equal to the first digit, pauses between presses should not exceed 1 second).

  • Page 40: Panic (Sos) Button

    PANIC (SOS) button In case your life or health are threatened, press SOS button and Pandora Elite will automatically perform voice call and send text notification with car coordinates to all programmed emergency numbers. During emergency voice call, person being called can access car's interior microphone (007*).

  • Page 41: Pandora And A Phone

    Pandora and phone User manual...

  • Page 42: Phone Notifications

    If any of security zones was triggered the system will immediately notify the owner by all available means: it will send alarm notification to the remote, will call and text owner's mobile phone, and will save information about the event in pandora-on.com online service. Security zones triggered notifications - Left/right, front/rear door security zone triggered;...

  • Page 43: Control Over System Via Phone

    Control over system via phone Call the system's phone number. When it answers, enter command code. Return to previous menu/state Enable engine blocking Repeat the last message Disable engine blocking Arming * System information Disarming * Disable immobilizer and Antihijack Silent arming * Enable immobilizer tag and Antihijack Silent disarming...
  • Page 44 3. The system will confirm: ‘Arming/Disarming’ . To end session, hang up the phone. Enabling/disabling automatic engine start Pandora system has function of promptly disabling automatic engine start. 1. Call the system’s number. Wait for answer. Car service and security system Pandora Elite...
  • Page 45 2. Dial 987* to disable all automatic engine starts or 789* to enable all automatic engine starts. 3. The system will confirm execution. To end session, hang up the phone. Automatics starts can be enabled again either by dialing 789* (all previous settings will remain intact).

  • Page 46: Changing Core Settings Via Phone

    Option 2. Disarm, call the system’s number, wait for answer, switch ignition on for 1-3 seconds then off. The system will switch into settings programming mode. WARNING! THE CAR SHOULD BE DISARMED BEFORE ADJUSTING VIA A PHONE. Car service and security system Pandora Elite...
  • Page 47 Owner's number -> # Changing guest PIN-code Phone Additional number settings settings Additional owner's number -> # Entering as guest Second additional owner's Remote blocking number -> # Account balance inquiry number -> # Switch on interior microphone Set threshold voltage for sending System’s number ->...

  • Page 48: Online Information Service Pandora-On.com And Mobile Apps

    Online information service pandora-on.com and mobile apps Car service and security system Pandora Elite...
  • Page 49 System login After completing of the registration process, you can login to online service via computer’s web browser or via special mobile apps for the Android (Pandora Online) and iOS (Pandora Pro). Mobile apps These apps are free and available through your device’s app store (AppStore, Google Play). To access the app, use the login data received from the service at the registration stage.
  • Page 50 Internet connection (Pandora Elite has limited number of events in the history). Every event is saved with date, time, coordinates (GPS/GLONASS receiver is required) and status of all control zones and sensors at the moment the event has occurred.
  • Page 51 System status information Engine Battery Ignition Interior Fuel Current remaining temperature voltage temperature coordinates in the tank Security 13,5 mode icon Brake Active pedal security Engine preheater 13,5 13,5 ! ! ! ! ! ! Exterior temperature Automatic Hands Free Tracking Voice calls engine start...
  • Page 52 Security mode icon Tilt sensor Motion Left front Left rear Warning zone sensor door door of the supplementary sensor Enter system Loss Trunk programming of GSM mode connection Car service and security system Pandora Elite...

  • Page 53: Additional Information

    Additional information User manual...

  • Page 54: Control Over System In Case Of Emergency, Entering Individual Pin-Code

    3. The system will confirm correct PIN-code with red and green flashes of LED indicator. If the input was incorrect, it will be indicated with long red flash. New input can be attempted in 5 seconds. Car service and security system Pandora Elite...

  • Page 55: Switching Off Immobilizer And Antihijack

    Switching off immobilizer and Antihijack 1. Using VALET button, enter service PIN-code. To input digits, shortly press VALET button (each pressing should not exceed 1 second for every input), pauses between presses should not exceed 1 or 2 seconds. Factory preset PIN-code is 1-1-1-1 (can be changed by user). Entering will be look as follow: 1 press, pause of 2 seconds, 1 press, pause of 2 seconds, 1 press, pause of 2 seconds, 1 press.

  • Page 56: Any Problem Can Be Solved

    Some mobile providers use different country code prefixes The system cannot determine (e.g. +44 or 0 for UK). Please, use the correct prefixes that owner’s number. your mobile operator uses when programming the system. Car service and security system Pandora Elite...

  • Page 57: Siren Sound And Turn Light Signals

    Please, note that login and password are case sensitive. Cannot login to the individual page If you have changed the password, you can reset it to the in pandora-on.com online service. factory value (written on the plastic card) using a link on the login web page.

  • Page 58: System Modules Layout

    Ask the installer to mark system’s modules on the picture provided. This information can be important for diagnostics in case system malfunctions. Base unit RF-module VALET button Blocking radio relay GSM antenna Automatic start module GPS-receiver Additional sensor Car service and security system Pandora Elite...

  • Page 59: Warranty Obligations

    Warranty obligations Manufacturer guarantees correct operation of the service-security system if exploitation, installation, storage and transportation conditions described in this manual were met. The system should only be used according to installation scheme and user manuals. The system is meant to be installed by the professional car electronics installers. We recognize that outside Russia the system can be installed by amateurs –...

  • Page 60: Installation Certificate

    Car model__________________________________________________________________________________ Type______________________________________________________________________________________ ID number (VIN)_____________________________________________________________________________ Registration number_________________________________________________________________________ Security system specifications: Model Pandora Elite Serial number______________________________________________________________________________ Service center name, full address and installer’s stamp_________________________________________ __________________________________________________________________________________________ __________________________________________________________________________________________ Signature_____________________/___________________________________/ Signator Work accepted________________/___________________________________/ Signator Date «____»___________________20___y Car service and security system Pandora Elite...

  • Page 61: Acceptance Certificate

    Acceptance certificate Pandora Elite is in conformity with Electromagnetic Compatibility Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC Serial number ______________________________________________ Date of production _________________________________________________ Responsible person’s signature (stamp) Packager ___________________________________________________ Signature (personal stamp) Warranty card Model Pandora Elite Serial number ______________________________________________ Date of purchase «____»...
  • Page 62 Car service and security system Pandora Elite...
  • Page 63 User manual...
  • Page 64 Car service and security system Pandora Elite...
