- Page 1 Pandora would like to thank you for choosing our immobilizer Pandora Immo CAR IMMOBILIZER USER INSTALLATION MANUAL Product is in conformity pandorainfo.com with Electromagnetic Compatibility Made in Russia Directive EMC 2004/108/EC and R&TTE 20a, Kirova str., Kaluga, Russia Directive 1999/5/EC...
-
Page 2: Table Of Contents
Table of contents General information System features System set System operation Immobilizer mode Antihijack 1 Antihijack 2 Algorithms of unconditional engine blocking and blocking when starts moving Status output Immobilizer tag Replacing immobilizer tag battery Emergency deactivation of immobilizer tag. Maintenance/valet mode Pandect BT mobile app App’s installation... -
Page 3: General Information
GENERAL INFORMATION Pandora is a brand of Russian Experimental Engineering Factory, a full production cycle electronics R&D facility. We design and produce car service- security systems for more than 10 years and have reached a considerable success on Russian and post-communist markets – biggest security system markets in the world. -
Page 4: System Features
4. Leather case for tags 5. Beeper (compact sound emitter) 6. User installation manual 7. Fastening kit 8. Packaging Manufacturer reserves the right to change set and construction of the product to improve its technological and operational parameters without notification. Pandora Immo... -
Page 5: System Operation
SYSTEM OPERATION To authorize owner and then disable engine blocking, immobilizer tag should be carried. When the ignition is being switched on, note the sound notification of the tag detection. If there is no notification, engine can be blocked. Check the immobilizer tag, so absence of sound notification can be caused by discharged battery, tag failure, a temporary loss of signal with the base unit. -
Page 6: Immobilizer Mode
Ignition No sound Engine switching on when signal blocking tag is not detected is enabled Pandora Immo... -
Page 7: Antihijack 1
Antihijack 1 Originally disabled setting. AntiHiJack mode helps to prevent aggressive seizure of the vehicle using delayed engine blocking when the immobilizer tag is lost. WARNING! THIS ALGORITHM CAN BE SET VIA MOBILE APP. Ignition Sound signal Engine Engine switching on to detect tag blocking is lost... -
Page 8: Algorithms Of Unconditional Engine Blocking And Blocking When Starts Moving
THIS ALGORITHM CAN BE SET VIA MOBILE APP. Status output Analogue negative output of immobilizer Pandora Immo is designed to work with additional devices of third-party manufacturers. Status output operation algorithm can adjust the event when negative potential signal will be sent to the status output of the immobilizer base unit: 1. - Page 9 WARNING! ALGORITHM 1 ‘WHEN IMMOBILIZER TAG IS DETECTED’ CANNOT BE DISABLED IN MAINTENANCE/VALET MODE. IT WILL OPERATE ACCORDING TO SELECTED LOGIC. Algorithms of outputs operation, sound notifications, engine blocking Immobilizer Antihijack 1 Antihijack 2 Ignition 1. The first switching on ignition: blocking will be switching on performed in 15 seconds.
- Page 10 MANUFACTURER TO IMPROVE IMMOBILIZER OPERATION. Sound signals ‘Tag is detected’ – this signal will be sound when the ignition is switched on and tag is in radio coverage zone. ‘Tag’s battery is discharged’ – battery of immobilizer tag is low on power. Pandora Immo...
-
Page 11: Immobilizer Tag
This signal will sound: 1. When the ignition is being switched on (three beeps). 2. Every minute when the ignition is switched on (three beeps). ‘Blocking is enabled’ – sound signal will emitted when there is any blocking algorithm (immobilizer, Antihijack 1, Antihijack 2). Single tones that become more frequent –... -
Page 12: Replacing Immobilizer Tag Battery

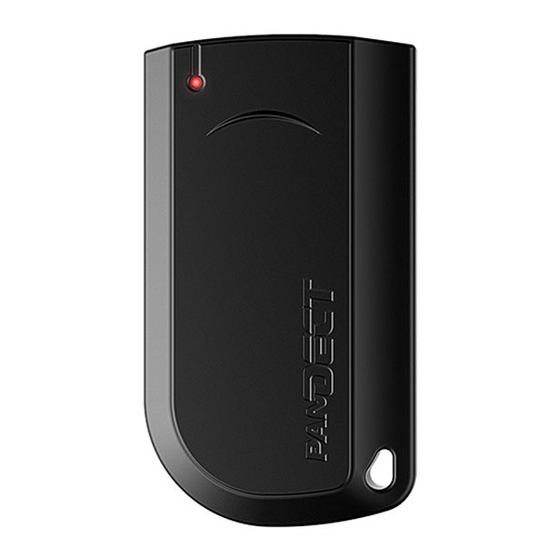

To check the battery when there is no connection with the base unit, shortly press built-in tag’s button: LED indicator will confirm serviceability of battery with 1 flash. If LED indicator is lit for longer, or does not light at all, the tag’s battery should be replaced. Open here Pandora Immo... -
Page 13: Emergency Deactivation Of Immobilizer Tag
Carefully open the cover of the tag’s battery compartment. Extract discharged battery and insert a new one keeping in mind the correct polarity. Replacing a battery will not cause a loss of tag code information, as authorization data is stored in the non-volatile memory of the MCU. Carefully close the cover of the tag’s battery compartment. - Page 14 Disabling procedure is similar to enabling one. 3. Mobile app. ‘Enabling of maintenance/valet mode’ detailed description on page 17. WARNING! IF THE TAG’S BATTERY IS DISCHARGED/ABSENT OR THE TAG IS DEFECTIVE, MAINTENANCE/VALET MODE CANNOT BE ENABLED VIA IMMOBILIZER TAG. Pandora Immo...
-
Page 15: Pandect Bt Mobile App
PANDECT BT MOBILE APP The main function of mobile app is adjusting of immobilizer, control over maintenance/valet mode, checking of immobilizer tags. This app is available only on Android with Bluetooth 4.0. Connection between the base unit and mobile app is performed via special code channel Bluetooth Smart, providing information about protection against connection hijacking and immobilizer control. -
Page 16: Using App
Radius of tag’s detection zone Status output Open door status Number of recorded remotes into the system’s memory No tag Tag’s frequency -50dBm -70dBm Tag’s battery voltage 2,94V 2,92V Tag’s button press Maintenance/valet mode Enable Valet mode is enabled/disabled Pandora Immo... -
Page 17: Enabling Maintenance/Valet Mode
Enabling maintenance/valet mode This mode is intended to put system into maintenance mode be- fore handing it to the car service or car wash service with ability to select maintenance mode period. If the vehicle is handed into service for a long time, select the ‘Unlimited’... -
Page 18: Settings Menu
Antihijack 2). Algorithm operation descripion is in ‘Antihijack mode’ section. STATUS OUTPUT – selection of status output mode (Tag is in radio zone, Engine blocking). Algorithm operation descripion is in ‘Status output’ section. TAG’S DETECTION THRESHOLD – changing of radius of tag’s detection Pandora Immo... - Page 19 zone (–127 – max threshold of tag’s detection, 0 – minimus threshold). TAG MOTION SENSOR SENSITIVITY – setting of built-in accelerometer sensitivity in immobilizer tag. Set sensitivity is from 0 to 7. Level 0 is lowest sensitivity level, 7 is the highest one. When there is no movement, immobilizer tag will proceed to energy saving mode, stopping information sending via radio channel.
-
Page 20: Installation And Configuration Of The System
PIN-code. Switch on the ignition. If PIN-code is incorrect, ‘PIN-code is incorrect’ ringtone will sound, the system will return to the beginning of PIN-code entering procedure. If PIN-code is correct, six 5-second-long beeps will sound. Pandora Immo... -
Page 21: Programming Menu
Programming menu Tags programming The rst beep Exit programming 5 sec. mode mode Press and hold button for 6 sec. Maintenance/valet The second beep mode 5 sec. The third beep Deleting of mobile device 5 sec. Entering new PIN-code Con rming new PIN-code The fourth beep Changing The 1st... - Page 22 The first digit of new PIN-code will correspond to the number of beeps from 1 to 9 when the ignition is switched on, zero will correspond to the switching off the ignition after tenth beep. Switch on the ignition. ‘Enter PIN-code’ ringtone will sound twice (the Pandora Immo...
-
Page 23: The System Installation
Download the software via Pandect BT mobile app (detailed description ‘Software update’ on page 19). The system installation Immobilizer Pandora Immo is designed to be installed on vehicles with on-board voltage of 12V. Blocking module should be placed in any remote cavities of the car body that are not available for inspection without partial disassembly of the body, engine or interior components. - Page 24 TO INSTALL THE SYSTEM COMPONENTS, SELECT PLACES THAT EXCLUDE THEIR MECHANICAL DAMAGE OR AGGRES- SIVE LIQUIDS AND WATER SEEPING ON THEM. WARNING! IMMOBILIZER IS A MAINTENANCE-FREE DEVICE. DO NOT DISASSEMBLE THE BODY. IN CASE OF FAILURE, REPAIR SHOULD BE PERFORMED IN AUTHORIZED WORKSHOPS. Pandora Immo...
-
Page 25: Installation Scheme
Installation scheme +12V Beeper Black Status output +12V Driver’s Code channel door trigger +12V Ignition Status output ‘on fact of blocking’ Circuit being blocked User manual... -
Page 26: Wiring Description
Positive output of beeper connects to the ignition switch or to appropriate wire where 12V voltage appears when ignition is switched on and doesn’t disappear until the moment ignition is Pandora Immo... - Page 27 switched off. LED can be connected in parallel to beeper throughout resistor with resistance of 1000…1500 Ohm. WARNING! DO NOT CONNECT IGNITION CONTACT WITHOUT BEEPER TO THE CAR CIRCUITS DIRECTLY. Wire 4 (Code channel) It is special digital output that is used when connecting additional devices.
-
Page 28: Specifications
CR2032 (not shipped with the system) Radio frequency, GHz 2,4 – 2,5 2,4 – 2,5 Type of control code Dynamic dialogue Bluetooth Smart Operating temperature From -40 to 85 From -20 to 70 range, (limited by battery features) Pandora Immo... -
Page 29: Warranty Obligations
WARRANTY OBLIGATIONS Manufacturer guarantees correct operation of the service-security system if exploitation, installation, storage and transportation conditions described in this manual were met. The system should only be used according to installation scheme and user manuals. The system is meant to be installed by the professional car electronics installers. - Page 30 Packaged products should be stored on racks in piles of 6 or less boxes, in enclosed, dry, heated rooms (no less than 1m from heating) which exclude possible interaction with moisture, oil products and damaging environmental factors. Pandora Immo...
-
Page 31: Installation Certificate
Car specifications Car model _________________________________________________________ Type ______________________________________________________________ ID number (VIN) ____________________________________________________ Registration number ________________________________________________ Security system specifications: Model Pandect Immo Serial number _______________________________________________________ Service center name, full address and installer’s stamp ________________ ___________________________________________________________________ Signature _________________/_________________________________/ Signator Work accepted ________________/_____________________________/ Signator Date «____»___________________20___y... -
Page 32: Acceptance Certificate
ACCEPTANCE CERTIFICATE Pandora Immo is in conformity with Electromagnetic Compatibility Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC Serial number ____________________________________________ Date of production ___________________________________________ Responsible person’s signature (stamp) Packager _________________________________________________ Signature (personal stamp) WARRANTY CARD Model Pandora Immo Serial number ____________________________________________ Date of purchase «____»...
