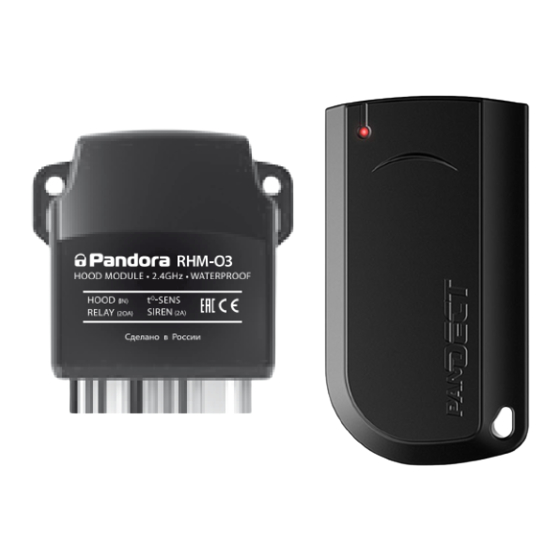

Pandora DXL 1920L/1930L
voltage of 12V. It is a complex engineering solution which includes car security system, telemetry,
remote and automatic engine start and various service options, all controlled from your OEM key
remote, smartphone or online service.
Pandora DXL 1920L/1930L
When building
world's best manufacturers. The device is built using high-precision mounting and control machinery,
thus we guarantee highest possible quality, reliability and stable technical characteristics for the whole
Pandora DXL 1920L/1930L
operation period.
unique dialog algorithm and individual 128 bit encryption key on every device. We guarantee 100%
protection form electronic hacking for the whole operation period.
The system is built for your convenience: it's ergonomic, reliable, has the highest security and
service characteristics, 3 years unconditional warranty and free service and support on the territory of
Russain Federation and nearest states. We are happy to provide any support we can – feel free to use
our online support.
WARNING! IT IS STRONGLY ADVISED TO HAVE PROFESSIONAL CAR MECHANIC IN-
STALLING THE SYSTEM. ANY CAR ELECTRONICS INSTALLER SHOULD BE ABLE TO
INSTALL PANDORA DXL 1920L/1930L USING INSTALLATION SCHEME IN THIS MAN-
UAL AND ALARMSTUDIO SOFTWARE. MOST FEATURES ARE HIGHLY DEPENDENT
ON COMPETENT INSTALLATION. OUR SYSTEMS ARE THOROUGHLY TESTED FOR
QUALITY, SO IF A FEATURE FAILS TO PRODUCE EXPECTED RESULTS, MOST LIKELY
THE PROBLEM IS IN IMPROPER INSTALLATION
This device has limited external factors resistance. It should not be subjected to water beyond occasional splatter, or operated in
temperatures outside -40 to +80° C range
IMPORTANT! Note that this manual describes remote and manual functions for the most
part. Functionality of the system is vast and would require a book-sized manual to fully describe.
Instead we use handy software named AlarmStudio that functions as both programming tool and
an extended installation & functionality manual. It requires Windows and can be downloaded at
pandorainfo.com
www.pandorainfo.com
Our web site:
Customer support:
– is a premium car service-security system, built for cars with on-board
support@pandorainfo.com
Pandora would like to thank you for choosing
our DXL 1920/1930 service and security system
we were using the most up-to-date electronics from
has a cryptographically strong authorization code with
Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC
