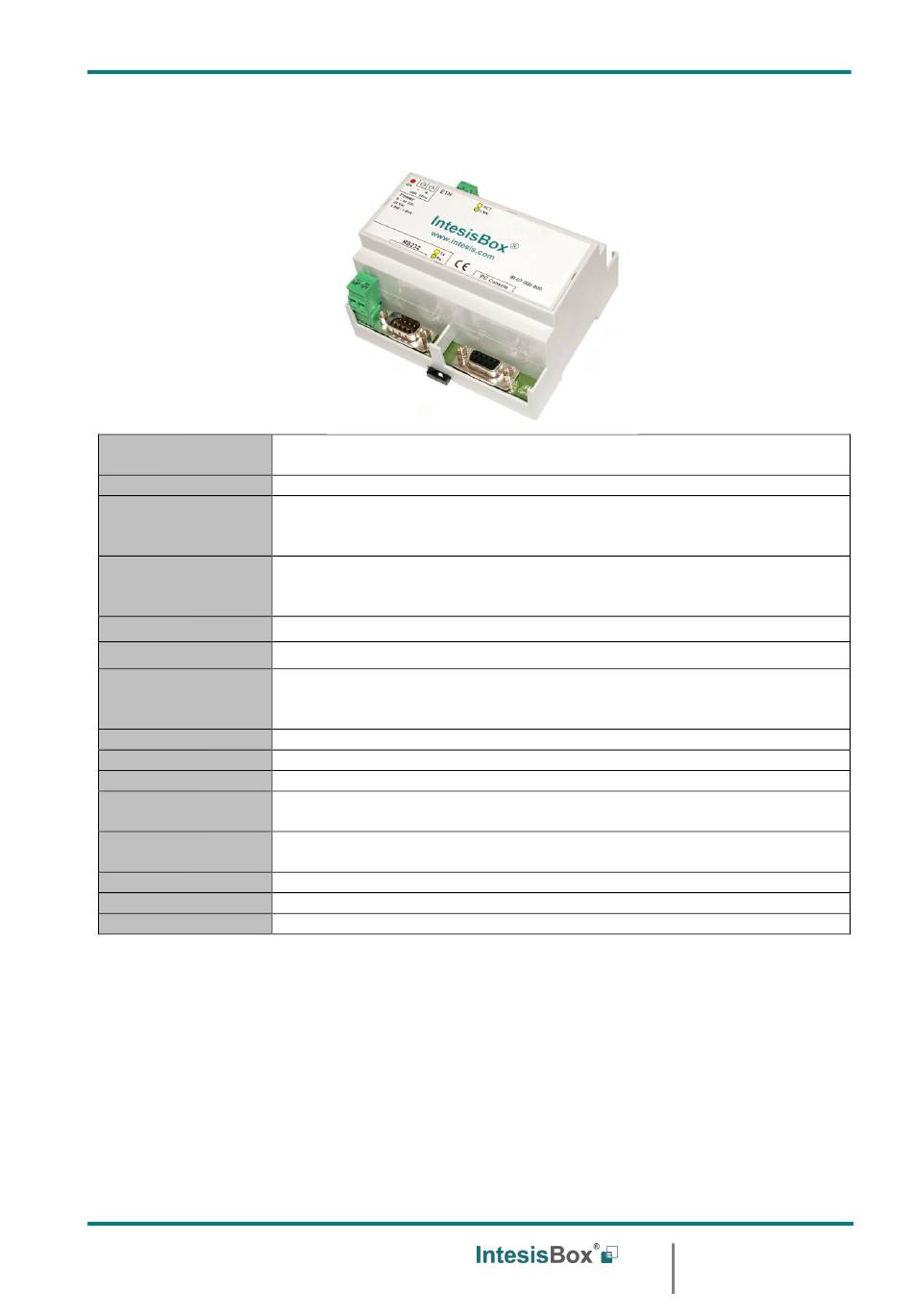

9. Mechanical & electrical characteristics
Enclosure
Colour
Power
Mounting
ASCII port
BACnet IP port
LED indicators
Console port
Configuration
Firmware
Operational
temperature
Operational
humidity
Protection
RoHS conformity
Certifications
.
Doc: IntesisBox ASCII Server - BACnet IP client v10 r15 eng.pdf
© Intesis Software S.L.U. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SLU
ASCII Server - BACnet IP
Plastic, type PC (UL 94 V-0). Dimensions: 107mm x 105mm x
58mm.
Light Grey. RAL 7035.
9 to 30Vdc +/-10% 1.4W.
24Vac +/-10% 1.4VA.
Plug-in terminal block for power connection (2 poles).
Surface.
Wall.
DIN rail EN60715 TH35.
1 x EIA-232. (DB9 male connector DTE)
1 x Ethernet 10BT RJ45.
1 x Power.
2 x ASCII port activity (Tx, Rx).
2 x Ethernet port link and activity (LNK, ACT).
EIA-232. DB9 female connector (DCE).
Via EIA-232 serial port or Ethernet TCP/IP port
Allows upgrades via console port.
-40°C to +70°C
5% to 95%, non-condensing
IP20 (IEC60529).
Compliant with RoHS directive (2002/95/CE).
CE
