1.5.7 Creating Vent Openings in the Mounting Backplate
1. Cut out the intake and exhaust openings in the mounting backplate. The openings must match the vent openings in the
back panel. See the product-specific dimensions in Illustration 1.14 and Illustration 1.15.
2. For the D5h/D6h enclosures, perform the following steps:
2a Drill 4 mounting holes near the top of the mounting backplate.
2b Drill the 4 screw holes around the exhaust (top) vent openings and insert 4 M5 X 12 pem studs.
2c Drill the 4 screw holes around the intake (bottom) vent openings and insert the 4 M5 X 12 pem studs.
3. For the D7h/D8h enclosures, perform the following steps:
3a Drill 4 mounting holes near the top of the mounting backplate.
3b Drill the 8 screw holes around the exhaust (top) vent openings and insert 8 M5 X 12 pem studs.
3c Drill the 8 screw holes around the intake (bottom) vent openings and insert the 8 M5 X 12 pem studs.

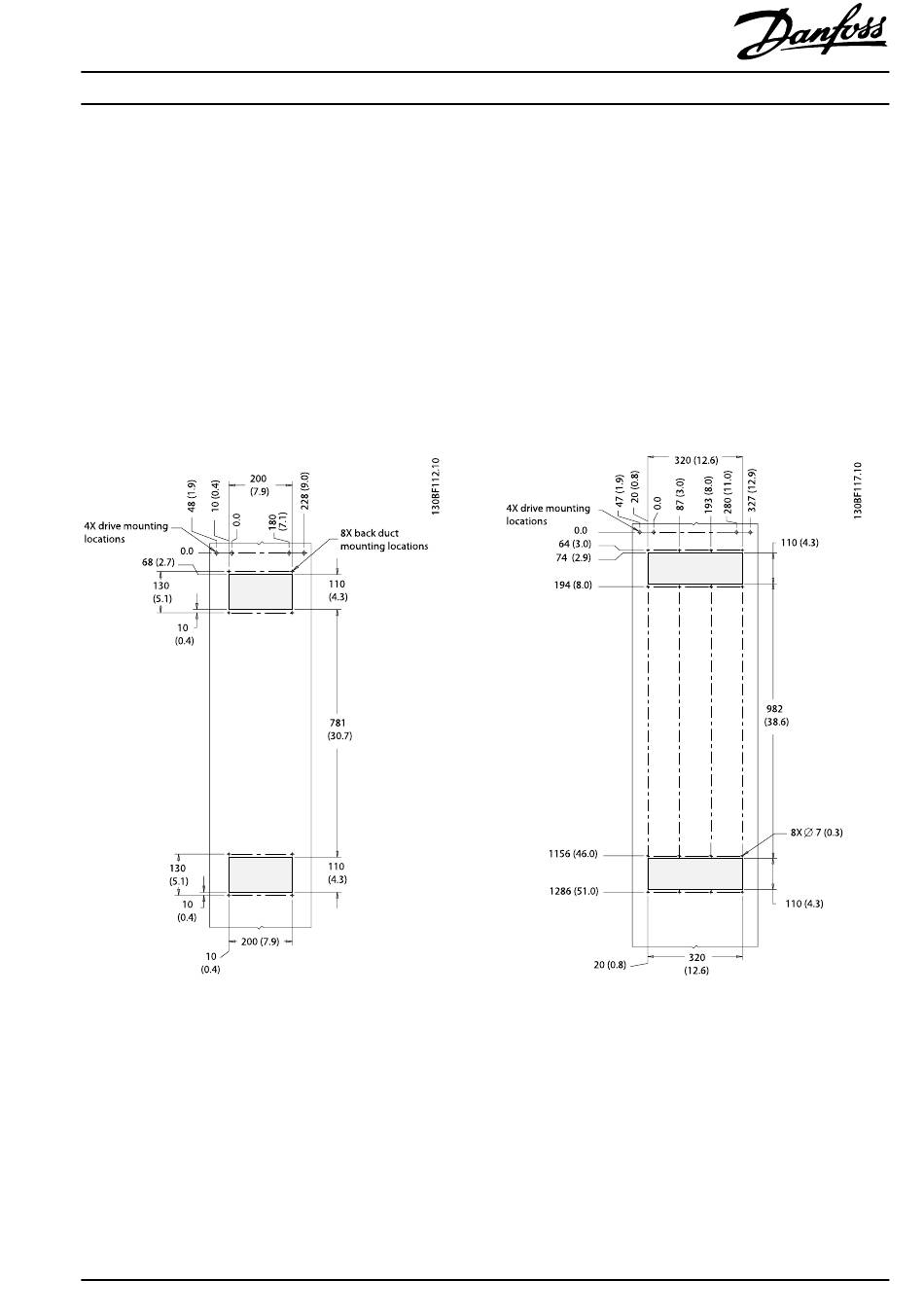

Illustration 1.14 Vent Opening Dimensions for the Mounting
Backplate, D5h/D6h
MI70F102
In-back/Out-back Cooling Kit for D5h/D6h and D7h/D8h Enclosures VLT® Series FC 102, FC 202,
and FC 302
Illustration 1.15 Vent Opening Dimensions for the Mounting
Backplate, D7h/D8h
