Installation Instructions
1.5.5 Installing Gaskets to the Back of a
D5h/D6h Enclosure
APPLYING GASKETS
This kit contains gaskets to ensure a proper seal between
metal parts. Before adhering a gasket to a part, check that
the part matches the gasket and that no holes are covered.
Remove paper backing and place the sticky side on the part.
For the following steps, refer to Illustration 1.12.
D5h/D6h enclosures with a pedestal
1.
Install the mounting gasket (1) to the top of the
enclosure.
2.
Install 1 of the vent gaskets (5) around the exhaust
vent opening on the back of the enclosure.
3.
On top of the gasket, install the exhaust spacer (2) to
the back of the enclosure panel using 6 M5x18
screws. Torque to 5.1 Nm (45 in-lb).
4.
Install 1 of the vent gaskets (5) to the exhaust spacer.
5.
Apply the 2 labels (6) over the back-channel form
holes.
6.
Install 1 of the vent gaskets (7) around the intake
vent opening on the back of the enclosure.
7.
On top of the gasket, install the intake spacer (3) to
the back of the enclosure panel using 6 M5x18
screws. Torque to 5.1 Nm (45 in-lb).
8.
Install 1 of the vent gaskets (7) to the intake spacer.
9.
Install the slot gasket (4) to cover the mounting holes
used to secure the enclosure to the base plate.
MI70F102
In-back/Out-back Cooling Kit for D5h/D6h and D7h/D8h Enclosures VLT® Series FC 102, FC 202,
and FC 302
D5h/D6h enclosures without a pedestal
1.
2.
3.
4.
1
Mounting gasket
2
Exhaust spacer (Used on pedestal units only)
3
Intake spacer (Used on pedestal units only)
4
Slot gasket
5
Exhaust vent gaskets
6
Label
7
Intake vent gaskets
1) Gasket between vent spacer and mounting backplate/wall is used
only on pedestal-mounted units.

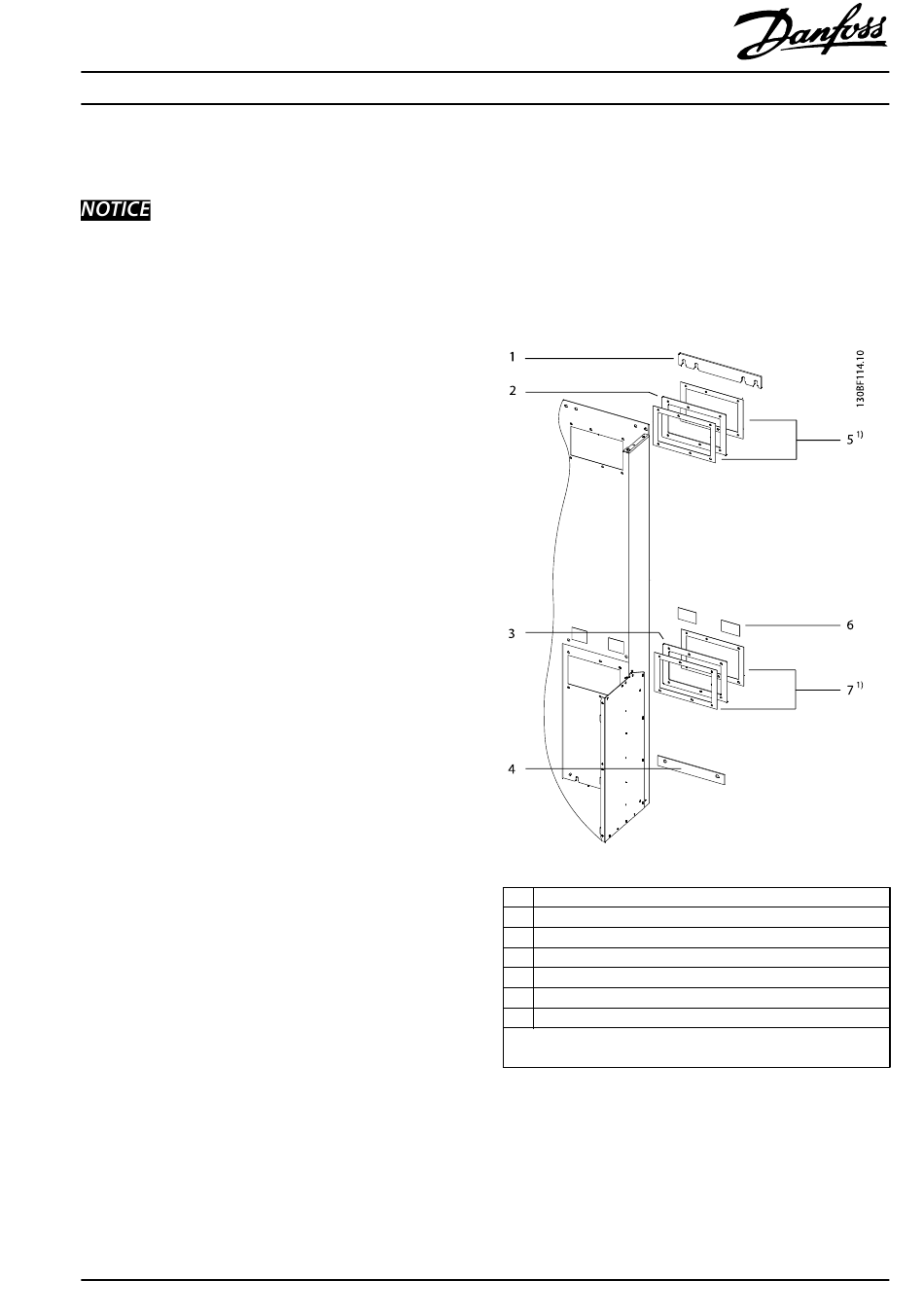

Illustration 1.12 Installing Sealing Gaskets to Back Panel for the
D5h/D6h Frequency Converters
Danfoss A/S © 10/2016 All rights reserved.
Install 1 of the vent gaskets (5) around the exhaust
vent opening on the back of the enclosure.
Apply the 2 labels (6) over the back-channel form
holes.
Install 1 of the vent gaskets (7) around the intake
vent opening on the back of the enclosure.
Install the slot gasket (4) to cover the mounting holes
used to secure the enclosure to the base plate.
7
