Installation Instructions
1 Nut, 13 mm
2 Nut, 8 mm
3 Ground plate

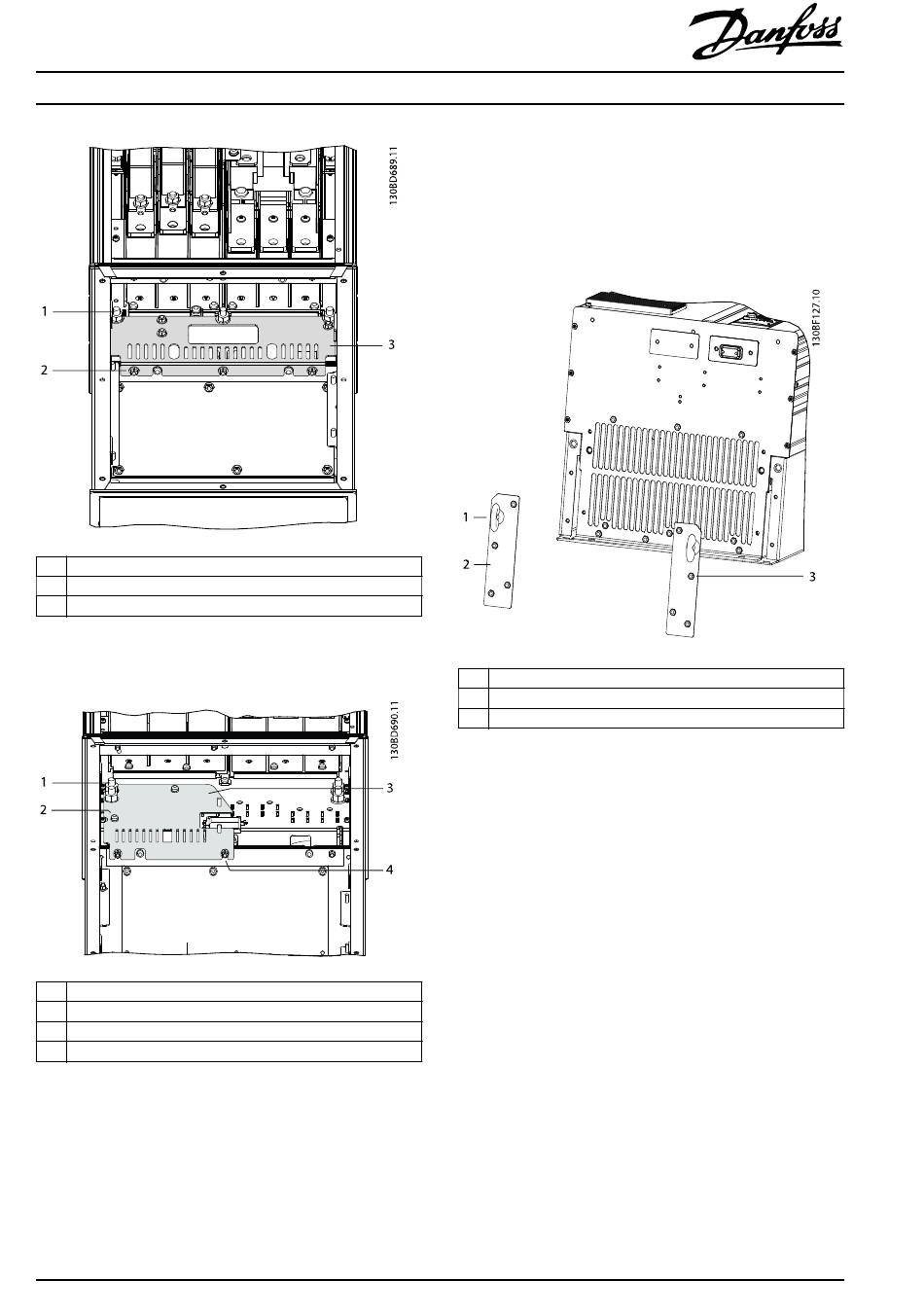

Illustration 1.7 Removing the Ground Plate (Smaller Configuration)
1 Nut, 13 mm
2 Screw, M5x12
3 Ground plate
4 Nut, 8 mm
Illustration 1.8 Removing the Ground Plate (Larger Configuration)
4
In-back/Out-back Cooling Kit for D5h/D6h and D7h/D8h Enclosures VLT® Series FC 102, FC 202,
and FC 302
6.
1 M10 eyebolt on top of frequency converter
2 Top connector plate
3 Screw, M5x12 on connector plate
Illustration 1.9 Removing the Top Connection Plates
7.
Danfoss A/S © 10/2016 All rights reserved.
Unfasten the top of the frequency converter from the
top of the options enclosure. See Illustration 1.9.
6a Unscrew the 2 M10 eyebolts.
6b Remove 4 M5x12 screws from each top
connector plate.
6c Remove the top connector plates.
Unfasten the base of the frequency converter from
the options enclosure.
7a Make sure the unit is on its back.
7b Remove five 8 mm nuts (D5h and D7h) or
six 8 mm nuts (D6h and D8h). See
Illustration 1.9.
7c Lift and slide the frequency converter from
the open channel of the options enclosure.
