Installation Instructions

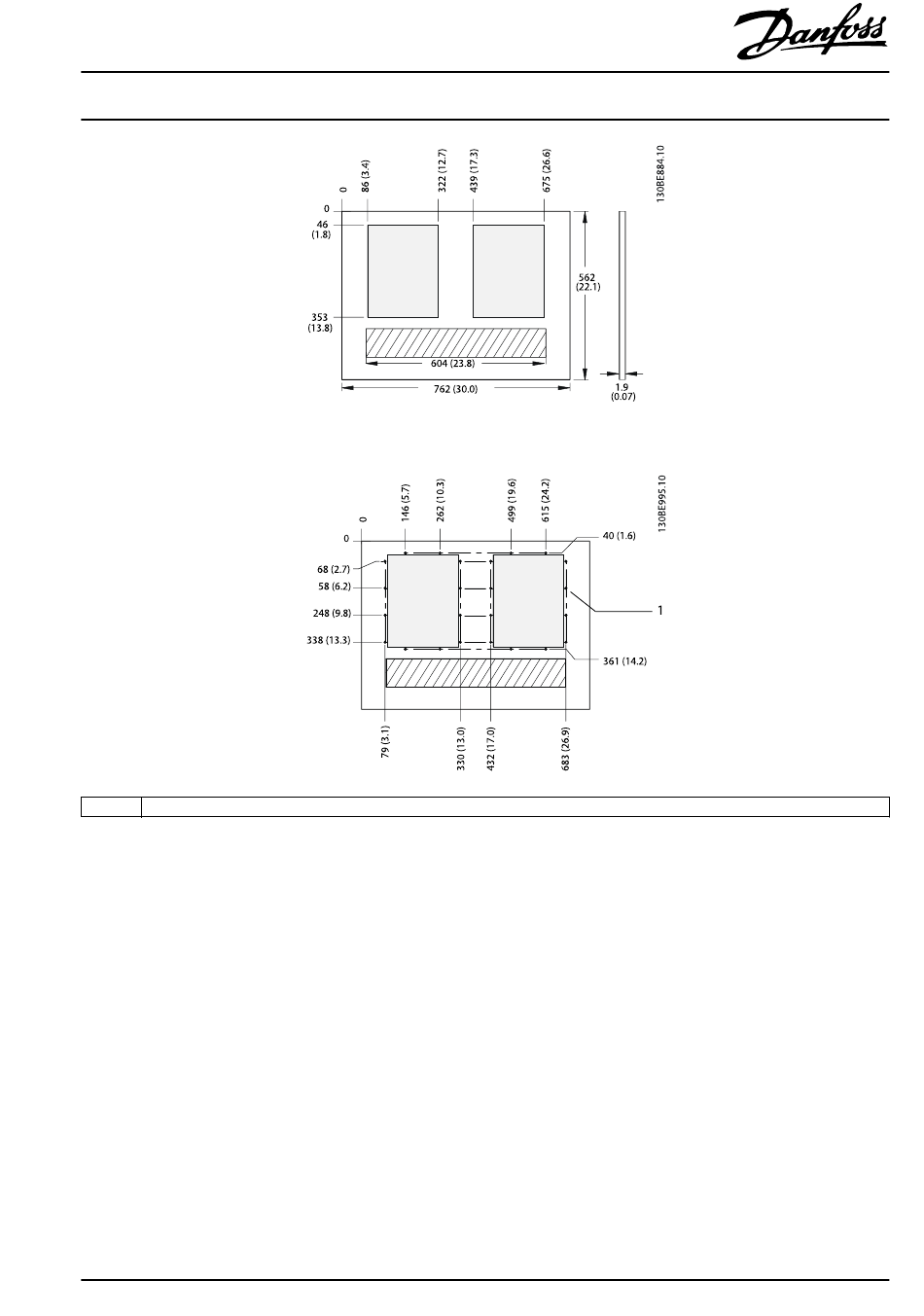

Illustration 1.9 Vent Opening Dimensions for the Base Plate
1
M5 pem nut (24 total on base plate)
Illustration 1.10 M5 Pem Nut Dimensions on the Base Plate
MI92M102
In-bottom/Out-top Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
