Installation Instructions

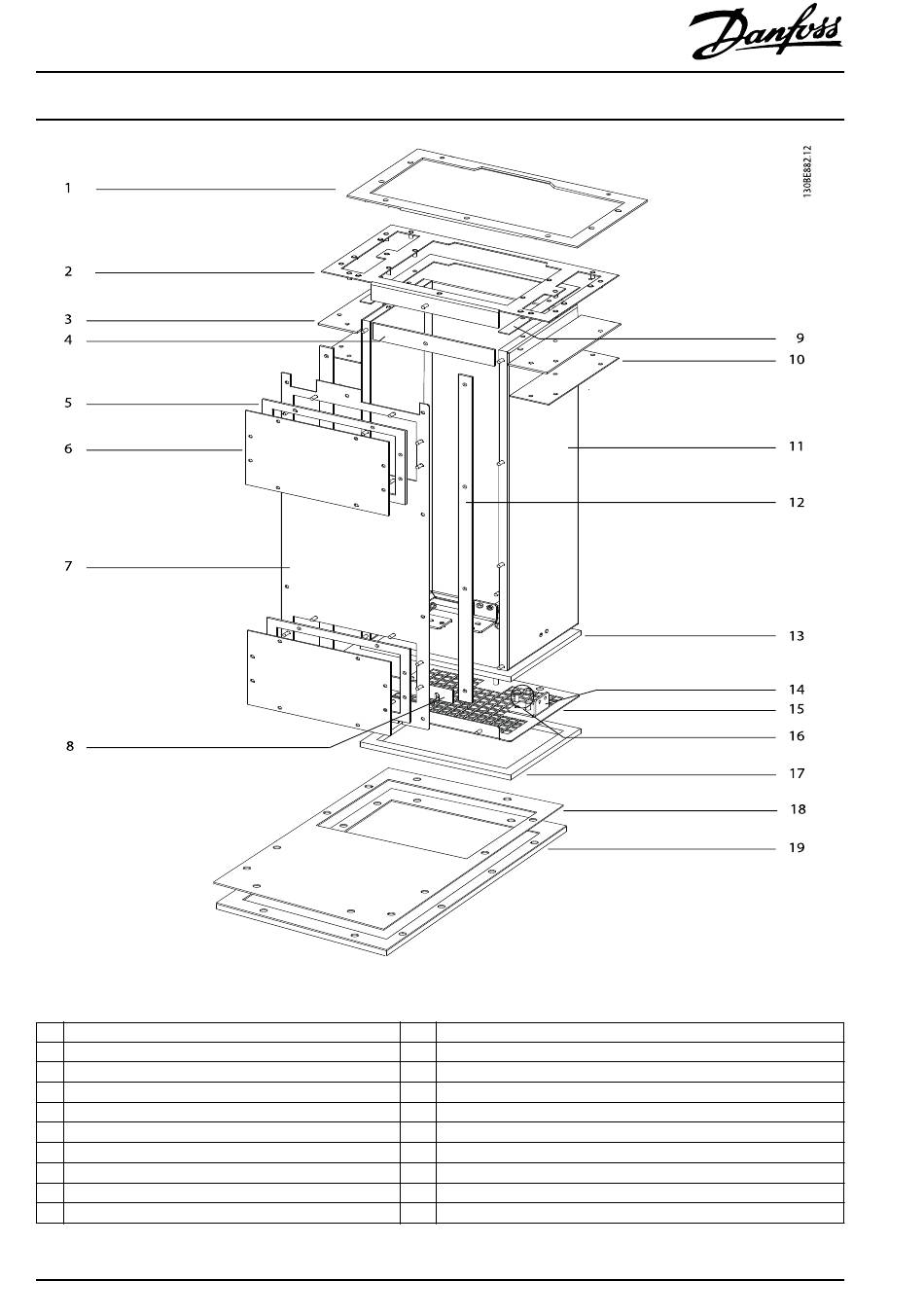

Illustration 1.4 Assembling the Lower Duct Enclosure
1 Gasket between the top plate and the module
2 Top plate between module and lower duct
3 Gasket, top side plate
4 Gasket, upper strip on back side of duct
5 Gasket between front plate and access plate
6 Access plate
7 Front plate
8 Gasket, lower strip on back side of duct
9 U-shaped gasket
10 Top side plate
4
In-bottom/Out-top Cooling Kit for VLT®
Parallel Drive Modules
VLT® Series FC 102, FC 202, and FC 302
11 Duct enclosure
12 Gasket, side rail on back side of duct
13 Gasket between grill and duct enclosure
14 Bracket
15 Grill
16 Screw/washer assembly for bracket
17 Gasket between grill and gland plate
18 Base cover plate
19 Gasket between base cover plate and base plate
– –
