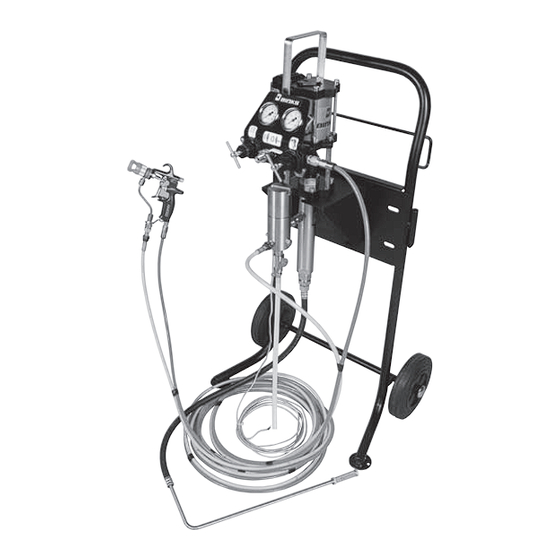

Binks MX432 User Manual

Binks MX432 User Manual

32:1 pump systems for air assist & airless finishing
Hide thumbs Also See for MX432:

Advertisement

Quick Links

32:1 Pump Systems for
Air Assist & Airless Finishing
SPECIFICATIONS
Ratio:
Maximum air inlet pressure:
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Air consumption @ 20 cycles/min:
Maximimum recommended
continuous cycle rate:
Air inlet connection:
Air piston diameter:
Stroke length:
Fluid inlet connection:
Fluid outlet connection:
Wetted parts materials of
construction:
Sound level:
We reserve the right to change the specifications without prior notice.
© Binks 2012
MX432
Patent Pending
32:1
8 bar [116 psi]
256 bar [3712 psi]
24 cc [0.8 oz]
1.4 L/m [0.4 gal/m]
147 L PM [5.2 SCFM] @20 LPM
20 cycles/min
3/8" BSP(m) and 1/4" NPS(m)
85 mm [3.3 in]
75 mm [3.0 in]
1/2" NPS(m)
3/8" BSP(m) / 3/8" NPS(m)
Stainless Steel, Tungsten Carbide,
Hard Chrome, PTFE, Polyethylene,
Leather
96.2 dB
77-2915R-1
page 1 of 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX432 and is the answer not in the manual?

Questions and answers

Summary of Contents for Binks MX432

  • Page 1 3/8" BSP(m) / 3/8" NPS(m) Stainless Steel, Tungsten Carbide, Wetted parts materials of Hard Chrome, PTFE, Polyethylene, construction: Leather Sound level: 96.2 dB We reserve the right to change the specifications without prior notice. 77-2915R-1 © Binks 2012 page 1 of 16...
  • Page 2 IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING BINKS AND DEVILBISS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). 77-2915R-1 page 2 of 16...
  • Page 3 2. Periodically inspect all hoses for leaks parts in the pump. Consult your BINKS 2. Make sure the pump is grounded. and/or abrasions and tighten all representative for pump materials of NEVER operate the unit when it is on connections before use.
  • Page 4 As the manufacturer of the items listed below: Piston Pumps MX412 MX432 Declare, under our sole responsibility, that, the equipment to which this document relates is in conformity with the fol- lowing standards or other normative documents: EN 13463-1:2009, EN 13463-5:2005, EN 982:1996 + A1:2008, EN 983:1996 + A1:2008 and EN 12621:2006...
  • Page 5: Startup And Operation

    STARTUP AND OPERATION (Part numbers referenced are contained regulator by fully unscrewing the the length of the material lines and in the MX432 bare pump assemblies part regulating screw. Thereafter rotate the solubility of the spray material. sheet: 77-2907-EU.) the regulating screw clockwise until...
  • Page 6 Operate the gun trigger and close the high pressure Do not allow spray material or solvent Once work is completed, the BINKS ball valve (0114-019091). The spray to soak into the ground. pump must be thoroughly cleaned.
  • Page 7 0115-010001 SOCKET HEAD CAP SCREW 0115-010030 M8 HEX NUT 0115-010031 M8 LOCKWASHER 0115-010035 M8 PLAIN WASHER MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 77-2907-EU MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 77-2907-EU 0115-010180 AIR ASSIST AIR CONTROL 0115-010198 AIRLESS AIR CONTROL 0110-009130...
  • Page 8 0115-010001 SOCKET HEAD CAP SCREW 0115-010030 M8 HEX NUT 0115-010031 M8 LOCKWASHER 0115-010035 M8 PLAIN WASHER MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 77-2907-EU MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 77-2907-EU 0115-010180 AIR ASSIST AIR CONTROL 0115-010198 AIRLESS AIR CONTROL 0110-009130...
  • Page 9 0015-0432D-AC 0015-0432D-AC-P 0015-0432D-AL 0015-0432D-AL-P BULLETIN 0115-010100 TRIPOD ASSEMBLY 0115-010227 SOCKET HEAD CAP SCREW MX432PL MX432 BARE PUMP ASSEMBLY (PTFE/LEATHER) 77-2907-EU MX432PP MX432 BARE PUMP ASSEMBLY (PTFE) 77-2907-EU 0115-010180 AIR ASSIST AIR CONTROL 0115-010198 AIRLESS AIR CONTROL 0115-010106 INLET SUCTION TUBE ASSEMBLY (50 mesh)
  • Page 10: Specifications

    STAINLESS STEEL HIGH PRESSURE FILTER ASSEMBLIES 0115-010326 (100 MESH FILTER ELEMENT) 0115-010630 (200 MESH FILTER ELEMENT) SPECIFICATIONS Max working pressure: 272 bar [3945 psi] Fluid inlet connection: 3/8" BSP (f) Fluid outlet connection: 1/4" NPS (m) Wetted parts materials of Stainless Steel, PTFE construction: Additional filter mesh sizes (sold separately):...
  • Page 11 0115-010180 AIR ASSIST AIR CONTROL ASSEMBLY PARTS LIST When ordering, please specify Part No. ITEM PART DESCRIPTION QTY. 0115-010181 ELBOW FITTING ..........2 0115-010185 TUBING ............1 3 0115-010183 • AIR REGULATOR ....1 0–160 PSI (0–11 BAR) 0115-010189 QUIK CLAMP ..........2 0115-010188 MANIFOLD BLOCK ........
  • Page 12 0115-010198 AIRLESS GUN AIR CONTROL ASSEMBLY PARTS LIST When ordering, please specify Part No. ITEM PART DESCRIPTION QTY. 0115-010181 ELBOW FITTING ..........2 0115-010185 TUBING ............1 3 0115-010183 • AIR REGULATOR ....1 0-160 PSI (0-11 BAR) 0115-010189 QUIK CLAMP ..........1 0115-010188 MANIFOLD BLOCK ........
  • Page 13: System Accessories

    SYSTEM ACCESSORIES 0115-010100 TRIPOD ASSEMBLY PARTS LIST When ordering, please specify Part No. ITEM PART DESCRIPTION QTY. 0115-010101 PUMP MOUNTING PLATE ......1 0115-010210 TRIPOD LEG ........... 3 0115-010212 FLAT HEAD SCREW ........6 0115-010211 SELF LOCKING NUT ........6 0115-010236 SUCTION HOSE ASSEMBLY PARTS LIST When ordering, please specify Part No.
  • Page 14 ACCESSORIES FOR YOUR MX432 PUMP WALL BRACKET TROLLEY ASSEMBLY TRIPOD ASSEMBLY 0115-010179 0115-010186 0115-010100 LUBRICATING OIL FOR AIR CONTROLS FX4 FLUID PUMP FLUID FILTER (100 MESH) 0115-010180 (Air Assist) 0114-009433 0110-009130 (Solvent Based Materials) 0115-010198 (Airless) 0114-014871 (Water Based Materials)
  • Page 15 NOTES 77-2915R-1 page 15 of 16...
  • Page 16 This product is covered by Binks’ 1 Year Limited Warranty. Binks European Sales and Service Listing: www. Industrial Finishing Binks has authorized distributors throughout the world. For technical assistance or the distributor nearest you, see listing below. Industrial Finishing: Surfaces et Finitions: Oberflächentechnik GmbH:...
