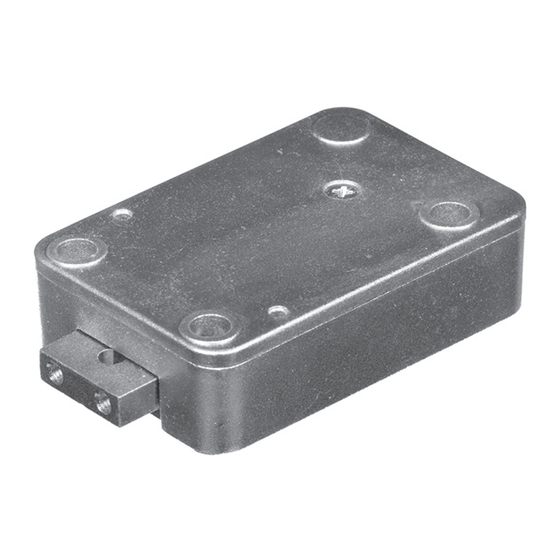

- Page 1 Motor lock EM2520 EM3020 EM3050 Mounting instructions V01 EN M•LOCKS BV Vlijtstraat 40 • 7005 BN Doetinchem • The Netherlands • www.m-locks.com...
- Page 2 EM2520 / EM3020 / EM3050 www.m-locks.com...
-
Page 3: Important Instructions
If the door is not opened within 3 seconds, the lock will automatically lock again. EM3020: After entering a right code, you will hear a double tone, you can now unlock the door and open it. To close the lock you have to push a random key (PTC= Push To Close). - Page 4 The lock has to be fitted exclusively on steel secure storage. The mounting base also must be made of steel. Installation on other materials only after consultation M-LOCKS or VdS . It is recommended to prevent access to unauthorized persons to safety-relevant parts of the high- security lock when the safe is open.
-
Page 5: Mounting Instructions
To remove the connector(s), carefully lift and pull it out. In the entry unit or battery / alarmbox connect a 9V ALKALINE Duracell, Industrial or Energizer batteries. Tie cables away from moving parts. Note: If a cable /spindle hole is located under the Motor lock, use a suitable drill protection; part number T016. Cable-hole 9-12 mm. www.m-locks.com... -
Page 6: Functional Test
• Turn handle towards ‘LOCKED’ position. • For EM3020: Push a random key. You can hear the motor and the bolt will slide to the locked position. • When the lock is closed you will hear a double signal. -
Page 7: Data Sheet
Motor lock DATA SHEET EM2520 / EM3020 / EM3050 / EM3050 S EM3050 AB EM2520 S / EM3020 S Opening Automatic Automatc Automatic Locking Automatic / PTC Automatic / PTC Automatic / PTC Blocking element Blocking gear / Motor Blocking gear / Motor... - Page 8 M•LOCKS BV Vlijtstraat 40 • 7005 BN Doetinchem • The Netherlands • www.m-locks.com...
