M-LOCKS DirectXion EM2010 DX Technical Manual

Technical manual
Mounting instructions
EM2010 DX
CHARACTERISTICS

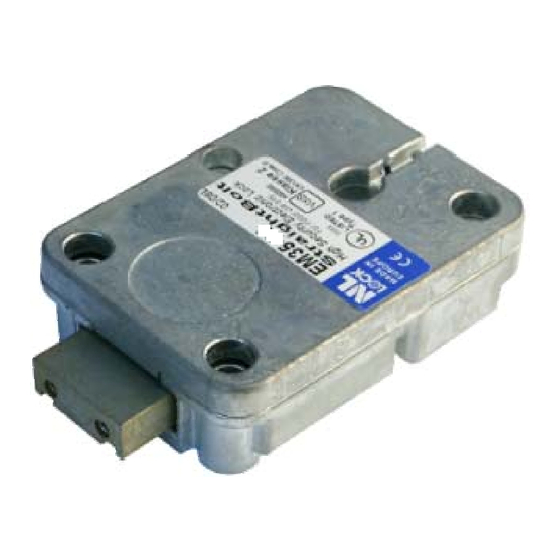

The DirectXion lock can be mounted in all four mounting directions. Also, by flipping the lock,
all blocking directions can be achieved. The mounting dimensions are standard. The lock is
delivered with metric (M6) mounting screws. The PCB board in this lock is intended as an
OEM solution for customers who would like to control the lock via their own electronics. Once
voltage is supplied the lock will open for a 5 seconds and the boltwork can be moved into
OPEN position by pushing the bolt inside the lock case. After 5 seconds the board will cut
power to blocking element regardless if voltage is still supplied from external system. When
moving the boltwork into LOCKED position the DirectXion automatically locks. To open the
lock again the voltage has to be dropped and re-applied.
BOLTWORK REQUIREMENTS and MOUNTING INSTRUCTIONS
The maximum allowed cable/spindle-hole diameter is 12mm (if located under the lock body)
If the DirectXion lock is used in conjunction with another lock, the boltwork must be
constructed in a way that the DirectXion secures first.
M-LOCKS BV
Vlijtstraat 40
NL-7005 BN Doetinchem
In the LOCKED position the distance between the
DirectXion bolt and the boltwork part that is
moving the lock bolt should be approximately 1
mm.
Only use supplied screws to mount the lock.
Tighten the screws securely so the lock body is
attached firmly to the mounting surface.
DirectXion
