M-LOCKS EM3520 User Instructions

USER INSTRUCTIONS
EM3520
Alpha
Series:
fig. A
AL20
AL30
EuroClass :
fig. B
EK50
EuroLine:
EC10
EuroLine
Modular:
fig. C
ST40
fig. D
info@m-locks.com/www.m-locks.com
ENGLISH

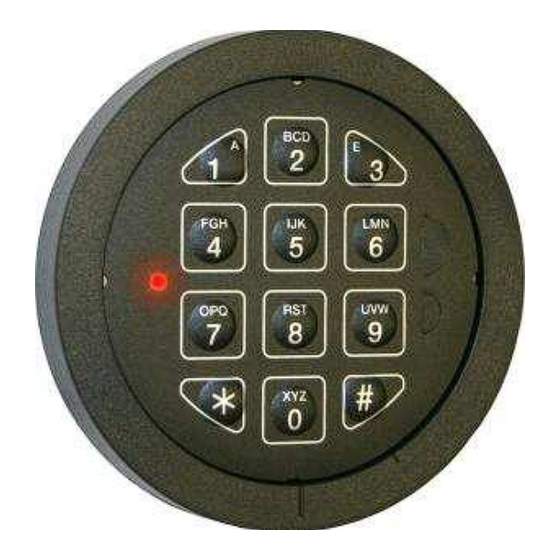

The lock operates with a numeric six-digit code or a word with 6 letters. A secondary code
can be added. Each key press is confirmed with an audio and light signal.
After entry of a valid code a double signal follows. An invalid entry is followed by a long
signal. After 10 seconds without entry, an already started code entry is cancelled.
Open: (see fig. A)
Enter code (factory code = 1-2-3-4-5-6), turn the entry clockwise unto the hold, and open the
door. If not opened within 3 seconds, the lock secures automatically.
attempt wait 20 seconds before re-entering. Three long beeps indicate the lock bolt is jammed. Release
the handle and re-enter code.
Locking:
Close door and turn handle fully to closing position. The lock is secured. Control blocking status by trying
to turn handle back.
Manipulation protection:
Entry of four consecutive invalid codes – keypad is blocked for 5 minutes. During this period, the light
flashes every 10 seconds and any key press causes a long signal. After expiration, entry of two more
invalid codes , restarts the 5 minute blocking period.
Safety reference:
All codes are to be securely stored. Do not use personal data (i.e. Birthdays, telephone numbers etc.) as
the code. Change the factory code before you start using the safe!
Activate the second opening code: (see fig. B)
Press and hold Key [1] until double signal. The light remains on during the following actions.
•
Enter main code.
•
Enter Secondary code twice (Double signal after each)
(The secondary code can be changed like the main code. With the main code, the secondary code can
be deleted. The main code cannot be deleted.)
Time Delay (max. 99 min) and open window (max. 19 min)
Press and hold key "9" until double signal. The
light remains on during the following actions.
- enter manager code (double signal)
- enter time delay and open window time,
f.i. 2612 for 26minutes time delay and
12minutes open window (double signal)
- repeat values (double signal)
Note: changing the time delay values can only be
done in open window time.
If you want to delete the time delay, please repeat
the above mentioned procedure and enter 0001
instead of 2612. (= 00 for Time delay and 01 for
Openwindow)
M-LOCKS BV Vlijtstraat 40, NL-7005 BN Doetinchem.
Tel: + 31 (0)314 376 876 Fax: + 31 (0)314 376 878
GENERAL
If code entry failed on first
9 9 9 9
1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4 5 5 5 5 6 6 6 6
6 6 6 6 1 1 1 1
2 2 2 2 2 2 2 2
6 6 6 6 1 1 1 1
2 2 2 2 2 2 2 2
