M-LOCKS EC1070 EuroLine series Technical Manual

Technical manual
Mounting instructions
EC1070
CHARACTERISTICS

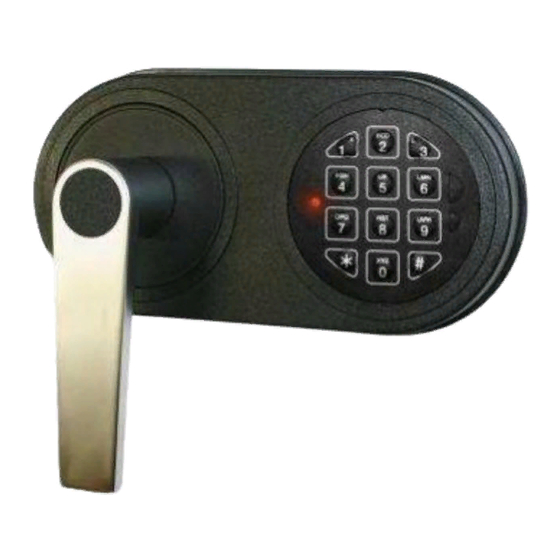

The EuroLine series was specially developed for safes using boltworks where the C/C
measurement between lock and boltwork drive is 100mm . It will also work combined with the
DirectDrive lock EM1620 (EM1520). The ABS* housing of the EuroLine Entry unit combines
an alpha-numeric membrane keypad with a large L-handle (metal) and an integrated battery
compartment. The 8x8 mm square shaft of the handle drives either the lock or a boltwork.
Cable length is approximately 30cm.
*Acrylonitrile butadiene styrene, or ABS, (chemical formula (C8H8· C4H6·C3H3N) is a common thermoplastic used to make
rigid, moulded products.

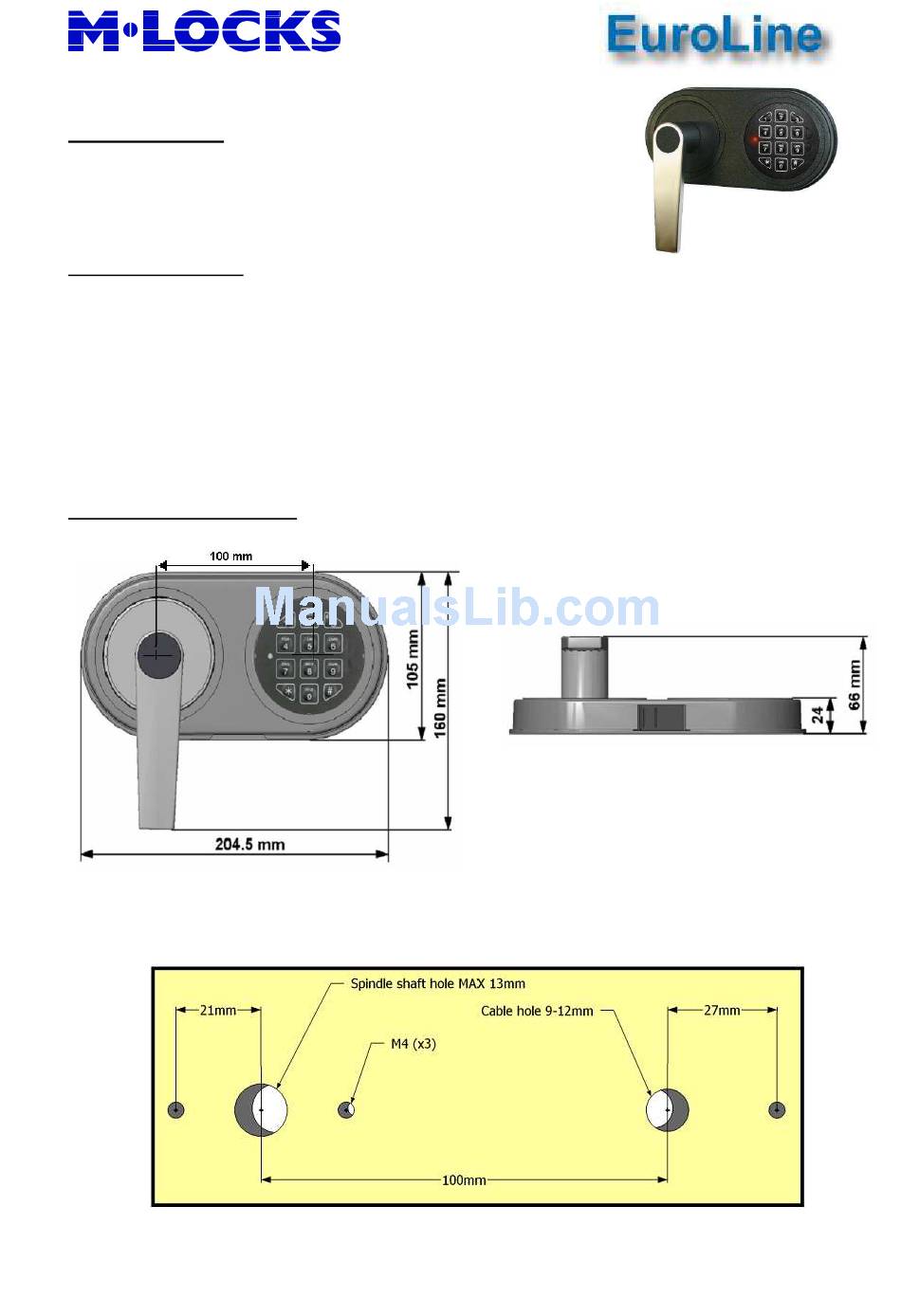

DIMENSIONS/MOUNTING:
The diameter of the cable hole should be minimum 9mm, maximum 12mm. The spindle hole
should be maximum Ø 12mm. Both holes must be de-burred well to avoid damage.
