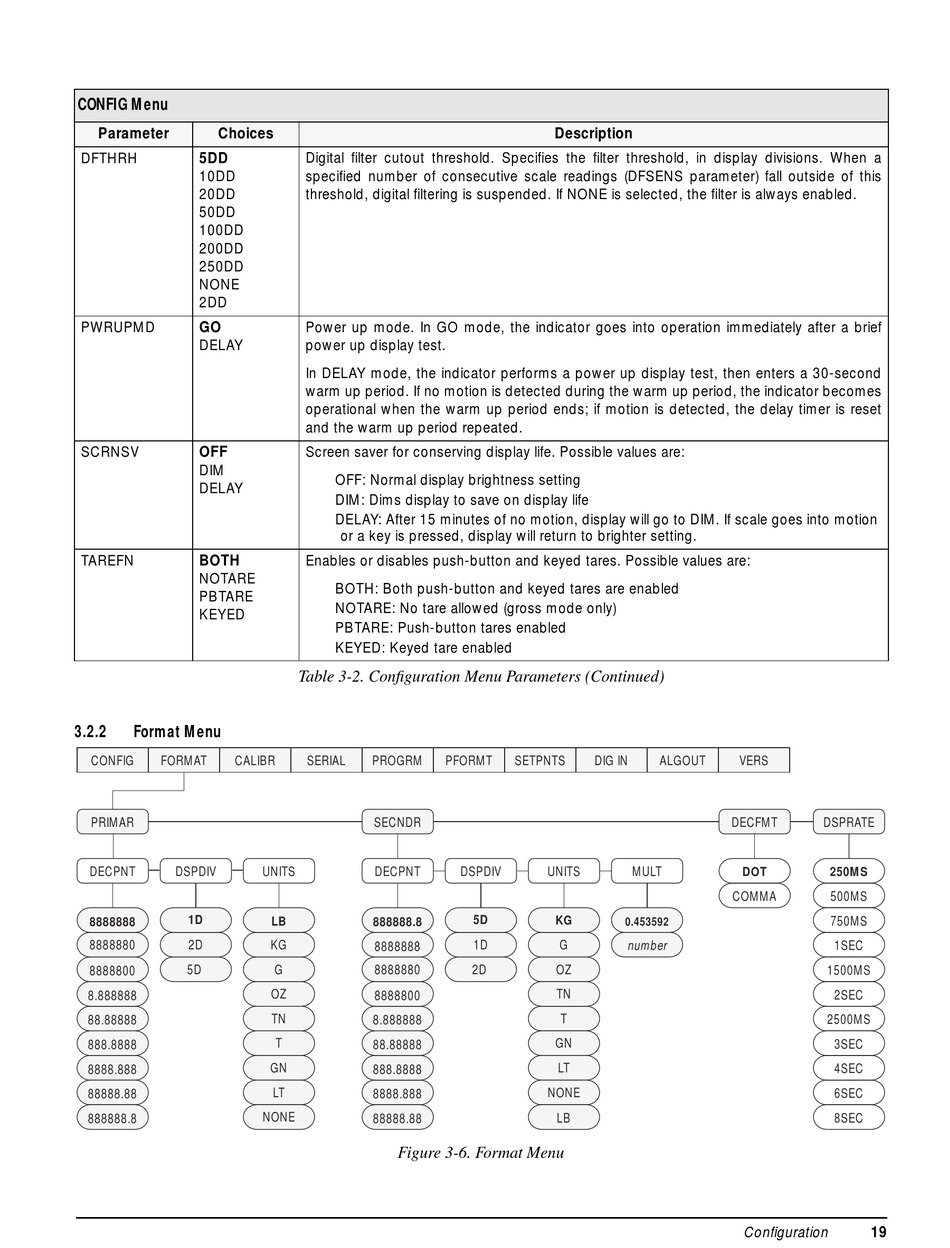

CONFIG Menu
Parameter Choices
DFTHRH 5DD
10DD
20DD
50DD
100DD
200DD
250DD
NONE
2DD
PWRUPMD GO
DELAY
SCRNSV OFF
DIM
DELAY
TAREFN BOTH
NOTARE
PBTARE
KEYED
3.2.2

Format Menu

CONFIG CALIBR
XXXXXXX FORMAT
PRIMAR
DECPNT DSPDIV
1D
8888888
8888880 2D
5D
8888800
8.888888
88.88888
888.8888
8888.888
88888.88
888888.8
Digital filter cutout threshold. Specifies the filter threshold, in display divisions. When a
specified number of consecutive scale readings (DFSENS parameter) fall outside of this
threshold, digital filtering is suspended. If NONE is selected, the filter is always enabled.
Power up mode. In GO mode, the indicator goes into operation immediately after a brief
power up display test.
In DELAY mode, the indicator performs a power up display test, then enters a 30-second
warm up period. If no motion is detected during the warm up period, the indicator becomes
operational when the warm up period ends; if motion is detected, the delay timer is reset
and the warm up period repeated.
Screen saver for conserving display life. Possible values are:
OFF: Normal display brightness setting
DIM: Dims display to save on display life
DELAY: After 15 minutes of no motion, display will go to DIM. If scale goes into motion
or a key is pressed, display will return to brighter setting.
Enables or disables push-button and keyed tares. Possible values are:
BOTH: Both push-button and keyed tares are enabled
NOTARE: No tare allowed (gross mode only)
PBTARE: Push-button tares enabled
KEYED: Keyed tare enabled
Table 3-2. Configuration Menu Parameters (Continued)
SERIAL PROGRM
SECNDR
UNITS DECPNT
LB
888888.8
KG
8888888
G 8888880
OZ
8888800
TN
8.888888
T
88.88888
GN
888.8888
LT
8888.888
NONE
88888.88
Figure 3-6. Format Menu
Description
PFORMT SETPNTS DIG IN
XXXXXXX XXXXXXX
DSPDIV UNITS
5D
KG
1D G
2D OZ
TN
T
GN
LT
NONE
LB
ALGOUT
XXXXXXX VERS
DECFMT
MULT DOT
COMMA
0.453592
number
Configuration
DSPRATE
250MS
500MS
750MS
1SEC
1500MS
2SEC
2500MS
3SEC
4SEC
6SEC
8SEC
