Peco 37641401 Owner's Manual

Lawn vacuum for a scag unit p# q0119
Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL 37641401 - 02
PECO OWNERS MANUAL
PECO OWNERS MANUAL
PECO OWNERS MANUAL
PECO OWNERS MANUAL
PECO OWNERS MANUAL
FOR A SCAG UNIT P# Q0119
FOR A SCAG UNIT P# Q0119
FOR A SCAG UNIT P# Q0119
FOR A SCAG UNIT P# Q0119
FOR A SCAG UNIT P# Q0119
CONGRATULATIONS AND THANK YOU FOR BUYING THIS PECO LAWN VACUUM.
Your new PeCo Vac has been engineered and manufactured to PeCo's high standards for
safety, quality and dependability and ease of operations.
Save This Manual For Future Reference
MODEL 37641401 - 04
PeCo

Advertisement

loading

Related Manuals for Peco 37641401

Summary of Contents for Peco 37641401

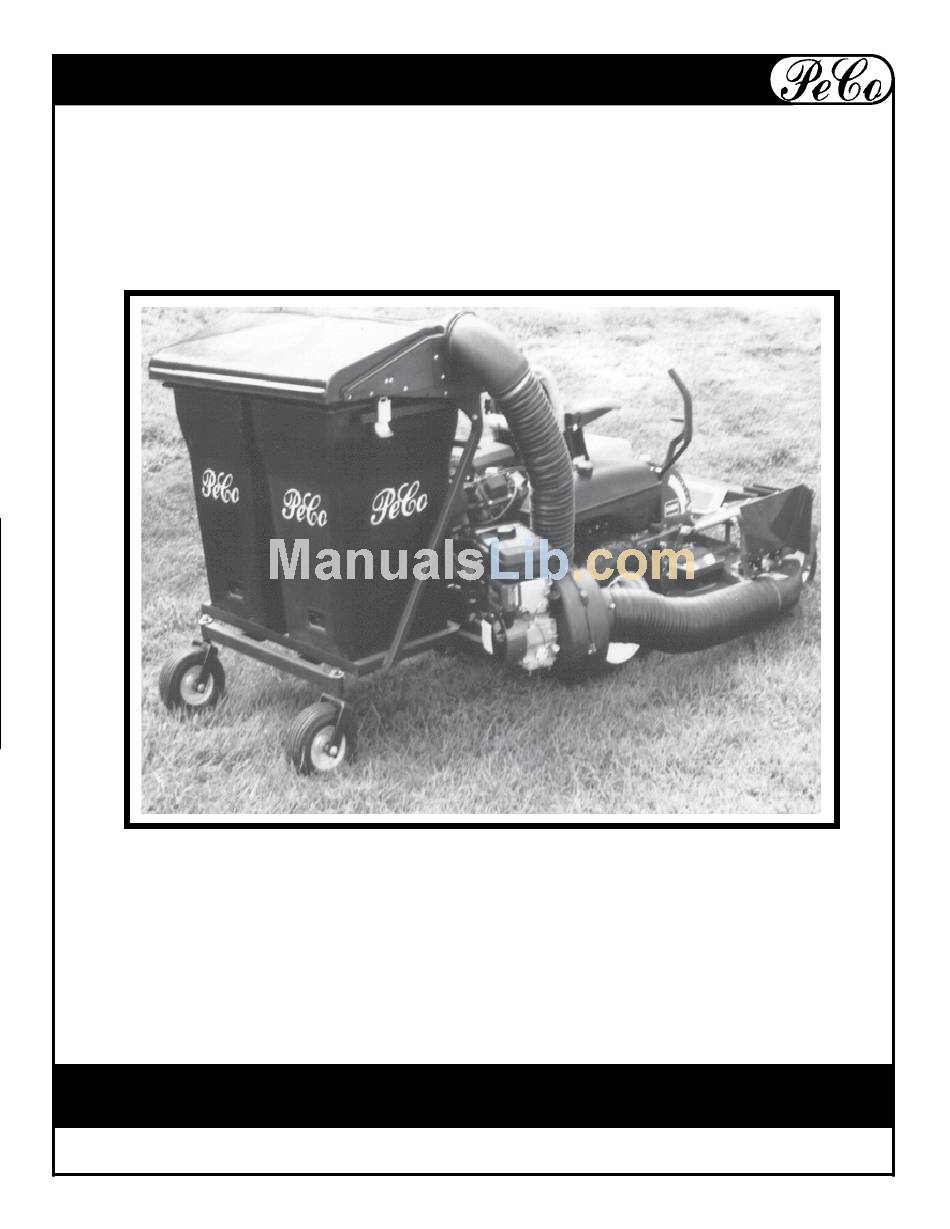

  • Page 1 MODEL 37641401 - 02 PECO OWNERS MANUAL PECO OWNERS MANUAL PECO OWNERS MANUAL PECO OWNERS MANUAL PECO OWNERS MANUAL FOR A SCAG UNIT P# Q0119 FOR A SCAG UNIT P# Q0119 FOR A SCAG UNIT P# Q0119 FOR A SCAG UNIT P# Q0119 FOR A SCAG UNIT P# Q0119 CONGRATULATIONS AND THANK YOU FOR BUYING THIS PECO LAWN VACUUM.

  • Page 2: Warranty

    90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later. MODEL 37641401 - 04 B. SECURING WARRANTY ADJUSTMENTS Damaged or broken parts other than engines or batteries, must be returned to PeCo, Inc., P.O.
  • Page 3 ING PARTS TO COME TO A COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning the maintenance MODEL 37641401 - 04 7. Always stop Vac engine when emptying the container. 8. Stop tractor and vac engines and remove spark plug wire before removing or replacing hose, boot, blower cone or performing any maintenance.
  • Page 4 (A). Use (1) 3/8"-16 x 3/4" hex bolt (#K1190) and (1) 3/8"-16 flange nut (#K1215) to mount each Bracket. Use existing bolts from mower frame to mount Bracket (B) to mower. Use figure 1-1 to place bolts. MODEL 37641401 - 04 MOWER FRAME HOLES TO MOUNT TO...
  • Page 5 To replace: Place tapered bushing (A) into hub (B) and align non-threaded holes with the holes in the hub. Secure with two 1/4" x 1" hex bolts. Torque to 15 ft. lbs. MODEL 37641401 - 04 PeCo...

  • Page 6: Parts List

    B1941 B1926 J0316 A0021 A0022 A0236 A08216 V2002 A0921 A0916 MODEL 37641401 - 04 DESCRIPTION BOOT PLATE BOOT (SPECIFY DECK SIZE) 7"- 8" HOSE CLAMPS 42" LOWER HOSE BLOWER CONE ENGINE/BLOWER/BLADE ASSEMBLY BLOWER HOUSING 5HP BRIGGS & STRATTON ENGINE 4 BLADE IMPELLAR W/ S4311 BUSHING W/ 3/4"...
  • Page 7 EXPLODED VIEW MODEL 37641402 PeCo MODEL 37641401 - 04...
  • Page 8 (F) and lock jaws. Place (2) 7 cu. ft. canisters (G) into the Main Frame (E) and close lid. MODEL 37641401 - 04 STEP 6: Place Clamps (A) over each end of 6" Hose (B). Attach one end of hose onto Blower Housing (C).
  • Page 9 Lift mower deflector and hang Boot Plate as shown. STEP 9: Place Clamp over each end of Lower Hose. Attach one end of hose over the Blower Cone. Tighten Clamp. Slide free end of hose over Boot and tighten clamps. MODEL 37641401 - 04 PeCo...

  • Page 10: Maintenance

    Date of Purchase: _____ /_______ /________ Dealer Name: _________________________________________________________________ Dealer's City: ___________________________ Dealers Phone Number: _______________________________ MODEL 37641401 - 04 CARE REQUIRED Check engine oil. Check all hose connections. Clean Collector Box, hoses and engine of all grass and dirt.

  • Page 11: Troubleshooting

    3. Grass is too wet or long. The Serial Number Plate is located on the aluminum box near the dump handle. MODEL 37641401 - 04 CAUSE A. Run at full throttle. B. Use lower gear C. Check and tighten all hoses.
  • Page 12 P.O. Box 1197 Arden, North Carolina 28704 1-800-438-5823 or (828) 684-1234 fax-(828) 684-0858 email: peco@ioa.com PeCo MODEL 37641401 - 04...
