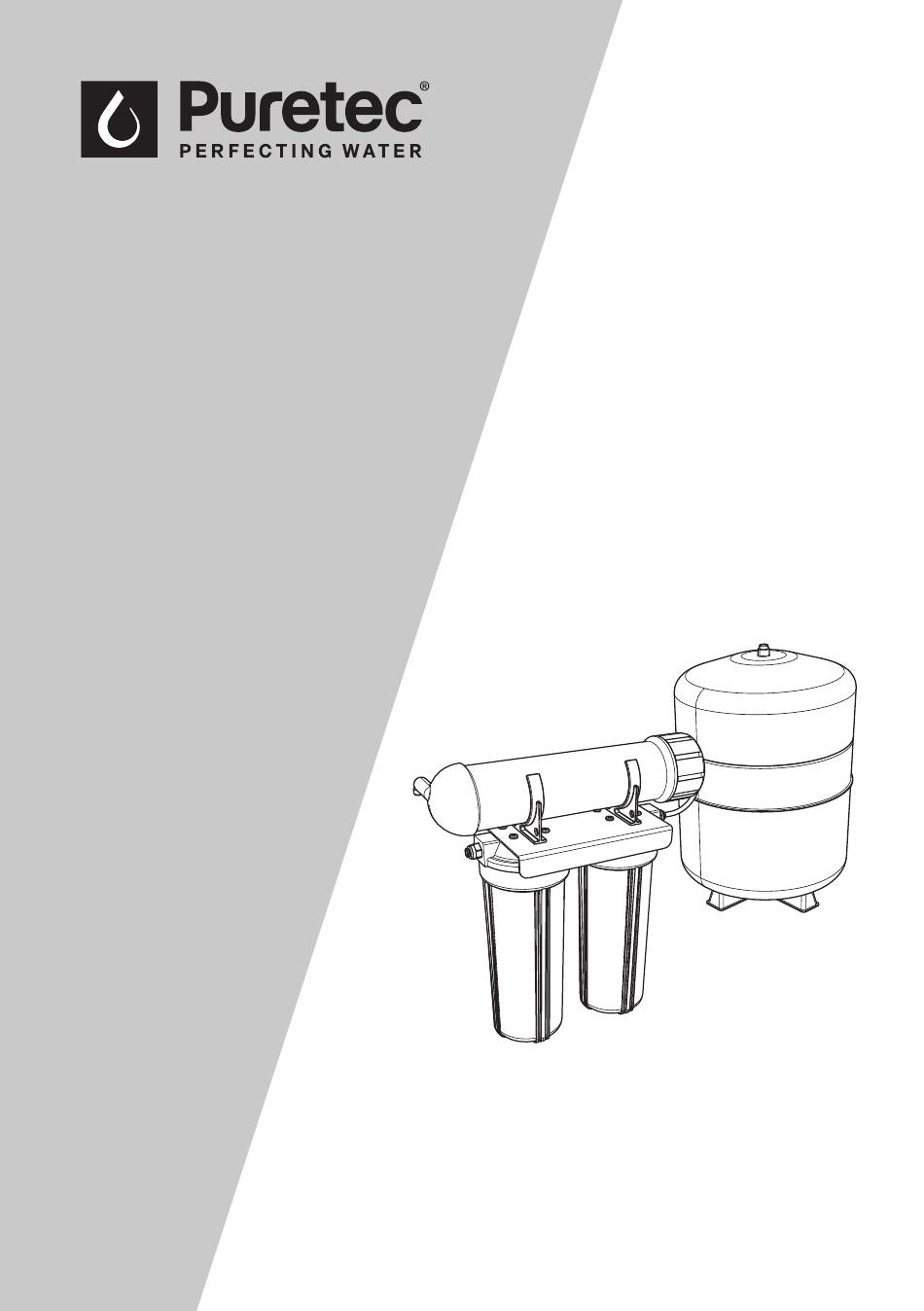

- Page 1 User Guide Reverse Osmosis Undersink Water Filter Systems RO SERIES For correct operation & installation it is essential to observe these instructions.
-
Page 2: Table Of Contents
Cartridge Installation ........................4 Installation Procedure ......................... 4 Installation Diagram ........................6 Battery Installation ......................... 7 Cartridge Changeout ........................8 Use Guidelines ........................... 9 Substance Reduction ........................9 Warranty ............................10 Installation & Operation Manual Copyright © Puretec Ltd 2015... -
Page 3: Introduction
Operation The Puretec RO series system is designed to run economically for many years and this is dependant on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge. -
Page 4: System Installation
3. Connect the pressure limiting multivalve to the Smart Tee™ with a length of GREEN tubing. See figure 1. 4. Select location on kitchen sink to install faucet. Make sure there is adequate access under the bench top for the hoses. The faucet supplied with the system requires a ½” (012.5mm) hole. Use a centre punch to locate the position to drill. Drill a pilot hole and gradually enlarge until you have the correct size hole. Installation & Operation Manual Copyright © Puretec Ltd 2015... - Page 5 The Reject water is usually dispensed down the drain although it can be directed to the garden if desired. To be environmentally friendly, the Puretec RO system has a built in shut off valve so that when the storage tank is full it stops producing water.
-
Page 6: Installation Diagram
BLACK LOCATING WASHER – NOT SOLD SEPARATELY FPBK2 ASSEMBLY WALL MOUNT HOUSING BLACK WASHER – NOT SOLD SEPARATELY RET 1812 REVERSE OSMOSIS MEMBRANE ESCUTCHEON PLATE – NOT SOLD SEPARATELY KTU4BL BLUE FLEXIBLE TUBING DFU130 LONG REACH FAUCET KTU4W WHITE FLEXIBLE TUBING RA-HM MEMBRANE HOUSING KTU4Y YELLOW FLEXIBLE TUBING RA-CL4 DRAIN CLAMP KTU4BK BLACK FLEXIBLE TUBING KSOVE44N TANK BALL VALVE KEA44 ELBOW ADAPTOR Installation & Operation Manual Copyright © Puretec Ltd 2015... -
Page 7: Battery Installation
Battery Installation FIGURE 2 Faucet Display Battery Seat Circuit board Battery (CR2032) large rubber washer Chrome plated metal flange Counter top ø12.5 hole plastic washer lock washer locking nut gasket cone washer/olive ¼" compression nut ¼" tube BATTERY INSTALLATION - LED REMINDER LIGHT Important note: Battery must be replaced when changing cartridges. -
Page 8: Cartridge Changeout
Replace O-ring if kinked or damaged. Install new cartridges and replace housing screwing them up HAND TIGHT ONLY. MC051 filter is on the inlet side and CB951 on the outlet side. Install RET1812-75 on membrane housing. See figure 1. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit. Installation & Operation Manual Copyright © Puretec Ltd 2015... -
Page 9: Use Guidelines
Installation Guide Use Guidelines • Minimum operating pressure 300 kPa. • Maximum operating pressure 600 kPa. • Do not allow exposure to temperatures below 4°C. • Maximum operating temperature 38°C. • Maximum flow 270 litres per day. • This system must be installed according to local plumbing codes by a licensed plumber on the cold water line - mains only. •... -
Page 10: Warranty
Warranty Notes Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market. Important: Sales of products are subject to our Terms and Conditions which are available upon request. All specifications, information and photos are a guide only and are subject to... - Page 11 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 14-16 Bailey Street, St Marys SA 5064, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our Warranty goods come with guarantees which cannot be excluded under the Australian Consumer Law.
