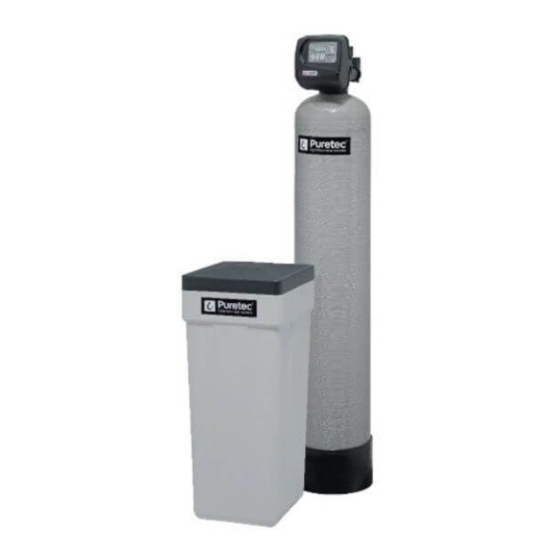

- Page 1 User Guide SOL-E1 Commercial Series Automatic Timer Water Softening Appliance For correct operation & installation it is essential to observe these instructions. NOV2019...
-
Page 2: Table Of Contents
Replenishment of Salt Supply ........................16 Type of Salt to Use ............................16 Brine Tank Clean-Out (Yearly) ........................16 Media Replacement ............................16 Bypass Valve Operation - optional accessory .................17 Troubleshooting Guide ..........................18 Warranty ................................22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 3: Puretec Customer Service
It will give years of reliability and trouble free operation if maintained properly. This user guide is designed for Puretec SOL-E1 Water Treatment Systems. Be careful to ensure the information and illustration is applicable to your particular unit. -
Page 4: Installation Record
___________ ppm / mg/L Manganese: ___________ ppm / mg/L ___________ TDS (Total Dissolved Salts): ___________ ppm / mg/L Conductivity: ___________ EC / uS/cm Chloride: ___________ ppm / mg/L Sodium: ___________ ppm / mg/L Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 5: Before Installation
• Install as close as possible to a drain. • Install in correct relationship to other water treatment equipment. Contact Puretec for assistance. • Install the softener in the supply line BEFORE the water heater. Temperatures above 43.3°C (110°F) will damage the softener and void the warranty. - Page 6 If lawn sprinklers, a swimming pool, or geothermal heating/cooling or water for other devices/activities are to be treated by the Softrol system, a larger model MUST be selected to accommodate the higher flow rate, treated water volume, plus the backwashing requirements of the Softrol system. Contact Puretec for assistance. WARNINGS •...
-
Page 7: Specifications
Drain Connection: ⅝” Overflow Connection: ⅝” SOL-45 SOL-60 Width (mm) (W): 260 mm 300 mm Height (mm) (H): 1570 mm 1525 mm Maximum Salt Storage 75 kg 75 kg Capacity: Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide... -
Page 8: Exploded Diagram
Exploded Diagram Exploded Diagram Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 9: Parts Identification
Plastic Fitting Kit, Elbow WTB5150 2 Piece Overflow WTB2100 Valve Cover Drain Tube Assembly WTV5135 Transformer, Suit Auto Valve Diagram Identification Outlet 1" Inlet 1" ⅜” Brine ⅝” Drain Control Panel Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide... -
Page 10: Installation Procedure
16 for the type of salt to overflow (refer to page 13) be used) Ensure water has been tested, Input values into Table on page 4 and the analysis has been inspected by Puretec. Water Analysis Information Hardness ___________ ppm / mg/L... - Page 11 Top up tank with water. Screw valve onto the tank (hand tight is usually sufficient), making sure the distributor tube is properly inserted into the valve. Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide...
- Page 12 Apply plumbing tape to the nipple as required. Connect the pipe work to the valve, refer to page 9 for identification. FOLLOW LOCAL PLUMBING CODES 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
- Page 13 Make sure the drain is not higher than the overflow. Programming 6.1 Plug into an uninterrupted electrical outlet. Note: All electrical connections must be connected accordingly to local codes. 6.2 Proceed to ‘Programming’ section Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide...
-
Page 14: Programming
Regen if a regeneration is expected ‘tonight’. To can- Regen Days To Regen word Regen if a regenera- Hour cel the regeneration simultaneously press + buttons and release. tion is expected ‘Tonight’. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 15: Start-Up
POWER LOSS Your Puretec electronic control valve maintains the time for up to 8 hours using the internal PCB battery if power is interrupted. Nonvolatile memory stores the stats & programming & are not affected by power outages. After 8 hours of backup use, replace the battery with a type 2032, 3-volt lithium coin cell battery. -
Page 16: Replenishment Of Salt Supply
If necessary a pliers can be used to unscrew the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... -
Page 17: Bypass Valve Operation - Optional Accessory
EXITS ENTERS EXITS ENTERS Diagnostic Mode Shut Off Mode SUPPLY WATER IS SHUT OFF SUPPLY WATER SUPPLY WATER FROM THE HOUSE ENTERS EXITS NO WATER EXITS & THE VALVE Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide... -
Page 18: Troubleshooting Guide
Valve does not regenerate automatically, but A. Bypass valve in bypass position/faulty. A. Turn bypass to normal operation/replace does when performing a manual regeneration. bypass. B. Defective PC Board. B. Replace PC Board. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019... - Page 19 C. Fouled media bed. C. Clean/replace media. D. Water quality fluctuation. D. Test water and contact Puretec for assistance. E. No regenerant or low level of regenerant. E. Refill regenerant tank F. Valve fails to draw regenerant.
- Page 20 C. Loosen main drive gear. Perform a 'dry' reset. D. Incorrect voltage being delivered to valve. D. Check voltage of power source. Perform a 'dry' reset. E. Incorrect programming. E. Contact Puretec for assistance. 20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
- Page 21 A. Drive bracket not correctly installed. A. Snap drive bracket in correctly. Perform a Control valve motor ran too long and timed out 'dry' reset. trying to reach home position. Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide...
-
Page 22: Warranty
Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. - Page 23 This page was intentially left blank. Copyright © Puretec Pty Ltd 2019 SOL-E1 Commercial Series User Guide...
