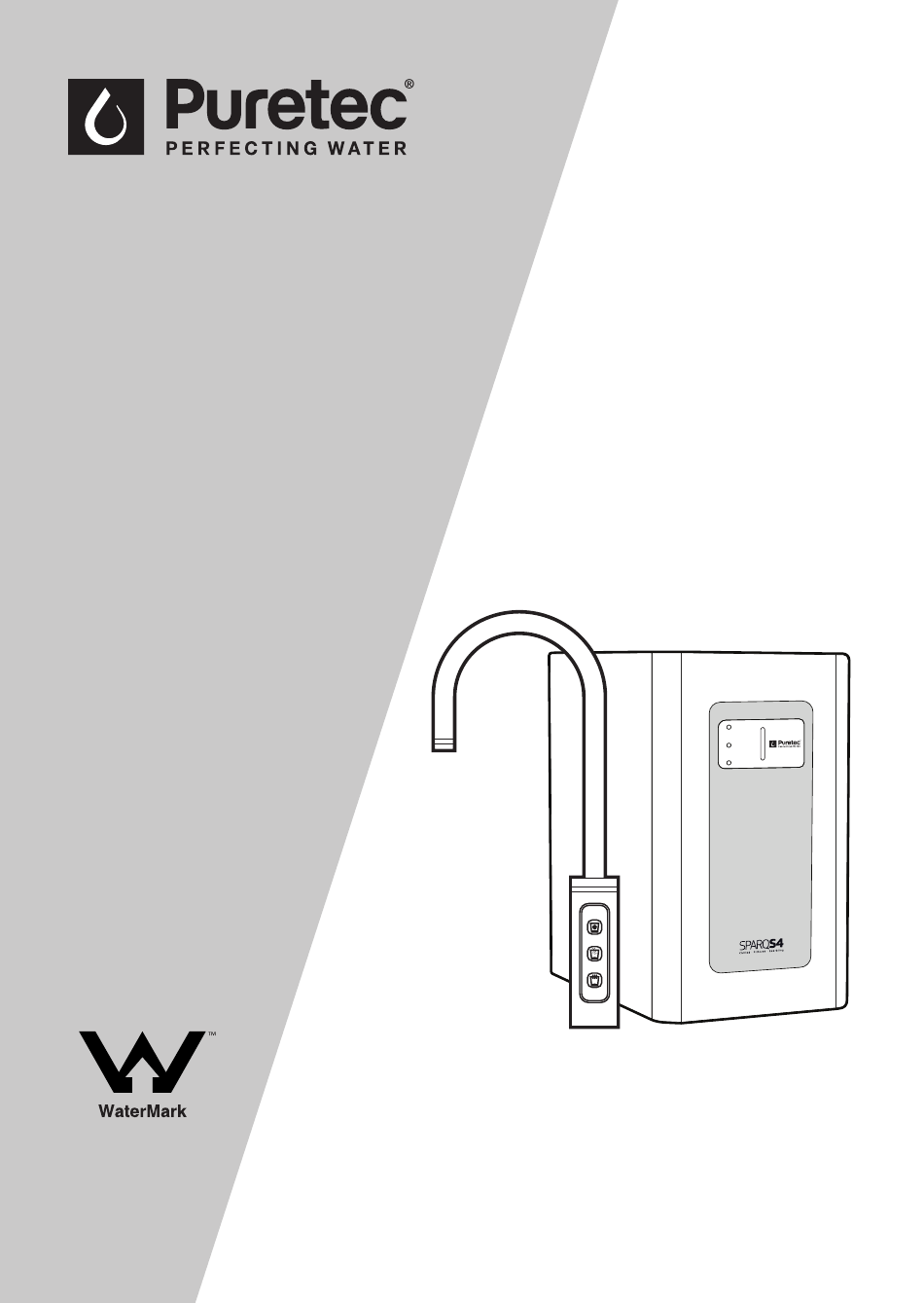

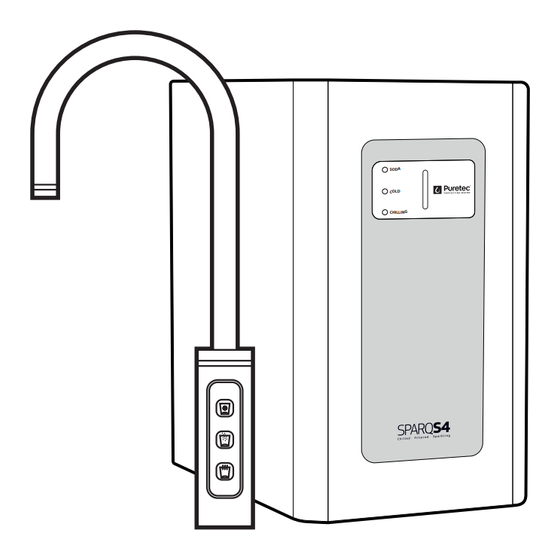

  • Page 1 SODA COLD CHILLING Sparq S4 User Guide WMTS 105 Sparkling, Chilled & Still Water System Certificate No. 23291 Australian Certification Services For correct operation & installation it is essential to observe these instructions. APR2018...
  • Page 2: Table Of Contents

    Gas Replacement - As Required ......................13 Troubleshooting ...............................14 Warranty ................................15 AUSTRALIA NEW ZEALAND Customer Service: 1300 140 140 Customer Service: 0800 130 140 Email: sales@puretec.com.au Email: sales@puretec.co.nz Web: www.puretec.com.au Web: www.puretec.co.nz Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 3: Puretec Customer Service

    Introduction Puretec Customer Service Thank you for purchasing a Puretec Sparq S4 Drinking Water Appliance. The Sparq S4 is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble free operation if maintained properly.
  • Page 4: Before Installation

    Parts Included SODA COLD CHILLING Sparq Unit Faucet/Tap Bottle Regulator SmartTee Multivalve Straight Tubing Power Cord Spacer Wiring loom Connector Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 5: Specifications

    370mm minimum 150mm air gap A Ø26mm hole required for faucet (Max. 30mm) ^Warranty cover parts and labour for the period of 1 year where applicable subject to approval. Copyright © Puretec Pty Ltd 2018 Puretec Sparq S4 User Guide...
  • Page 6: Tap Button Identification

    System Identification Tap Button Identification Cold Sparkling Ambient Fig.1 Pressure Regulator Tube (Black) Bottle Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 7 System Identification Fig.2 straight connector Wiring loom connector (Black) Water inlet Smart Tee multivalve Unit power supply Water inlet connection (Blue) Water outlet (White) Note: All lines are 1/4" tube Copyright © Puretec Pty Ltd 2018 Puretec Sparq S4 User Guide...
  • Page 8: Installation Procedure

    With a length of WHITE tubing (enough length to pull out of the cupboard to change filters if not enough height), connect the straight adaptor to the water outlet. Attach the wiring loom from the tap to the unit. (see Fig.2) Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 9 Check all tubes from the undersink unit to the tap, ensure there are no sags or kinks in the hoses, and any tube sag is minimised as it can cause flow to be reduced. Check all electrical connections are correct and there are no loose wires. Copyright © Puretec Pty Ltd 2018 Puretec Sparq S4 User Guide...
  • Page 10: How To Use Quick Connect Fittings

    Turn on the COLD power switch on the back of the chiller. The chilling indicator on the front panel of the unit will turn off once the correct temperature is reached. The temperature is preset to 4-10 degrees. It takes up to 20 minutes. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 11 Your Puretec system is now ready for use. It may require an hour or two for the sparkling water to reach full "fizz". NOTE: A small amount of water will come out after using the Sparkling feature for 1-2 seconds.
  • Page 12: How To Operate The Tap

    3 minutes or until black carbon fines have cleared. (It is usual for there to be black carbon fines and/or white cloudiness initially, however these will clear up). 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 13: Gas Replacement - As Required

    10. Operate the sparkling water button on the tap for 30 seconds or until excess CO been dispensed. 11. Your Puretec system is now ready for use. It may require an hour or two for the sparkling water to reach full "fizz".
  • Page 14: Troubleshooting

    Replace CO bottle or flat Soda power is off Turn on the soda power switch line needs purging Follow the instructions in changing the CO bottle to purge the line. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2018...
  • Page 15: Warranty

    Puretec’s discretion, including chargeable inspection and labour costs incurred. WARRANTY / AUSTRALIA This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
  • Page 16 Puretec water care products are designed, manufactured and supported by Puretec Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market.
