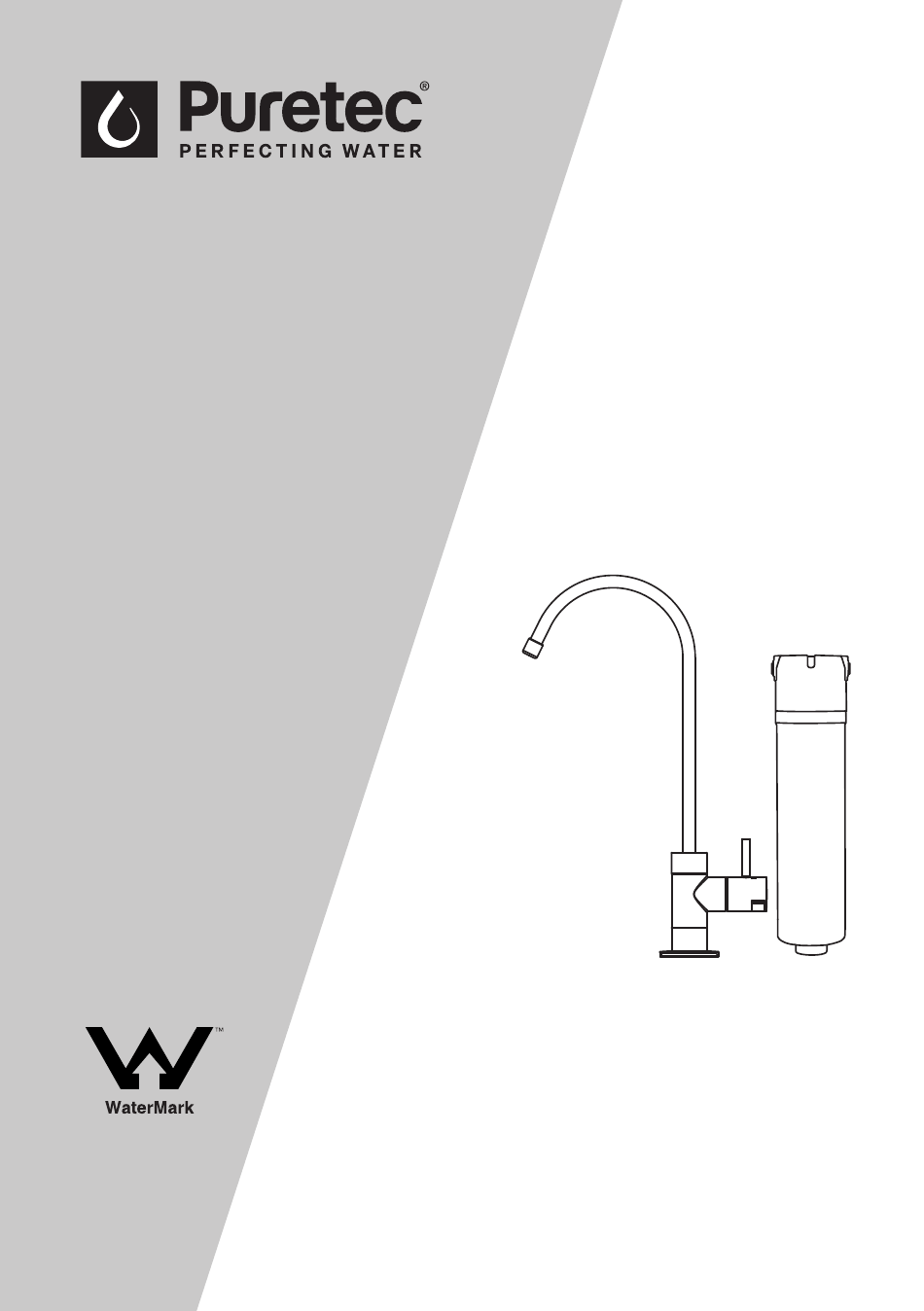

- Page 1 User Guide QT18 AS/NZS 3497 Licence No. WM 74726 Australian Certification Quick Twist Undersink Water Filter System Services For correct operation & installation it is essential to observe these instructions. MAY2018...
-
Page 2: Cartridge Replacement
Operation The Puretec QT18 system is designed to run economically for many years and this is dependant on the initial installation and periodical maintenance. Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge. -
Page 3: Installation Requirements
Install filter cartridge by positioning it in the desired location, marking the position of fixing hole and fixing with bracket screw. (QT18 Series can be mounted horizontally or vertically) Allow room for the connecting tubes. Ensure flow arrow on cartridge is in direction of waterflow. -
Page 4: Installation Guide
Remove packaging from the new cartridge including the yellow cap on top of the cartridge. Twist in the new cartridge. Ensure firm seal to head. Replacement cartridge code: Puretec QT12R Reset LED indicator by following instructions on page 6. Restore water supply. - Page 5 Assembly Figure 1 DESCRIPTION QT12R filter cartridge black plastic washer Smart Tee™ mounting bracket black rubber washer ½"M x ½"F x ¼"T tube, nut and olive escutcheon plate flexible tubing tube insert high loop faucet pressure limiting valve faucet lock nut and washer Figure 2 HOW TO USE QUICK CONNECT FITTINGS...
-
Page 6: Battery Installation
(usage has Gasket Cone Washer/olive exceeded 3,000 minutes or 12 months). Cone Washer/olive Please change the battery when 1/4" mpression changing the cartridges. 1/4" mpression 1/4" Tube 1/4" Tube Installation & Operation Manual Copyright © Puretec Ltd 2015... - Page 7 Performance Data Performance Data Average Average Average Max Effluent Min Percent Substance Guidelines* Influent Effluent Percent Concentration Removal Concentration Concentration Removal NSF Standard 42 Drinking Water Treatment Units Chlorine 5 - Health 0.25 >94% (11,355 L) 0.6 - Aesthetic Standard 53 Cyst Live Cryptosporidium POU/POE Cyst <1 100,000...
- Page 8 Applicable to all above, is that the Warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.
