Summary of Contents for Puretec CO-RO3

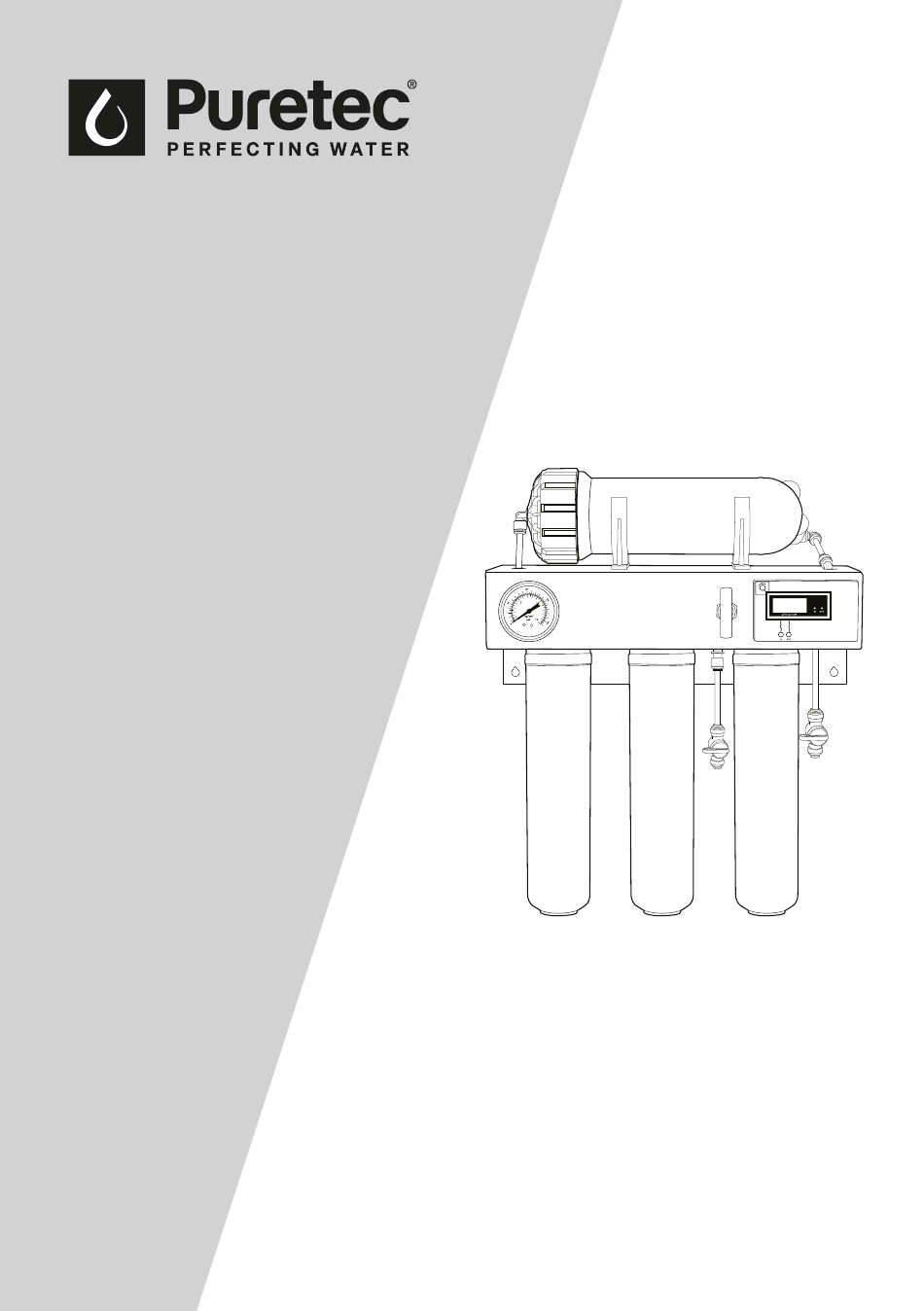

- Page 1 User Guide CO-RO3 Food Service Reverse Osmosis Water Treatment System For correct operation & installation it is essential to observe these instructions. APR2019...
-
Page 2: Table Of Contents
Tools & Materials Required ........................... 4 Location of System ............................5 Installation ................................6 Care & Maintenance ............................8 Operating Conditions ............................9 Troubleshooting ..............................10 Warranty ..................................11 Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2019... -
Page 3: Safety Guides
Ultra Z filter cartridge, which inhibits limescale and reduces unwelcome elements in the water such as chlorine, bad tastes and odours, as well as providing protection against cysts and bacteria such as E. coli. Copyright © Puretec Pty Ltd 2019 Food Service Reverse Osmosis System... -
Page 4: Before Installation
• Ensure that the water supply is within the Operating Conditions (see Page 8) of the RO, refer to the Specification Sheet for further information (contact Puretec if parameters are outside the guidelines). Note: For optimal system performance, use the system for at least 2 minutes continuously each day. -
Page 5: Location Of System
Location of The System Location of System The Puretec Food Service RO System is design to mounted, either on a wall or within a cabinet. The RO system can also be located in a location away from the outlet. A nearby water source and drain point are required. -
Page 6: Installation
AUTO SHUT-OFF kg/cm Needle Valve Inlet (white) Shut-Off Valve & Tube (blue) Gauge Holding Tank Connection (optional) Drain Tube (black) RO Assembly 1.5" Air Gap Required Above Flood Rim Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2019... - Page 7 Note: If utilising a holding tank, turn the Valve into the OPEN position and allow 5-10 minutes for the tank to fill. Flush/drain the tank twice in a row to purge the system. 12. Your system is now ready for use. Copyright © Puretec Pty Ltd 2019 Food Service Reverse Osmosis System...
-
Page 8: Care & Maintenance
Open the seal/packaging on the new membrane, insert the double o-ring end of the membrane first. Tighten the cap by hand only. Turn the water on and flush the system for 3-5 minutes. Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2019... -
Page 9: Operating Conditions
Inlet Hardness 150 ppm Inlet Iron 0 mg/L 0.1 mg/L Inlet Manganese 0 mg/L 0.05 mg/L Inlet pH Dimensions RET3012-500 CO-S150 CO-B150 CO-UZ150 Depth 430 mm 513 mm 205 mm Copyright © Puretec Pty Ltd 2019 Food Service Reverse Osmosis System... -
Page 10: Troubleshooting
Increase tubing diameter for longer distances. Plugged prefilter. Replace plugged prefilter. Consider sediment prefilter for non-chlorinated applications. Scaled, fouled, or damaged RO Replace RO membranes. membrane. Food Service Reverse Osmosis System Copyright © Puretec Pty Ltd 2019... -
Page 11: Warranty
Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
