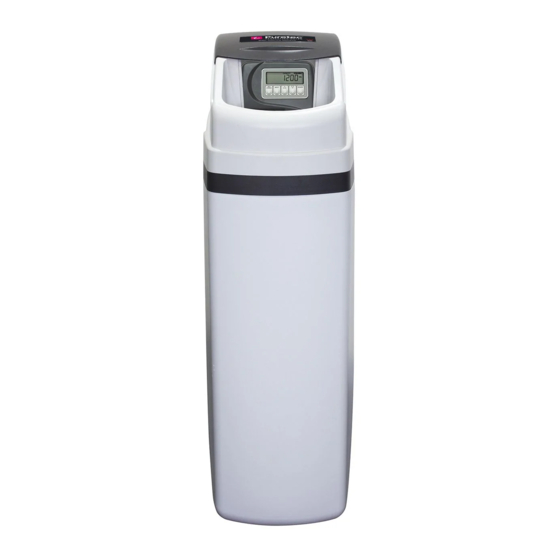

To decommission a Puretec SOL-E3 Series water softener for transport, follow these steps:

1. Disconnect the brine line at either end.
2. Turn the brine tank upside down and discard any old salt.
3. Rinse the brine tank with a garden hose.
4. Reconnect the brine line.
5. Add approximately 15 litres of water to the brine tank before reloading salt when reinstalling.

Ensure all connections are secure and dry before transport. Avoid using a pipe wrench or hammer on the nuts and caps.

This answer is automatically generated

Summary of Contents for Puretec SOL-E3 Series

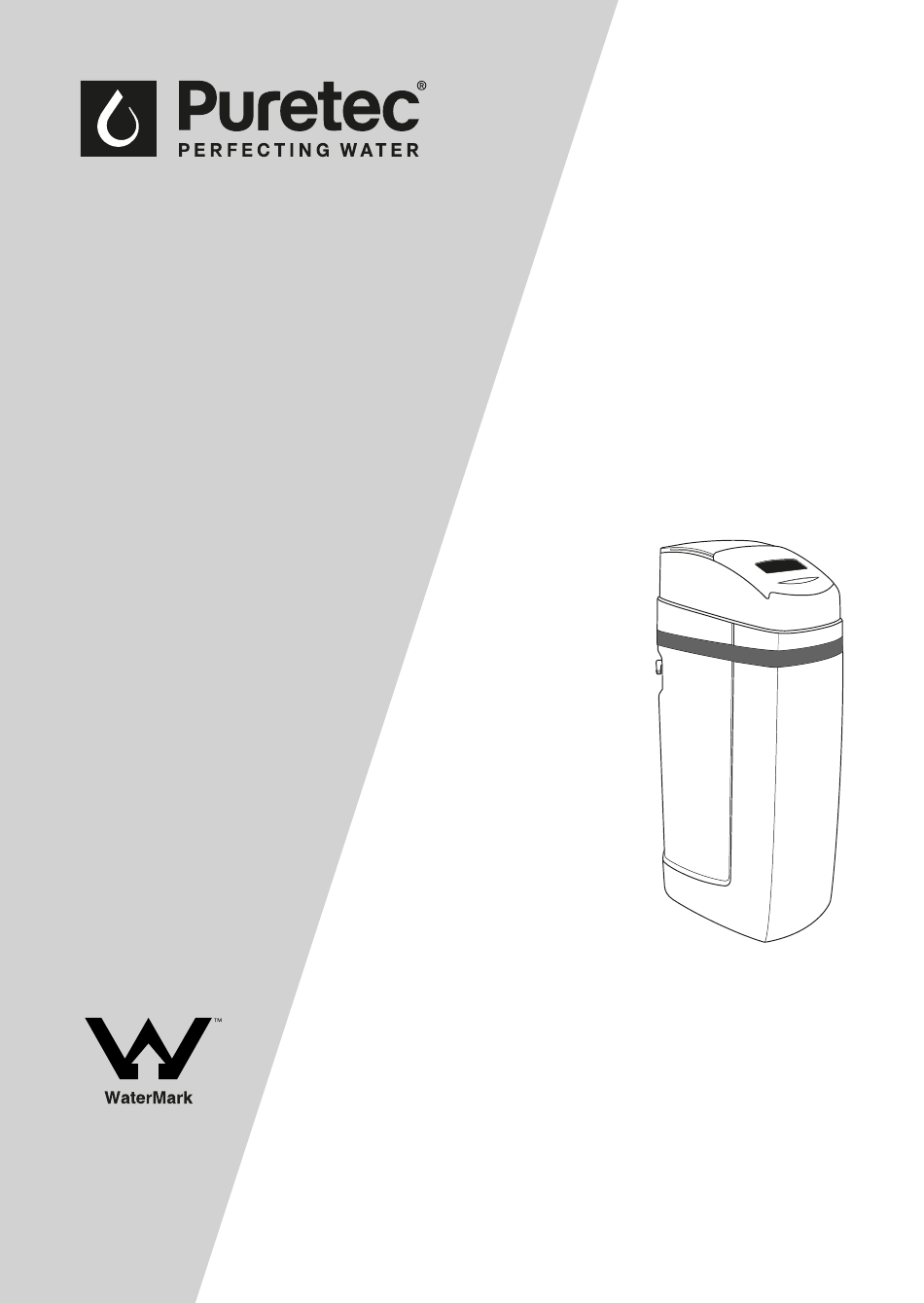

  • Page 1 User Guide SOL-E3 Series ATS5200.103 Licence No. WM 74593 Australian Certification Volumetric Water Softening Appliance Services For correct operation & installation it is essential to observe these instructions. JAN2019...
  • Page 2: Table Of Contents

    Replenishment of Salt Supply ........................17 Type of Salt to Use ............................17 Brine Tank Clean-Out (Yearly) ........................17 Media Replacement ............................17 Bypass Valve Operation - optional accessory .................18 Troubleshooting Guide ..........................19 Warranty ................................23 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 3: Puretec Customer Service

    It will give years of reliability and trouble free operation if maintained properly. This user guide is designed for Puretec SOL-E3 Water Treatment Systems. Be careful to ensure the information and illustration is applicable to your particular unit.
  • Page 4: Installation Record

    ___________ ppm / mg/L Manganese: ___________ ppm / mg/L ___________ TDS (Total Dissolved Salts): ___________ ppm / mg/L Conductivity: ___________ EC / uS/cm Chloride: ___________ ppm / mg/L Sodium: ___________ ppm / mg/L Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 5: Before Installation

    • Install as close as possible to a drain. • Install in correct relationship to other water treatment equipment. Contact Puretec for assistance. • Install the softener in the supply line BEFORE the water heater. Temperatures above 43.3°C (110°F) will damage the softener and void the warranty.
  • Page 6 If lawn sprinklers, a swimming pool, or geothermal heating/cooling or water for other devices/activities are to be treated by the water softener, a larger model MUST be selected to accommodate the higher flow rate plus the backwashing requirements of the water softener. Contact Puretec for assistance. WARNINGS •...
  • Page 7: Specifications

    ⅝” Overflow Connection: ⅝” Width (mm) (W): Height (mm) (H): 1125 Depth (mm) (D): Dry Weight (kg): SOL30-E3 - 29 kg. SOL40-E3 - 37 kg. Maximum salt storage capacity: 150 kg Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 8: Exploded Diagram

    Exploded Diagram Exploded Diagram Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 9: Diagram Identification

    Brine Well Blank KTU6BK Tubing High Pressure 3/8" Black Brine Well Lid WTV3030 Pressure Tank Collar UV Shield Diagram Identification Outlet 1" Inlet 1" ⅜” Brine ⅝” Drain Control Panel Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 10: Installation Procedure

    17 for the type of salt to drain and overflow (refer to be used). page13). Ensure Water Has Been Tested Input values into Table on page 4 and the analysis has been inspected by Puretec. Water Analysis Information Hardness ___________ ppm / mg/L Iron...
  • Page 11 Uninstall the plastic fittings by turning the knob counter Connect the bypass assembly followed clockwise. by the plastic fittings. Hand tighten the knobs, do not overtighten. Refer to page 18 for bypass operation. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 12 Failure to do this could cause heat damage to the fittings. This should be carried out by a qualified tradesman. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 13 6.1 Plug into an uninterrupted electrical outlet. Note: the system transformers are not weather resistant and should be adequately protected. All electrical connections must be connected accordingly to local codes. 6.2 Proceed to ‘Programming’ section. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 14: Programming

    • Number of days between regeneration (1 to 28); or REGEN • ‘OFF’ Press NEXT to go to step 4. Press REGEN to return to previous step. NEXT REGEN CLOCK continued on the next page 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 15 If an extended power outage occurs, then time of day will flash on and off which indicates that time of day should be reset. The system will remember the rest. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 16: Start-Up

    SOL40-E3 15400 7700 5130 3850 3080 E3 Valve (Regeneration Time: 90 mins) This will adjust regeneration automatically once you have entered the correct hardness level in the programming section. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 17: Replenishment Of Salt Supply

    If necessary a pliers can be used to unscrew the nut or cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 18: Bypass Valve Operation - Optional Accessory

    EXITS ENTERS EXITS ENTERS Diagnostic Mode Shut Off Mode SUPPLY WATER IS SHUT OFF SUPPLY WATER SUPPLY WATER FROM THE HOUSE ENTERS EXITS NO WATER EXITS & THE VALVE 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019...
  • Page 19: Troubleshooting Guide

    E. Contact Puretec for assistance. immediate regeneration. Time of day flashes on and off. A. Power outage(s). A. Reset time of day, replace battery (CR2032) and then perform a ‘dry’ reset. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 20 D. Meter not registering/faulty. D. Remove meter and check for rotation or foreign material/replace meter. E. Water quality fluctuation. E. Test water and contact Puretec for assistance. F. No regenerant or low level of regenerant. F. Refill regenerant tank. G. Valve fails to draw regenerant.
  • Page 21 C. Leak from seal/spacer stack assembly. C. Clean/replace spacer stack assembly. D. Piston assembly failure. D. Clean/replace piston assembly. E. Loose/damaged drive cap assembly. E. Tighten/replace drive cap assembly. Copyright © Puretec Pty Ltd 2019 SOL-E3 User Guide...
  • Page 22 D. Incorrect voltage being delivered to valve. D. Check voltage of power source. Perform a 'dry' reset. E. Incorrect programming. E. Contact Puretec for assistance. Error Code - E3 A. Motor failure during regeneration. A. Check motor connections. Perform a 'dry' Control valve motor ran too long and was reset.
  • Page 23: Warranty

    Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.

This manual is also suitable for:

Sol40-e3Sol30-e3
