FilterWall

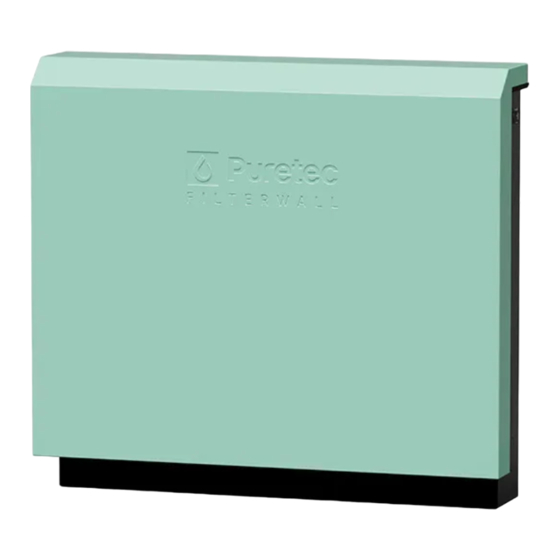

F Series System Maintenance Guide
M A I N S W A T E R

Advertisement

loading
Need help?

Need help?

Do you have a question about the FilterWall F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puretec FilterWall F Series

  • Page 1 FilterWall ™ F Series System Maintenance Guide M A I N S W A T E R...
  • Page 2: Table Of Contents

    Fig. 1 - Parts Diagram, Enclosure & Filter Assembly ..............6 Fig. 2 - Parts Diagram, Exploded View ....................7 Model Information ............................8 Warranty ................................14 AS3497 Licence No. WM 74617 Pro-Switch Pty Ltd Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
  • Page 3: Important Information

    INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE. Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 4: Installation Record

    (filters are blocked with sediment and other containments) or bad taste and odour return. You can obtain replacement cartridges from your local Puretec dealer. To maintain performance standards and system warranty, use only genuine Puretec replacements.
  • Page 5 Check the O-rings for damage and lubrication. If necessary, apply a light coating of food-grade silicone lubricant (or similar). Note: Puretec recommends replacing the O-rings every 3-5 years to ensure the seal remains watertight and prevents any leaks. Replacement O-ring ordering code: MPOR-G Remove all packaging from the cartridges, including any wraps.
  • Page 6 Shut Off Valve Pressure Gauge Shut Off Valve Orientable Outlet Bypass Note: Pressure Limiting Valve & Bypass Assembly not included with F3E & F4E models, see diagram on model information pages. Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
  • Page 7 Housing Bowl Bypass Outlet Sleeve Anchor Inlet Mounting Posts Note: Pressure Limiting Valve & Bypass Assembly not included with F3E & F4E models, see diagram on model information pages. Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 8: Model Information

    Note: Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
  • Page 9 Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 10 Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
  • Page 11 Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 12 Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2024...
  • Page 13 Zealand Plumbing Standards. A 500 kPa pressure limiting device has been included in the FilterWall™ F3, F4, F5 & F6 models (not included with the F3E & F4E models). Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 14: Warranty

    Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
  • Page 15 Copyright © Puretec Pty Ltd 2024 FilterWall™ F Series User Guide...
  • Page 16 JAN2024...
