Puretec K series Operation & Installation Instructions

Puretec K series Operation & Installation Instructions

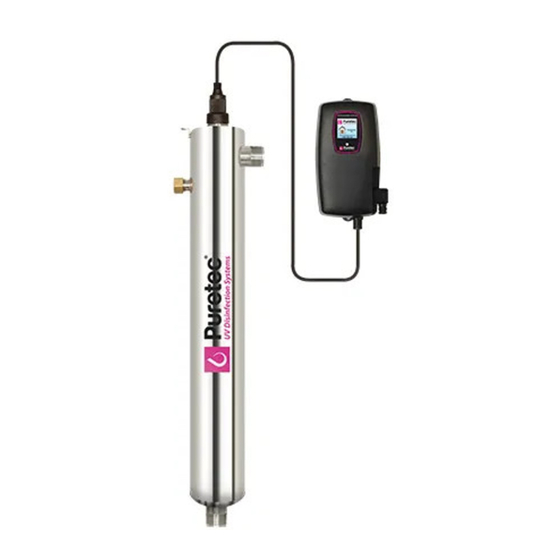

Uv disinfection system

Advertisement

Operation & Installation Instructions
"K" Series
NSF/ANSI Standard 55 Class A
System Tested and Certified by
NSF International against CSA
B483.1 and NSF/ANSI 55
for Disinfection Performance, Class A
C
US
System
Rated Flow
System
RI-6KA
RI-10KA
7.9 gpm
RI-17KA
NSF/ANSI Standard 55 Class B
C
US
Rated Flow
System
RI-6KB
7.9 gpm
13 gpm
www.puretecgroup.com
System Tested and Certified by
NSF International against CSA
B483.1 and NSF/ANSI 55
for Disinfection Performance, Class B
Rated Flow
System
Rated Flow
RI-10KB
22 gpm
22 gpm
RI-17KB
28 gpm
"KM" Series
Puretec - Standard Systems
System
Rated Flow
RI-1K
3 gpm
RI-3K
6 gpm
RI-3K-M
RI-5K
11 gpm
RI-5K-M
RI-6K
15 gpm
RI-6K-M
RI-9K
21 gpm
RI-9K-M
System
Rated
Flow
RI-2K
4.0
RI-2K-M
gpm
RI-4K
10 gpm
RI-4K-M
RI-5.5K
14 gpm
RI-5.5K-M
RI-10K
25 gpm
RI-10K-M
RI-17K
40 gpm
RI-17K-M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puretec K series

  • Page 1 Operation & Installation Instructions “K” Series “KM” Series NSF/ANSI Standard 55 Class A NSF/ANSI Standard 55 Class B Puretec - Standard Systems System Rated Flow System Rated Flow System Tested and Certified by System Tested and Certified by NSF International against CSA...
  • Page 2 This is chemical free process which is simple in its concept and effective in its abilities to inactivate microorganisms present in the water supply. Simple maintenance, continuous disinfection and ultimately safe water, PURETEC makes it that easy. P a g e...
  • Page 3: Table Of Contents

    System Troubleshooting..................18 Temperature Management Devices ................. 20 Expansion Modules ......................20 PURETEC Standard Output System Specifications ............22 PURETEC-HO High Output System Specifications ............. 23 Performance Data Sheet (on all NSF/ANSI Standard 55, Class A Systems) ....... 24 Performance Data Sheet (on all NSF/ANSI Standard 55, Class B Systems) ....... 25 Limited Warranty Statement: ...................
  • Page 4: Safety Considerations

    Safety Considerations Although your UV system has been manufactured to the highest safety standards, care must be followed when operating and/or maintaining your system. 1. Before servicing this equipment, disconnect the power cord from the electrical outlet. 2. Energy given off by the UV lamp is harmful to your eyes and skin.
  • Page 5: Water Quality Parameters

    80% for pre-treatment recommendations) You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a PURETEC UV disin- fection system.
  • Page 6: Assembly

    Assembly Unpack the system and ensure all the components are included with the system. Your system is shipped with the following components: PURETEC (Standard output lamp systems) LAMP KEY GLAND NUT CONTROLLER RI-GNP 5.1/6.1 SYSTEMS O-RING RI-CON1 RI-ORP UV LAMP RL0.5K, fits RI-0.5K series...
  • Page 7 PURETEC-HO (High output lamp systems) LAMP KEY GLAND NUT CONTROLLER RI-GNP 5.1/6.1 SYSTEMS O-RING RI-CON2 RI-ORP (fits all units) UV LAMP RL2K, fits RI-1K series RL4K, fits RI-4K series RL5.5K, fits RI-5.5K series RL10K , fits RI-10K series RL17K, fits RI-17K series...
  • Page 8: System Sizing

    System Sizing All PURETEC UV systems are rated for a specific flow rate in water that meets the quality param- eters on page 5. PLEASE NOTE that increasing the flow above this rating or disinfecting water that does not meet the quality parameters will decrease the dose and therefore compromise the microorganism inactivation.
  • Page 9: Installation

    For water supplies where the maximum flow rate sleeve removal is unknown, a flow restrictor is recommended so that the rated flow of your particular PURETEC system is not exceed- ed. The flow restrictor should be installed on the outlet port of the reactor.
  • Page 10 Step 8: Install the UV sensor (PURETEC systems only). Align the flat portion so it faces the gland nut end and matches up with the half metal lip on the sensor port (see Figure 5). Insert the sensor so it is fully seated and hand tighten the sensor nut.
  • Page 11 Figure 7b. High Output UV Lamp Connection Lamp Connection Step 12: Install the lamp key into the controller (PURETEC , PURETEC systems only). The key always comes packaged with the lamp and sits on the connector. With the key removed from the lamp, orient it so the label is upright and facing you.
  • Page 12: System Disinfection

    Reinstall the filter cartridge into the sump and flush the chlorine solution by opening all faucets until chlorine can no longer be detected. Your home has now been completely dis- infected with your PURETEC UV system ready to inactivate any microorganisms that enter the home.
  • Page 13: Cleaning The Uv Sensor

    Replace sensor following step 9 from the installation section of the manual. Operation PURETEC systems come with a feature laden controller that incorporates both the lamp driver (ballast) and control features in one water-tight case. Four main controllers are available for the PURETEC systems (depending on your model).
  • Page 14: Puretec 4.1 Controllers

    The controllers used in both the PURETEC and PURETEC are identical. The difference is that the PURETEC series of products includes a UV intensity monitor. All PURETEC and PURETEC controllers include an “infinite expandability port” located on the right side of the controller. Simply plug...
  • Page 15: Puretec 5.1 Operational Screens

    On systems without the UV monitor, the default screen shows the PURETEC Home Screen. At any point during operation the user is able to scroll through the PURETEC Home Screen, Lamp life remaining, QR Code, Contact Info and Maintenance Parts screens by pressing the button located on the front of the controller.
  • Page 16: Puretec Operational Screens

    Operational Screens On systems with the UV monitor, the system will display the same screens as on the PURETEC except the UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected by the sensor. UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or sensor, lamp failure or lamp expiring.
  • Page 17: Lamp Replacement (Puretec Systems)

    A QR code (Quick Response code) is a matrix barcode first designed for the automotive industry. PURETEC uses the QR code to store a link to a specific page on our website. Users with a camera phone equipped with the correct reader application can scan the image of the QR code and over a wireless network connect to a PURETEC web page in the phone’s browser.
  • Page 18: System Troubleshooting

    System Troubleshooting Hard Alarms: The following give a constant audible alarm. If present, the solenoid valve is closed, and the 4-20, remote alarm and ethernet modules transmit the alarm. System Display Problem Resolution Reset lamp protection circuit -unplug unit for 10 seconds. The system has detected Replace the lamp with the a problem with the...
  • Page 19 Warning: After any hard alarm, the home or facility should be disinfected. Follow the steps un- der the “System Disinfection” heading. Boil Water Advisory: If any failure occurs on a PURETEC UV system, the water must not be used for human consumption until the system is returned to a safe operational mode.
  • Page 20: Temperature Management Devices

    Temperature Management Devices Your PURETEC UV system is designed to run continuously to ensure optimal disinfection. However, during periods when no water is drawn through the system, the energy from the disinfection process can cause the temperature of the water inside the chamber to rise. In extreme situations elevated water temperature or the fluctuation in temperature can lower the output of the UV lamp.
  • Page 21 SOLENOID CONNECTION MODULE: Connects a NORMALLY CLOSED line voltage solenoid valve to the system. On a non-monitored system, the sole- noid will only close on a lamp failure error. On a monitored system, the solenoid is closed when the UV level drops below 50%. Also note that in cases where emergency use of untreated water is re- quired, the controller can be placed into a manual override mode allowing for the flow of water in an...
  • Page 22: Puretec Standard Output System Specifications

    PURETEC Standard Output System Specifications PURETEC EQUIPMENT SPECIFICATIONS Residential systems (standard output lamps) Multi-Use / RI-3K RI-5K RI-6K RI-9K MODEL RI-0.5K RI-1K RI-3K-M RI-5K-M RI-6K-M RI-9K-M 7.9 gpm NSF Class A Flow Rate 40mJ/cm @ 70% UVT 30 lpm (add “A” suffix on LB6 models) 1.8 m...
  • Page 23: Puretec-Ho High Output System Specifications

    PURETEC-HO High Output System Specifications PURETEC EQUIPMENT SPECIFICATIONS Residential Crossover systems (high output lamps) RI-2K RI-4K RI-5.5K RI-10K RI-17K MODEL RI-2K-M RI-4K-M RI-5.5K-M RI-10K-M RI-17K-M 7.9 gpm 13 gpm NSF Class A Flow Rate 40mJ/cm @ 70% UVT 30 lpm 49 lpm (add “A”...
  • Page 24: Performance Data Sheet (On All Nsf/Ansi Standard 55, Class A Systems)

    Performance Data Sheet (on all NSF/ANSI Standard 55, Class A Systems) System Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 55 for Disinfection Performance, Class A Model RI-6KA RI-10KA RI-17KA NSF Class A Flow Rate 7.9 gpm 7.9 gpm 13 gpm (40mJ/cm...
  • Page 25: Performance Data Sheet (On All Nsf/Ansi Standard 55, Class B Systems)

    Performance Data Sheet (on all NSF/ANSI Standard 55, Class B Systems) System Tested and Certified by NSF International against CSA B483.1 and NSF/ANSI 55 for Disinfection Performance, Class B Model RI-6KB RI-10KB RI-17KB 22 gpm 22 gpm 28 gpm NSF Class B Flow Rate 83 lpm 83 lpm 110 lpm...
  • Page 26: Limited Warranty Statement

    Puretec are subject to the warranty provided by the manufacturer of said products and not by Puretec’s warranty. Puretec will not be liable for damage or wear to products caused by ab- normal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the product was not installed in accordance with Puretec’s printed installation and operating...
  • Page 27 140 140(in Australia) or 0800 130 140 (in New Zealand) to obtain a Warranty Return Authoriza- tion. You will then need to return the product through the Puretec Dealer or Distributor where the product was originally purchased, together with proof of purchase and installation date, failure date, and supporting installation data.
  • Page 28 AUSTRALIA NEW ZEALAND P 1300 140 140 P 0800 130 140 E sales@puretec.com.au E sales@puretec.co.nz W puretecuv.com.au W puretec.co.nz PN#910069 Version Date: 07-2017...
