Hioki PW3198 Measurement Manual

PW3198
POWER QUALITY ANALYZER
Measurement Guide
April 2011 Edition1 Printed in Japan
PW3198A984-00 11-04H
Measurement
(Number indicates
reference step no.)

Procedure

Turn on the instrument.
Perform zero adjustment after 30-min. warm-up.
2
Load settings.
Configure initial
(Load settings file from the SD
settings. memory card. For more information,
see instruction manual.)
Connect the instrument to the measurement line.
3
Verify connections.
4 6
Perform simple Configure settings as
configuration. desired.
5
Verify settings and connections.
7
Start recording.
Stop recording.
Verify that data has been saved and analyze.
Turn off the instrument. (The instrument will be
unavailable for checking or analyzing data.)
8
Analyze data on a computer.
1
Getting
For more information, see
the instruction manual.
ready
After purchasing the instrument
(first time only)
•
Attach the Z1003 Battery Pack to the instrument.
•
Turn on the instrument and set its clock.

Before measurement

-1
Perform the pre-measurement inspection.
-2
Insert an SD memory card into the instrument.
(Be sure to close the cover.)
-3
Connect the AC adapter.
-4
Connect the voltage cords and current sensors.
-5
Turn on the instrument.
4
2
3
5
Thank you for purchasing the HIOKI
PW3198 Power Quality Analyzer.
This guide introduces the PW3198's
basic measurement procedure to
first-time users.
Read First
Before using the instrument, be
sure to read the Instruction manual
carefully.

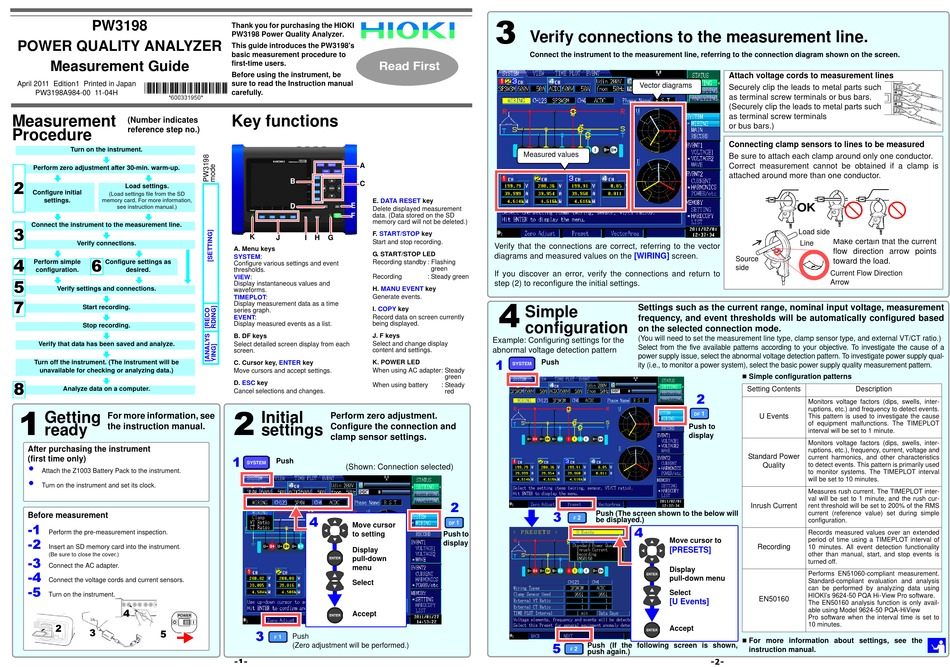

Key functions

A
B
C
E. DATA RESET
D E
Delete displayed measurement
F data. (Data stored on the SD
memory card will not be deleted.)
F. START/STOP
K J I H G
Start and stop recording.
A. Menu keys
G. START/STOP LED
SYSTEM:
Recording standby : Flashing
Configure various settings and event
thresholds.
Recording
VIEW:
Display instantaneous values and
H. MANU EVENT
waveforms.
Generate events.
TIMEPLOT:
Display measurement data as a time
I. COPY key
series graph.
Record data on screen currently
EVENT:
Display measured events as a list. being displayed.
J. F keys
B. DF keys
Select and change display
Select detailed screen display from each
screen. content and settings.
C. Cursor key, ENTER key K. POWER LED
Move cursors and accept settings. When using AC adapter: Steady
D. ESC key
When using battery
Cancel selections and changes.
2
Initial
Perform zero adjustment.
Configure the connection and
settings
clamp sensor settings.
1
Push
(Shown: Connection selected)
4
Move cursor
to setting
Display
pull-down
menu
Select
Accept
3
Push
(Zero adjustment will be performed.)
-1-
3
Verify connections to the measurement line.
Connect the instrument to the measurement line, referring to the connection diagram shown on the screen.
Measured values
key
key
Verify that the connections are correct, referring to the vector
diagrams and measured values on the
green
If you discover an error, verify the connections and return to
: Steady green
step (2) to reconfigure the initial settings.
key
4
Simple
configuration
Example: Configuring settings for the
abnormal voltage detection pattern
1
Push
green
: Steady
red
2
3
Push (The screen shown to the below will
be displayed.)
Push to
display
5
Push (If the following screen is shown,
push again.)
Attach voltage cords to measurement lines
Vector diagrams
Securely clip the leads to metal parts such
as terminal screw terminals or bus bars.
(Securely clip the leads to metal parts such
as terminal screw terminals
or bus bars.)

Connecting clamp sensors to lines to be measured

Be sure to attach each clamp around only one conductor.
Correct measurement cannot be obtained if a clamp is
attached around more than one conductor.
OK
Load side
Line
[WIRING] screen.
Source
side
Settings such as the current range, nominal input voltage, measurement
frequency, and event thresholds will be automatically configured based
on the selected connection mode.
(You will need to set the measurement line type, clamp sensor type, and external VT/CT ratio.)
Select from the five available patterns according to your objective. To investigate the cause of a
power supply issue, select the abnormal voltage detection pattern. To investigate power supply qual-
ity (i.e., to monitor a power system), select the basic power supply quality measurement pattern.

Simple configuration patterns
Setting Contents
2
Monitors voltage factors (dips, swells, inter-
ruptions, etc.) and frequency to detect events.
U Events This pattern is used to investigate the cause
of equipment malfunctions. The TIMEPLOT
Push to
interval will be set to 1 minute.
display
Monitors voltage factors (dips, swells, inter-
ruptions, etc.), frequency, current, voltage and
Standard Power
current harmonics, and other characteristics
Quality to detect events. This pattern is primarily used
to monitor systems. The TIMEPLOT interval
will be set to 10 minutes.
Measures rush current. The TIMEPLOT inter-
val will be set to 1 minute, and the rush cur-
Inrush Current
rent threshold will be set to 200% of the RMS
current (reference value) set during simple
configuration.
4
Records measured values over an extended
period of time using a TIMEPLOT interval of
Move cursor to
Recording 10 minutes. All event detection functionality
[PRESETS]
other than manual, start, and stop events is
turned off.
Display
Performs EN51060-compliant measurement.
pull-down menu
Standard-compliant evaluation and analysis
can be performed by analyzing data using
Select
HIOKI's 9624-50 PQA Hi-View Pro software.
EN50160
[U Events]
The EN50160 analysis function is only avail-
able using Model 9624-50 PQA-HiView
Pro software when the interval time is set to
10 minutes.
Accept
 For more information about settings, see the
instruction manual.
-2-
Make certain that the current
flow direction arrow points
toward the load.
Current Flow Direction
Arrow
Description
