Table of Contents

1.
Copy the firmware update file (pw3390.ver) to the root directory of a CF card or USB memory stick on a PC.
2.
Turn on the PW3390 and insert the CF card or USB memory stick in which the firmware update file was
copied.
The settings will be initialized after the firmware update, so we recommend saving the settings
before the update.
3.
Press [FILE] key, so that the file list is displayed.
In case of using a USB memory stick, press either left or right key of PAGE to display the file list in the USB
memory stick.
4.
Press [Next](F6 key), so that the file list screen will be changed as in below.
PW3390 Firmware Update Procedures

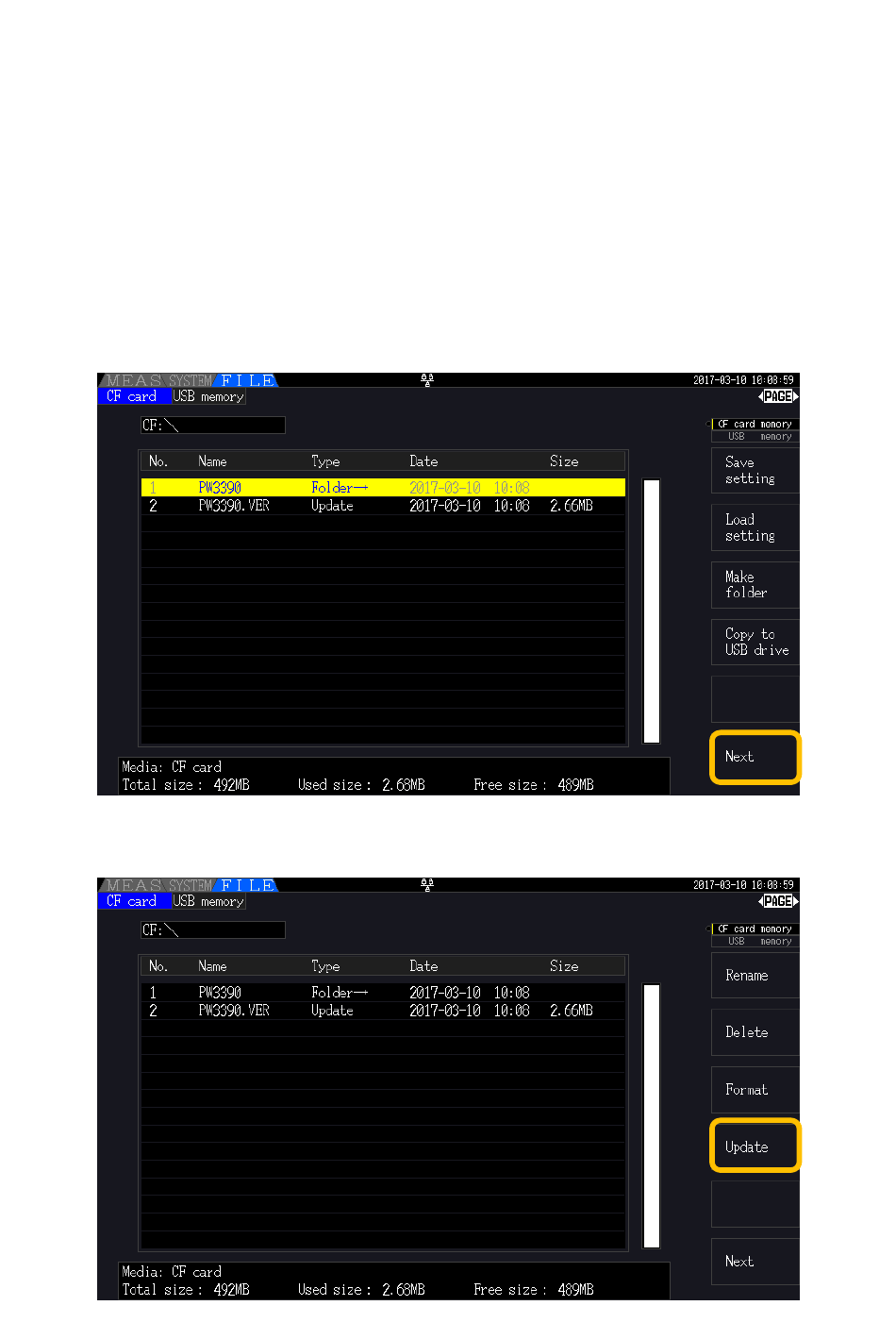

Figure 1.File list screen (1)
Figure 2.File list screen (2)
June 30, 2017
HIOKI E.E. CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW3390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hioki PW3390

Summary of Contents for Hioki PW3390

  • Page 1 HIOKI E.E. CORPORATION Copy the firmware update file (pw3390.ver) to the root directory of a CF card or USB memory stick on a PC. Turn on the PW3390 and insert the CF card or USB memory stick in which the firmware update file was copied.
  • Page 2 [SHIFT], [AUTO(U/I)] and [START/STOP] keys are lit. Do not turn off the power while LEDs are lit. If the update is failed, the unit shall be sent to HIOKI to repair and adjust. Figure 4.Update message screen Update is completed in about 1 minute, and LEDs will be turned off.
