INSTALLATION MANUAL

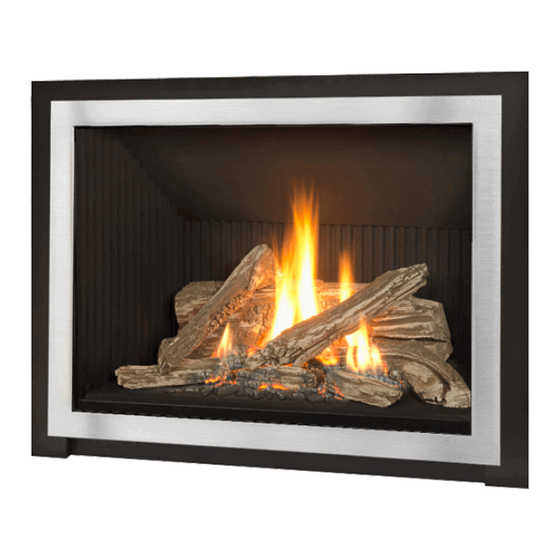

1135TSBE Three Sided Trim with Edgemont Front
Use with Valor 1100 & 1150 Models only
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 1135TSBE trim is intended to be used on Valor heaters models 1100 & 1150. Mounting of the 1135TSBE does
not aff ect clearances or other specifi cations listed in the appliance installation manuals—see installation manual
supplied with the appliance for more information.
Note: Mounting of this trim allows for non-combustible
material up to 3/4" (19 mm) thick installed over top of the
required 1/2" (13 mm) cement board. For thicker fi nishes,
refer to appliance manual.
41-7/8" (1063 mm)
4004430-05
© Copyright Miles Industries Ltd., 2018
H5 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
I NS TA LLE R
Leave this manual
with the appliance.
C ON SUM ER
Retain this manual
for future reference.
Convection baffl e
LH door
Edgemont barrier screen
Overview
1100 or 1150 engine
RH door
Removable panel
Backing plate
assembly
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valor 1135TSBE Three Sided Trim with Edgemont Front
Summary of Contents for Valor 1135TSBE Three Sided Trim with Edgemont Front
- Page 1 The 1135TSBE trim is intended to be used on Valor heaters models 1100 & 1150. Mounting of the 1135TSBE does not aff ect clearances or other specifi cations listed in the appliance installation manuals—see installation manual supplied with the appliance for more information.
-
Page 2: Installation
Installation 3. Slide the removable panel in the clip on the horizontal supports on each side and push it in until 1. On completion of fi replace installation, fi t the con- fl ush with the front trim. vection baffl e to top face of fi rebox with 3 screws. 4. -
Page 3: Maintenance
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com... -
Page 4: Directives D'installation
à risques. La Bordure à trois côtés 1135TSBE est conçue pour être installée sur les foyers Valor 1100 et 1150. L’installation de la 1135TSBE n’aff ecte pas les dégagements et autres spécifi cations indiquées dans le guide d’installation du foyer—consultez le guide d’installation fourni avec le foyer pour plus d’information. - Page 5 Installation 3. Insérez le panneau amovible sous les attaches des supports horizontaux des côtés et poussez le 1. Une fois le foyer installé, fi xez le défl ecteur de panneau jusqu’à ce qu’il soit égal à la surface de la convection à...
-
Page 6: Entretien
Entretien 6. Installez la porte gauche en insérant ses onglets de positionnement dans les fentes situées juste AVERTISSEMENT AVERTISSEMENT derrière le façade de la bordure tel qu’indiqué. NE TOUCHEZ PAS L’ÉCRAN PARE-ÉTINCELLES NE TOUCHEZ PAS L’ÉCRAN PARE-ÉTINCELLES OU LE FOYER LORSQU’ILS SONT CHAUDS! OU LE FOYER LORSQU’ILS SONT CHAUDS! Laissez le foyer refroidir avant de le nettoyer.
