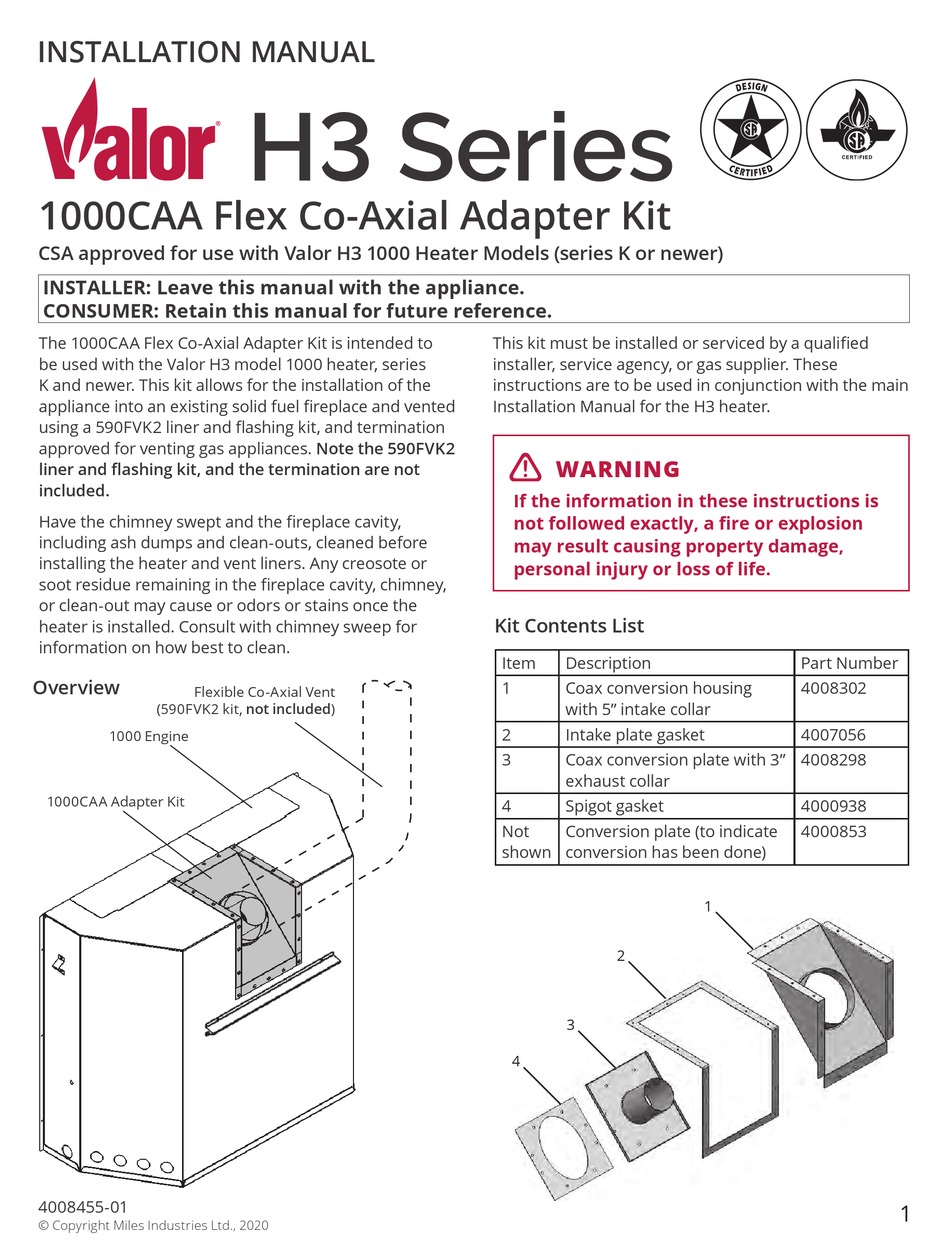

Valor H3 Series Installation Manual

INSTALLATION MANUAL
1000CAA Flex Co-Axial Adapter Kit
CSA approved for use with Valor H3 1000 Heater Models (series K or newer)
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
The 1000CAA Flex Co-Axial Adapter Kit is intended to
be used with the Valor H3 model 1000 heater, series
K and newer. This kit allows for the installation of the
appliance into an existing solid fuel fi replace and vented
using a 590FVK2 liner and fl ashing kit, and termination
approved for venting gas appliances. Note the 590FVK2
liner and fl ashing kit, and the termination are not
included.
Have the chimney swept and the fi replace cavity,
including ash dumps and clean-outs, cleaned before
installing the heater and vent liners. Any creosote or
soot residue remaining in the fi replace cavity, chimney,
or clean-out may cause or odors or stains once the
heater is installed. Consult with chimney sweep for
information on how best to clean.
Overview
Flexible Co-Axial Vent
(590FVK2 kit, not included)
1000 Engine
1000CAA Adapter Kit
4008455-01
© Copyright Miles Industries Ltd., 2020
H3 Series
This kit must be installed or serviced by a qualifi ed
installer, service agency, or gas supplier. These
instructions are to be used in conjunction with the main
Installation Manual for the H3 heater.
WARNING
If the information in these instructions is
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
Kit Contents List
Item Description
1 Coax conversion housing
with 5" intake collar
2 Intake plate gasket
3 Coax conversion plate with 3"
exhaust collar
4 Spigot gasket
Not Conversion plate (to indicate
shown conversion has been done)
2
3
4
Part Number
4008302
4007056
4008298
4000938
4000853
1
1
