Valor L1 Series Installation Instructions Manual

CSA approved for use with Valor Model 1500 and 1600 Heaters ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
41-1/2" (1054 mm)
Trim size
The 1555LFB Linear 1-inch fi nishing trim is designed
to be used on the Linear L1 1500 and L1 2-sided 1600
Valor heaters.
The application of this kit does not affect the venting
capabilities or method of preparation of the 1500 or
1600 heaters as described in the heaters respective
installation manuals.
This trim fi ts fl at against the cement board with the ability
to tuck additional non-combustible materials up to 5/8
inch thickness behind the trim.
DO NOT COVER the trim with any fi nish!
4003003-07
© Copyright Miles Industries Ltd., 2014.
L1 S
1555LFB
Adjustable Finishing Trim
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
ERIES

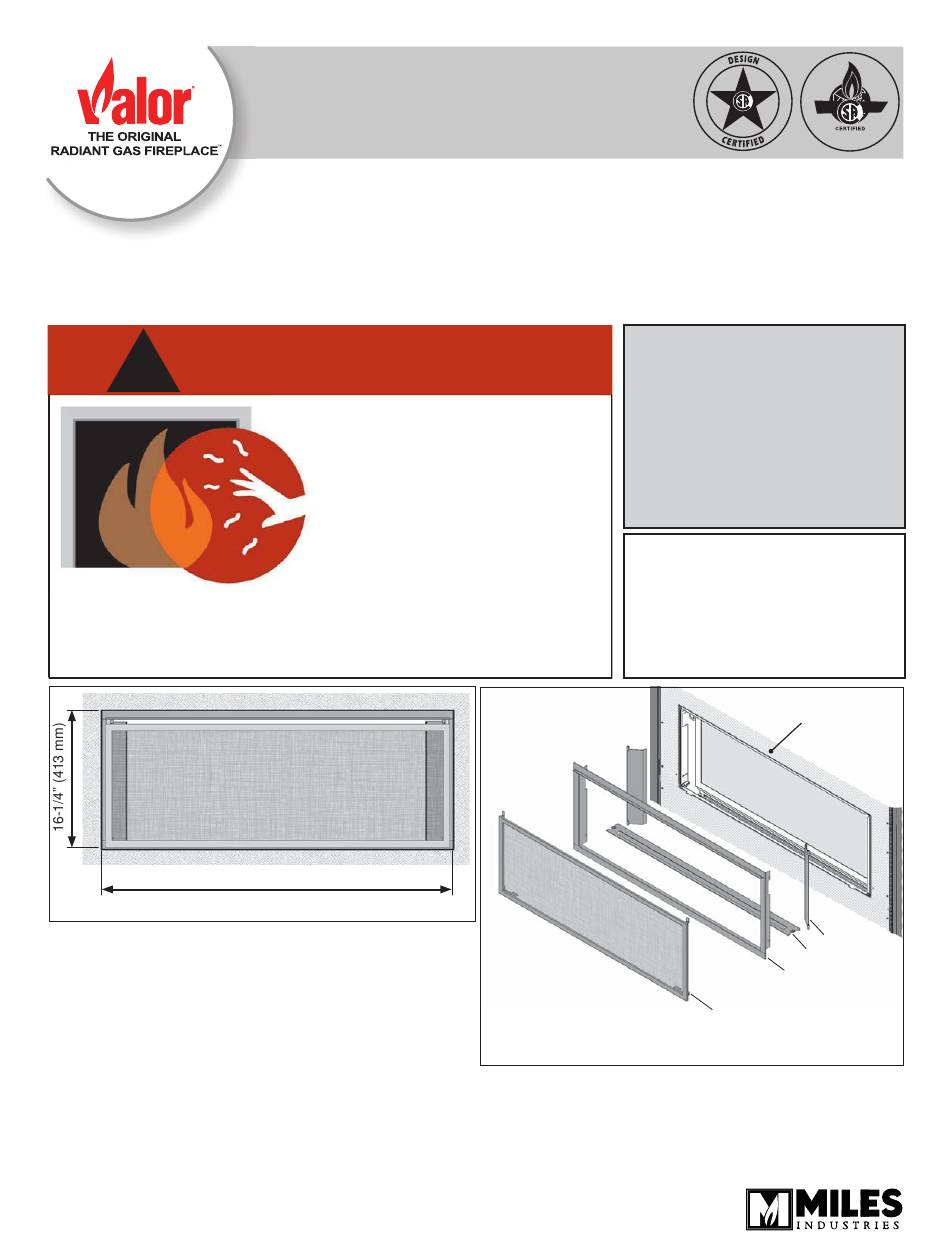

Overview (1500, 1600 engines and 1555LFB sold separately)
IN STA LLER
Leave this manual
with the appliance.
C ON SUM ER
Retain this manual
for future reference.
Note: This kit must be installed
by a qualifi ed installer, service
agency or gas supplier. These
instructions are to be used in
conjunction with the fi replace
main installation instructions.
Non-combustible
cement board
Plinth
Trim
Barrier screen
Side doors
