Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

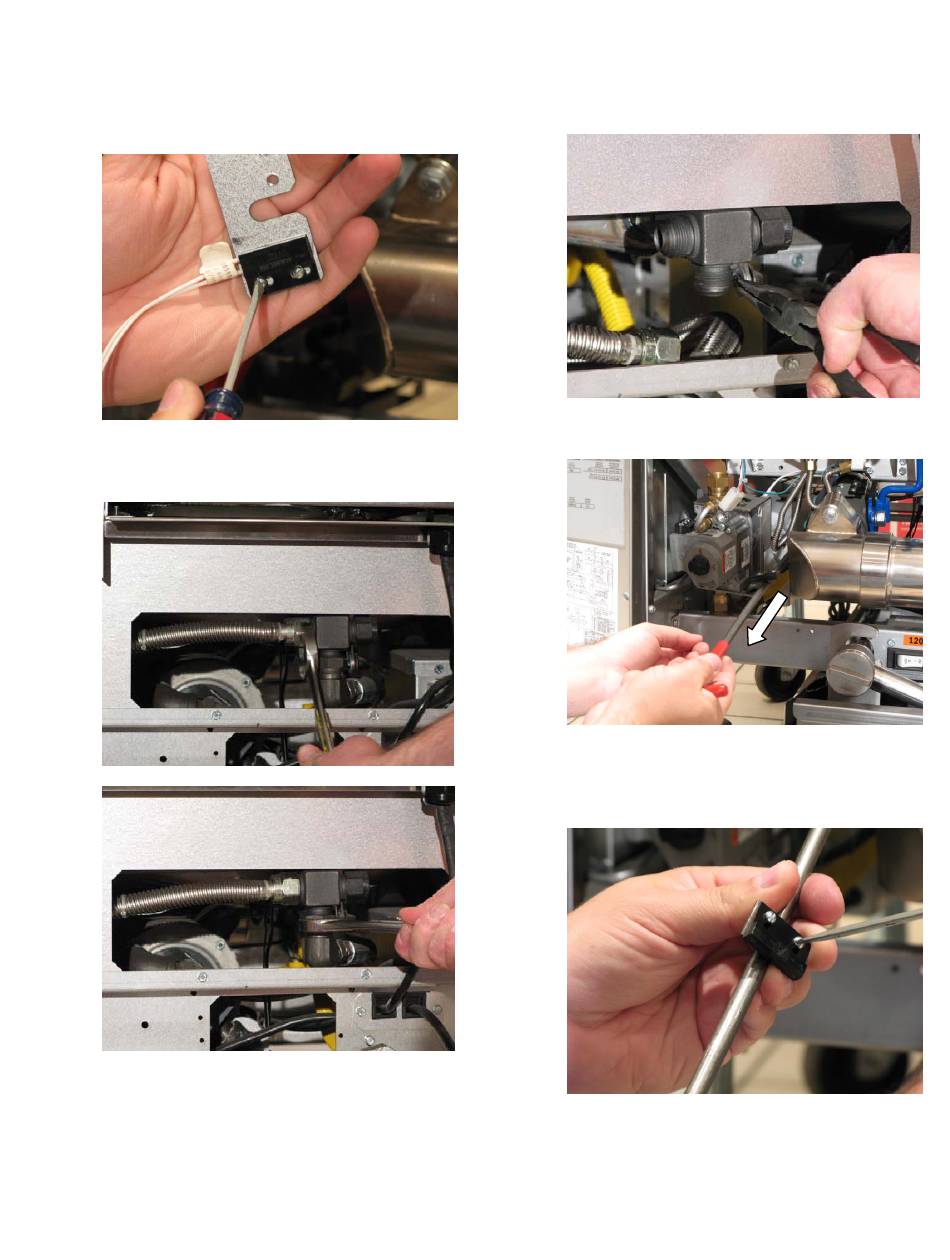

8. Turn the mounting bracket over and remove the
two (2) screws, which hold the actuator, using a
flathead screwdriver.
9. Remove all connections from the 3-way return
valve using a 1/16 inch wrench.

SG/SSH Series Service Manual
10. Remove the cotter pin on return valve using
needle-nose pliers.
11. Pull the red return handle out of the fryer.
12. Remove the two (2) screws, which hold the
magnet on the handle, using a flathead
screwdriver.
13. Reinstall the new return switch by following
steps 1 through 12 in reverse.
73
