Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

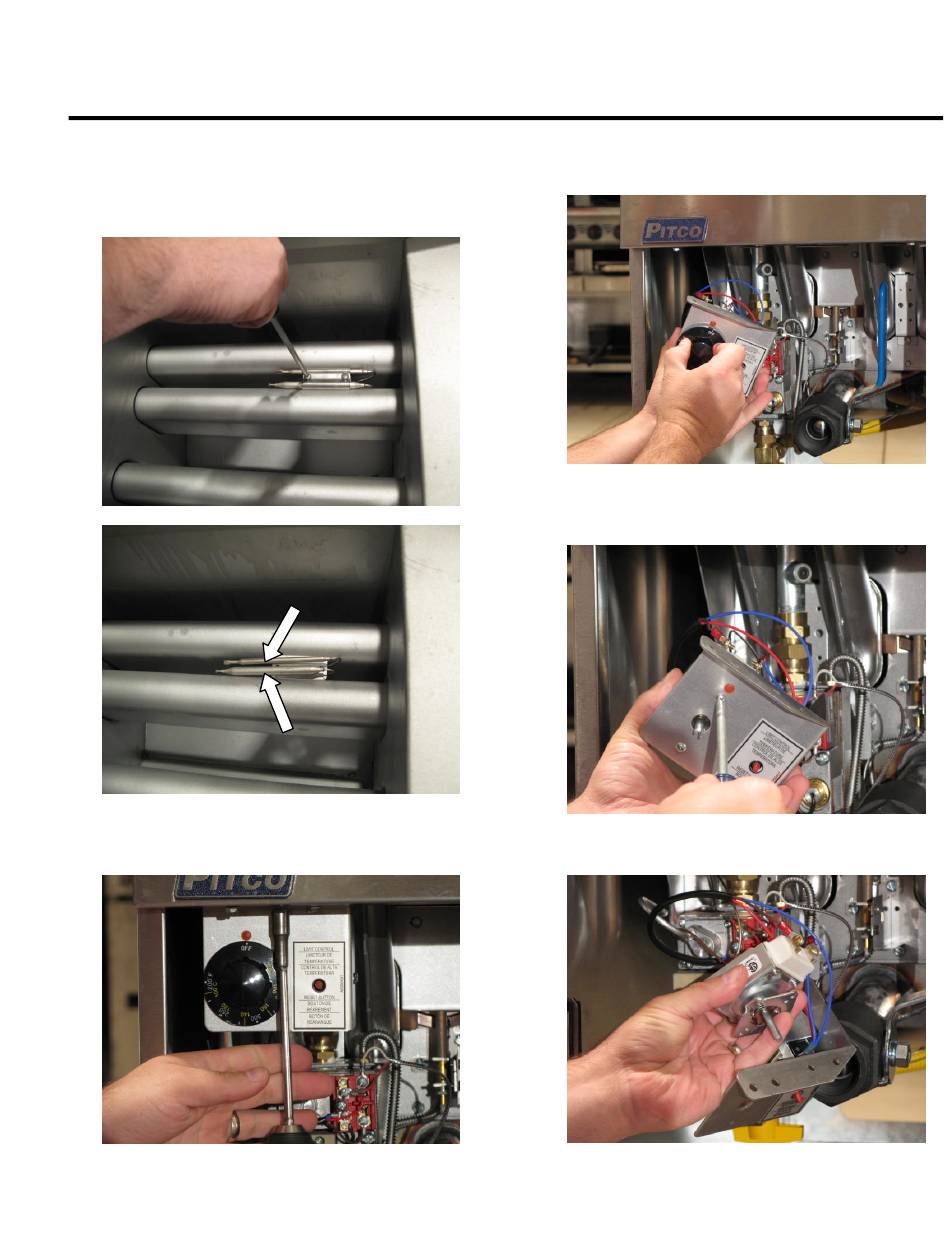

Replacing the Thermostat

1. Remove the two (2) bolt clamp screws that hold

down the temperature probes using a Phillips

screwdriver.

Thermostat

2. Remove the two (2) screws on the thermostat

using a 5/16 inch socket.

SG/SSH Series Service Manual

Hi-Limit

3. Remove the thermostat knob.

4. Remove the two (2) screws that hold the

thermostat using a Phillips screwdriver.

5. Pull out the thermostat.
