Measuring Thermopile; Taking A Millivolt Reading; Adjusting The Thermopile - Pitco SG Series Solstice Service Manual

Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

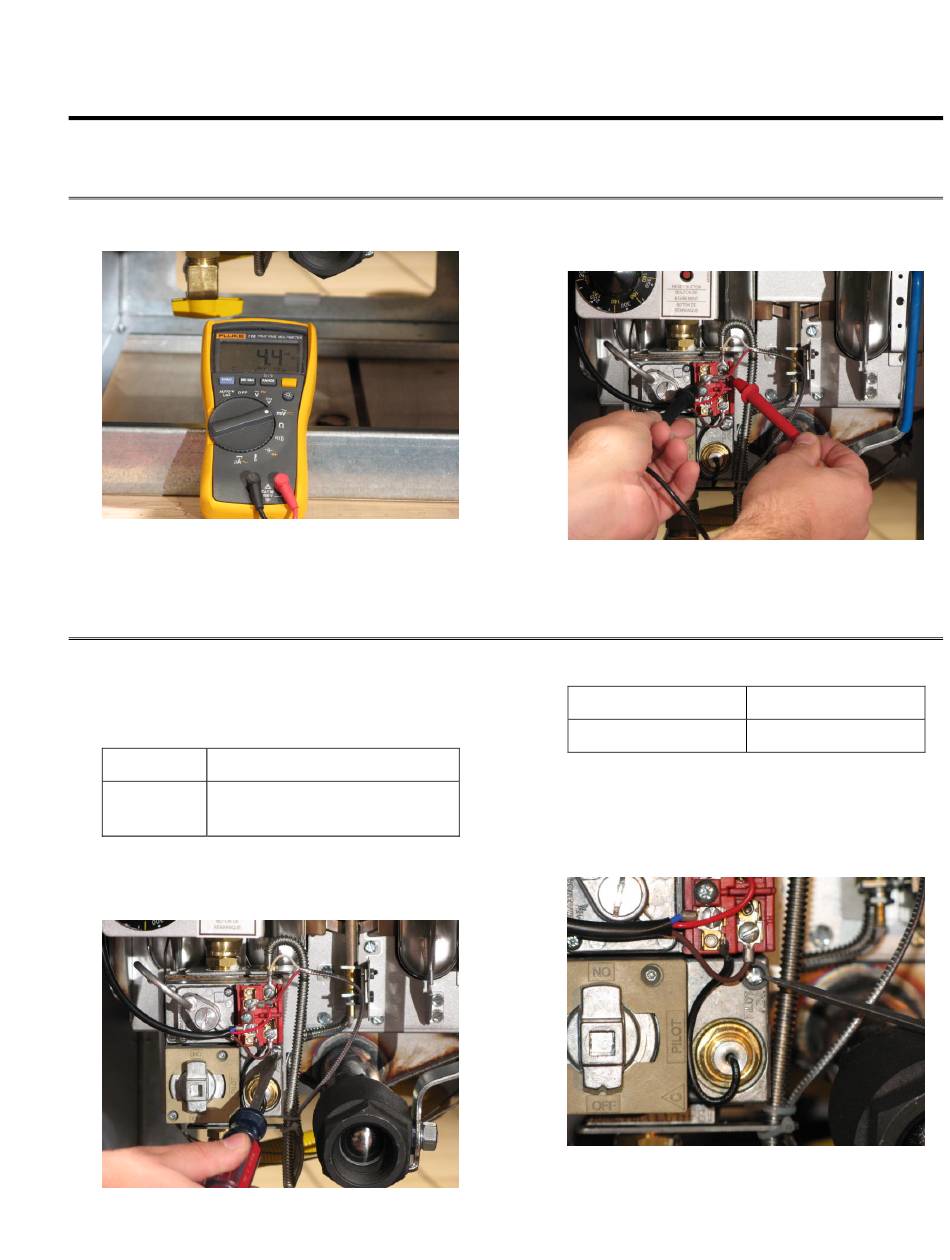

Measuring Thermopile
Taking a Millivolt Reading
1. Make sure the multimeter is set to mV.
Adjusting the Thermopile
1. Compare the multimeter reading to the
Thermopile mV table.
Thermopile mV Table
Pilot lit Pilot lit with burners on
PP1 to PP2 PP2 to TH2 approximately
600± mV 300 mV less than pilot alone
2. Insert a flathead screwdriver into the Pilot Adj.
cap and turn counter-clockwise to remove it.
SG/SSH Series Service Manual
2. Touch the thermopile leads with the multimeter
probes as shown.
mV Gas Valve Resistance Readings Table
Pilot Valve
TH 1 to PP 2 10.4 Ω
3. Insert flathead screwdriver into Pilot Adj. screw
and turn counter-clockwise to increase the mV
pressure or clockwise to decrease the mV
pressure.
4. Disconnect the multimeter.
54
Main Valve
TH 2 to PP 2 2.0 Ω
