Pitco SG Series Solstice Service Manual page 47

Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

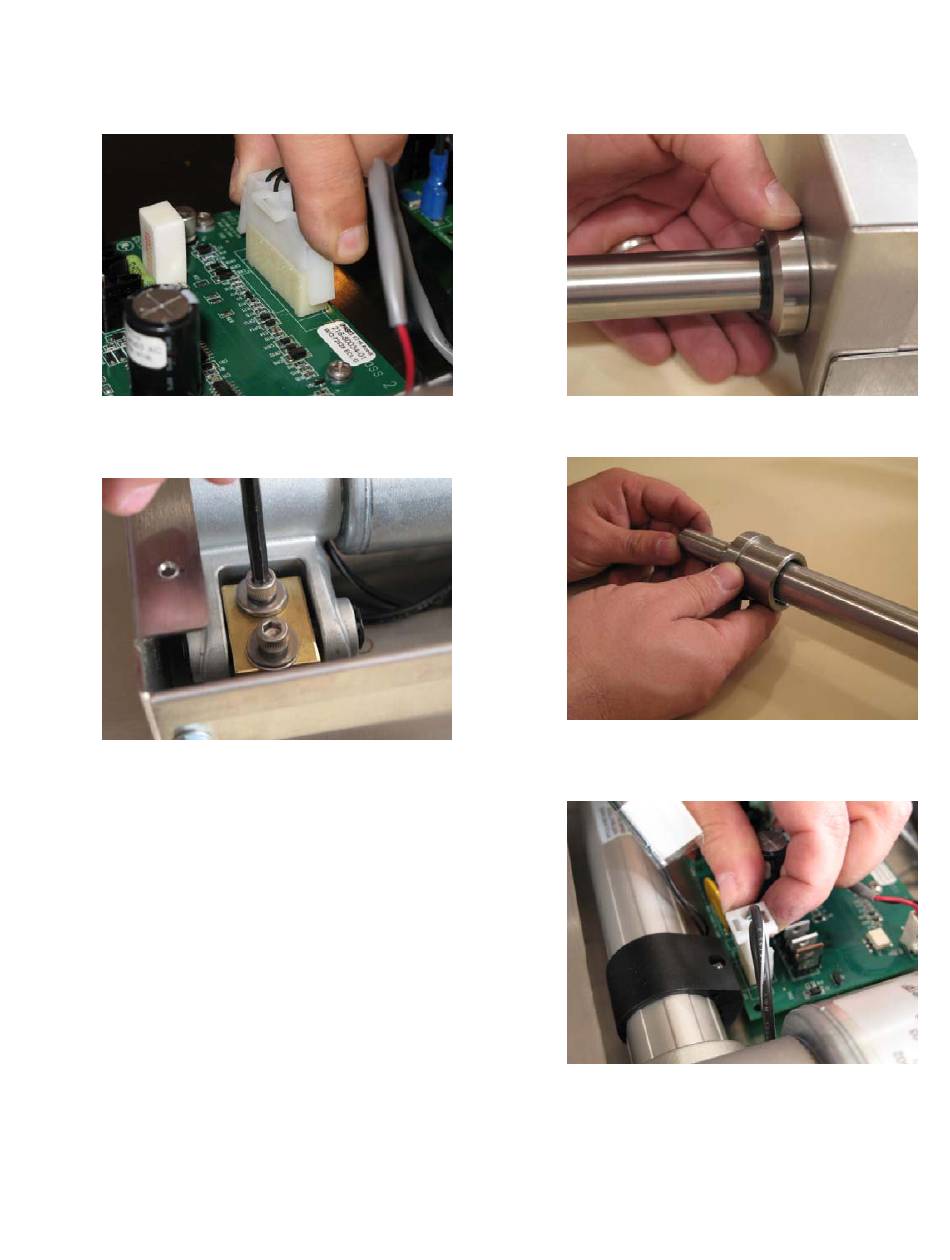

3. Disconnect the upper and lower limit
connections on the basket lift driver board.
4. Remove the two (2) bolts, which hold the
actuator, using a 3/16 inch Allen key.
SG/SSH Series Service Manual
5. Remove the top retaining bushing by
unscrewing.
6. Slide the bushing off the shaft.
7. Disconnect the motor connector from the driver
board.
47
