Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers
Replacing the Basket Lift Driver Board

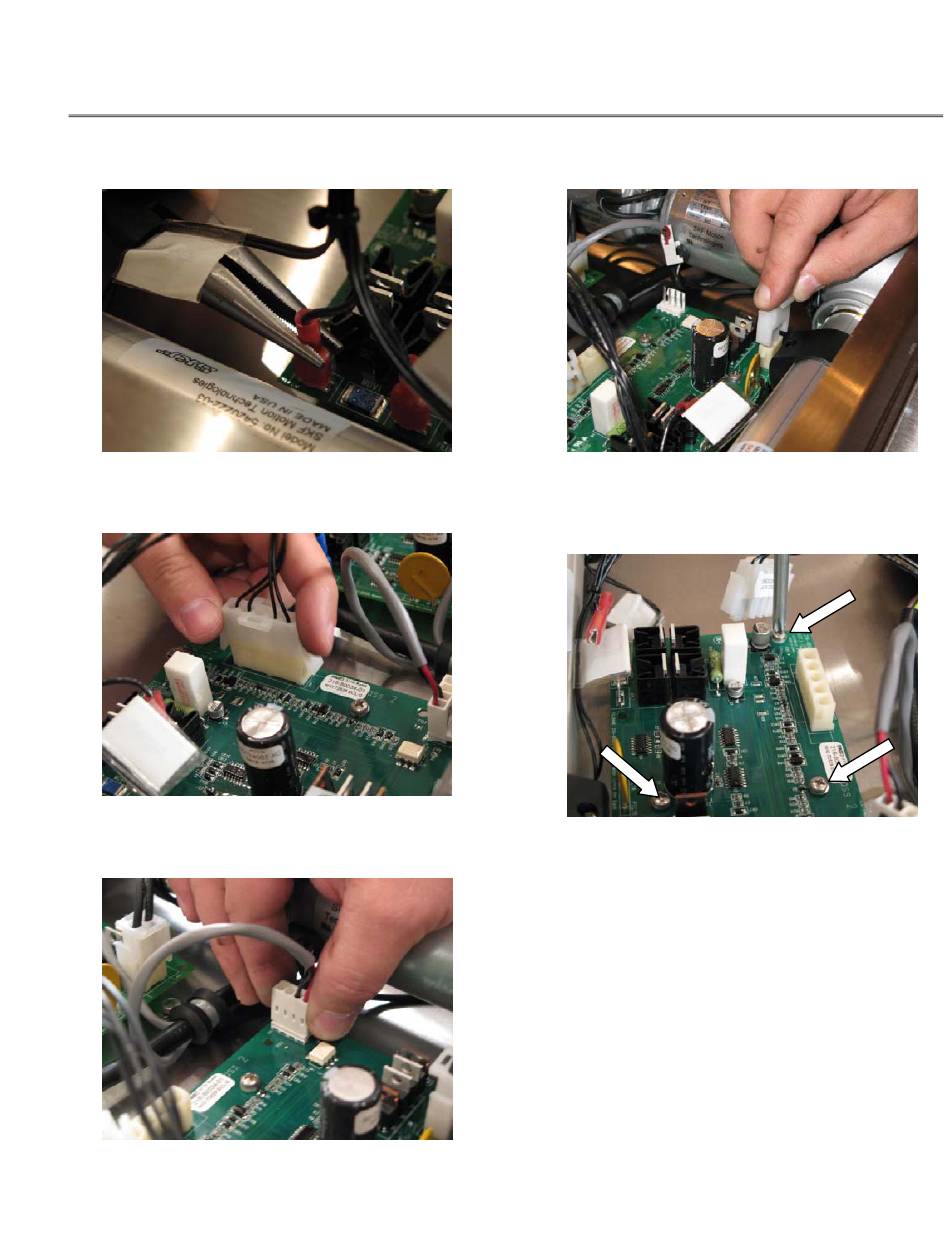

1. Remove all wires on basket lift driver board
using needle-nose pliers.
2. Remove the sensor connection using needle-
nose pliers.
3. Remove the control signal connection using
needle-nose pliers.
SG/SSH Series Service Manual
4. Remove the actuator power connection using
needle-nose pliers.
5. Remove the four (4) screws, which hold the
basket lift driver board, using a Phillips
screwdriver.
6. Follow steps 1 through 5 in reverse to reinstall a
new basket lift driver board.
45
