Pitco SG Series Solstice Service Manual page 43

Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

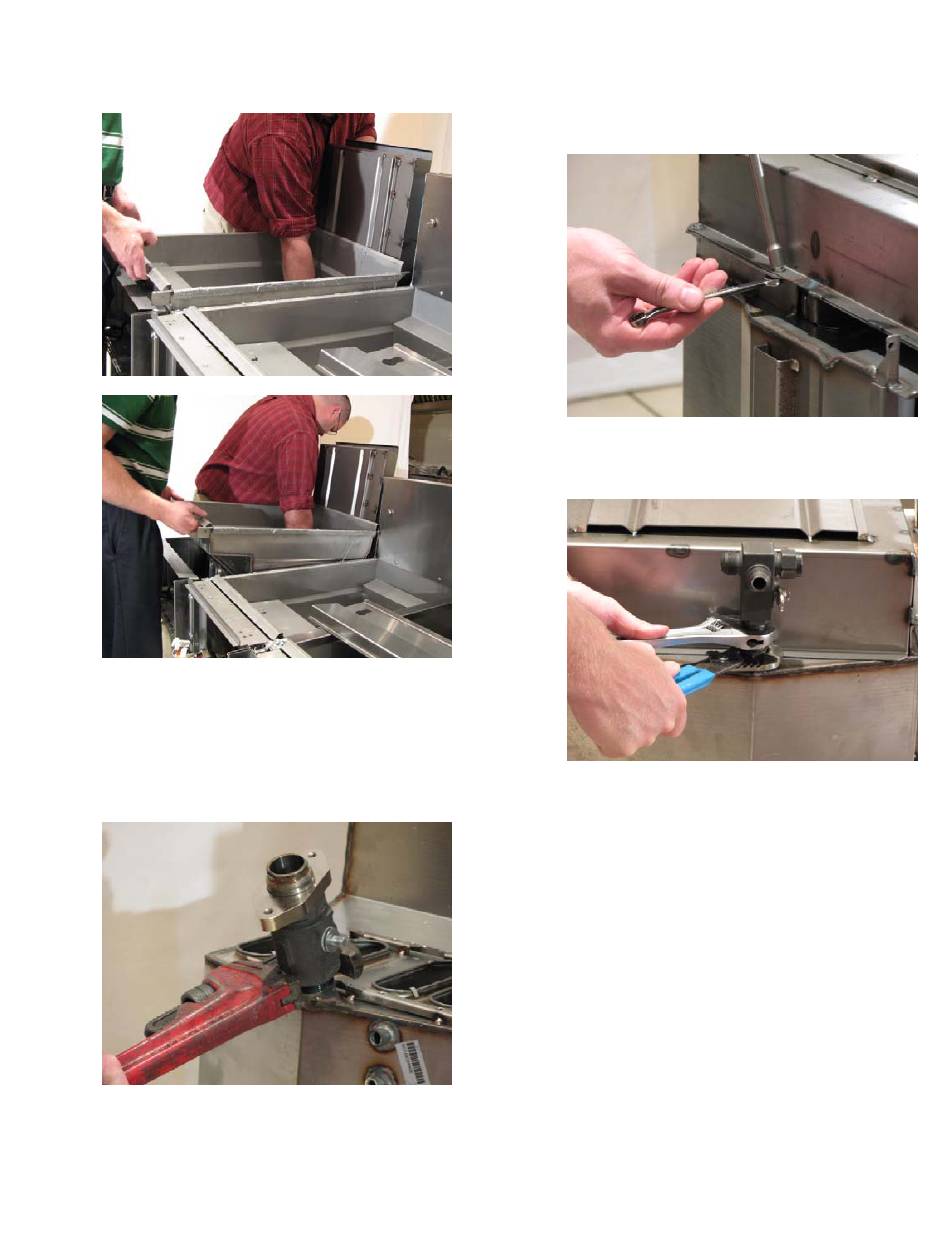

20. Lift up and pull out the tank.
NOTE: Lifting the tank requires two (2)
technicians.
21. Set tank on floor.
22. Remove the drain line using a pipe wrench.
SG/SSH Series Service Manual
23. Remove the four (4) screws, which hold the flue,
using a 5/16 inch socket and 3/8 inch close-
ended wrench.
24. Remove the return valve using two adjustable
wrenches.
25. Follow steps 1 through 24 in reverse to reinstall
a new frypot.
43
