Pitco Solstice and Solstice Supreme High Efficiency Gas Fryers

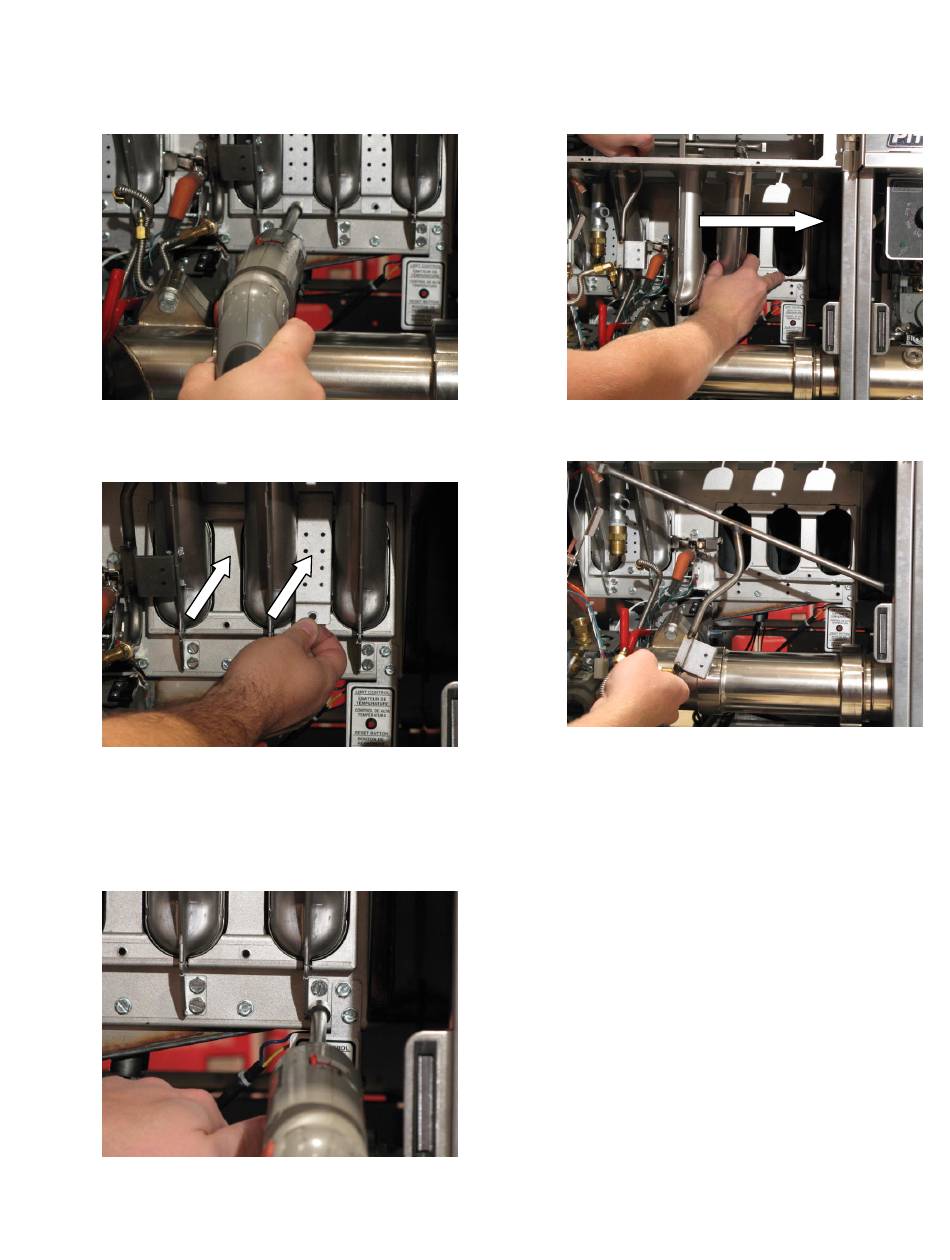

6. Remove the screws, which hold the flame
jumper shields, using a 5/16 inch socket.
7. Remove the flame jumper shields on both sides
of the burner.
8. Remove the two (2) screws, which hold the SCB
runner tube, using a 5/16 inch socket.
9. Remove the two (2) screws, which hold each
burner, using a 5/16 inch socket.
SG/SSH Series Service Manual
10. Remove the right burner(s) by sliding them off
the SCB runner tube.
11. Remove the SCB runner tube.
12. Remove the left burner(s) by sliding them off
the SCB runner tube.
13. Reinstall the new burner(s) by following steps 1
through 12 in reverse.
