Replacing the Burner Assembly
Replacing the Burner(s)

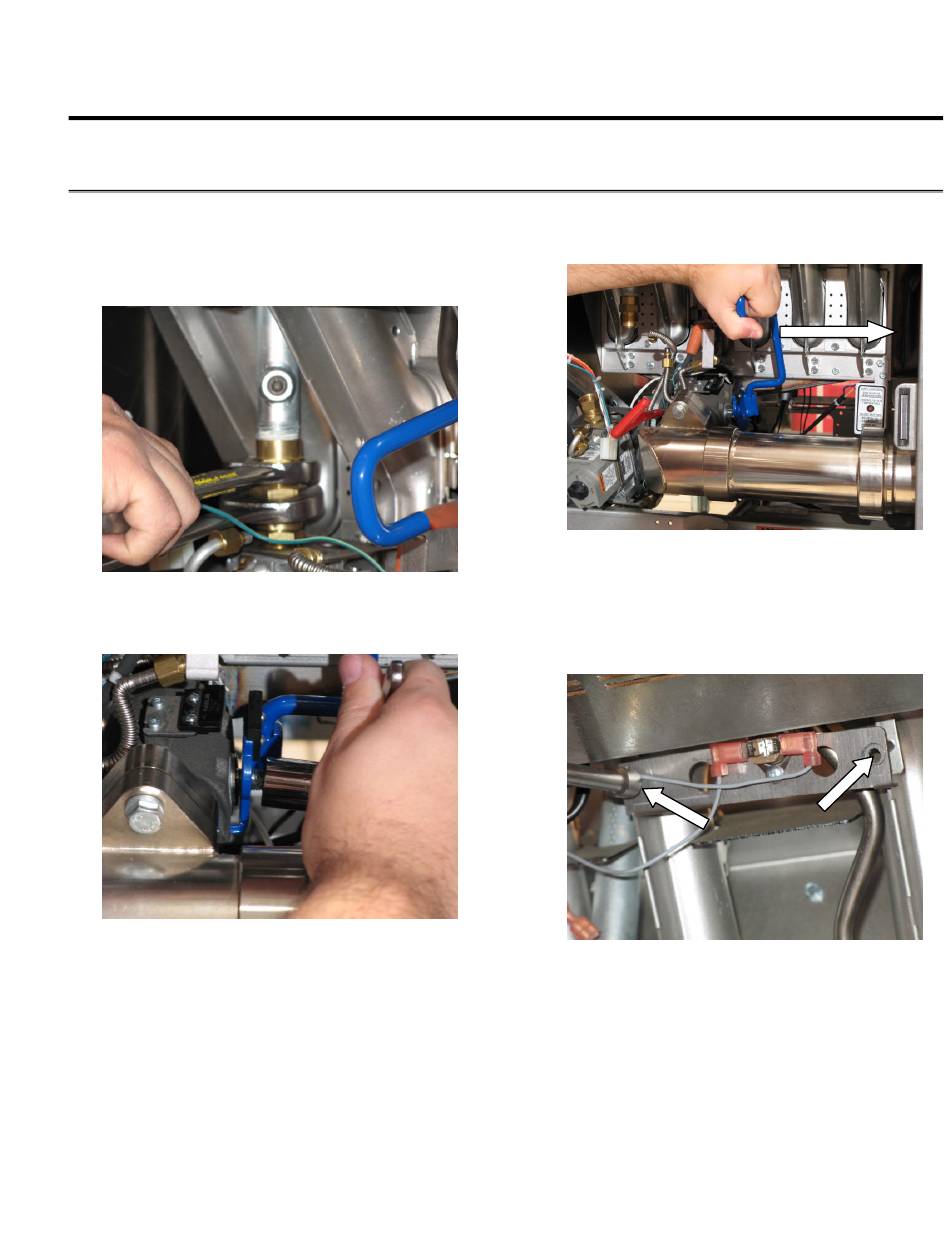

1. Drop the gas valve out of the way by holding the
elbow with a wrench and removing the swivel
nut on the top gas valve fitting using a
15/16 inch open-ended wrench.
2. Remove the nut, which holds the drain valve
handle, using an 11/16 inch socket.
NOTE: Hold the drain valve handle when
removing the nut to ensure that the
oil does not drain out.
SG/SSH Series Service Manual
3. Remove the drain valve handle by sliding handle
off the stem.
4. Remove the pilot assembly. See "Replacing an
Igniter/Pilot Assembly" on page 28.
5. Remove the two (2) screws, which hold the
rollout switch, using a 5/16 inch socket.
36
